Carburetor and Fuel Pump
90-8M0065421 NOVEMBER 2012 Page 3A-15
11. Secure the choke cable with the J‑clamp and the washer and bolt.
a - J‑clamp
b - Washer and bolt
securing choke cable
c - Fuel pump inlet hose
d - Fuel shutoff valve
e - Fuel shutoff valve
knob
f - Fuel pump outlet
hose
g - Bracket

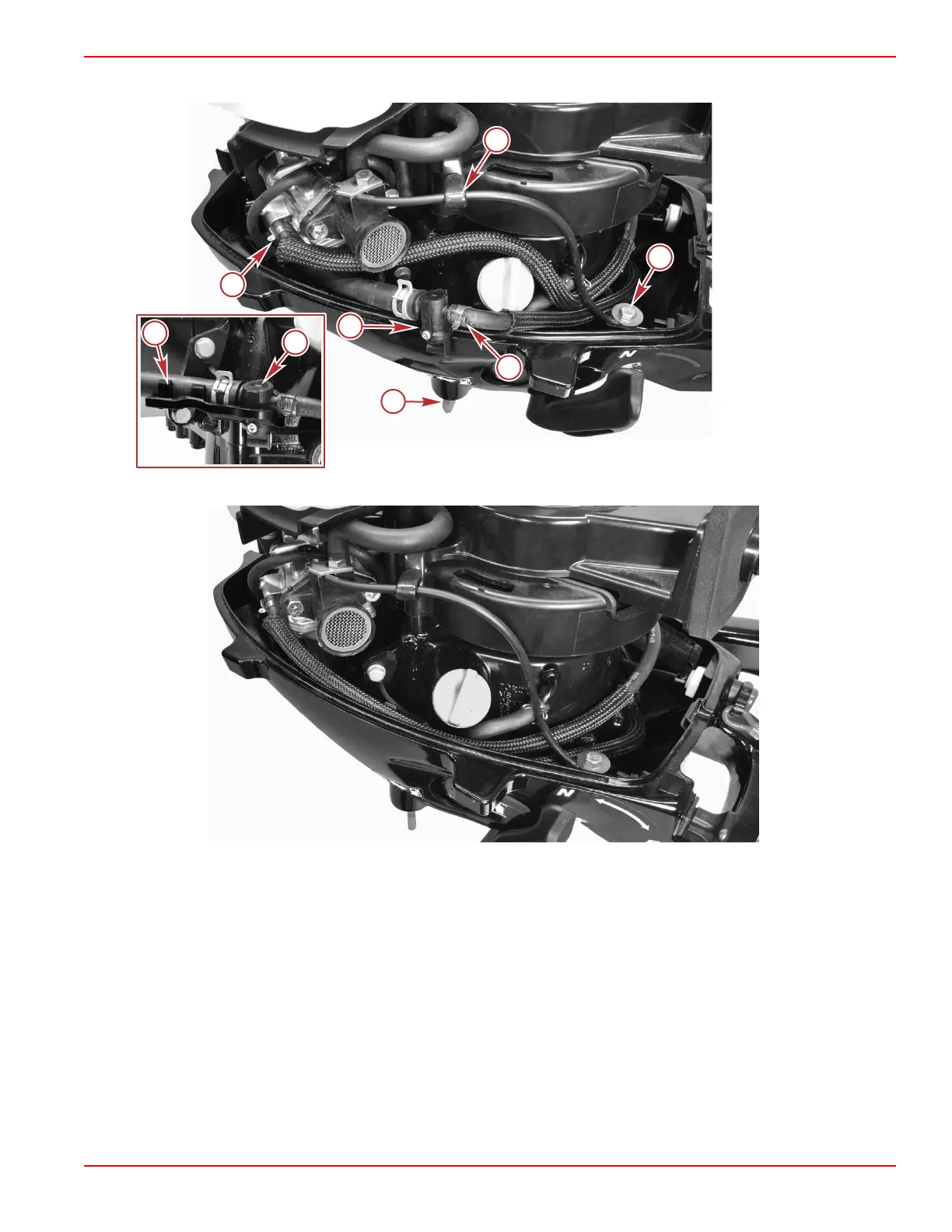

12. Route the fuel hoses as shown.
49932
49878
f
c
e
d
a
b
e
g
