Section 1 - Getting to Know Your Power Package
Page 8 90-8M0113925 eng DECEMBER 2015

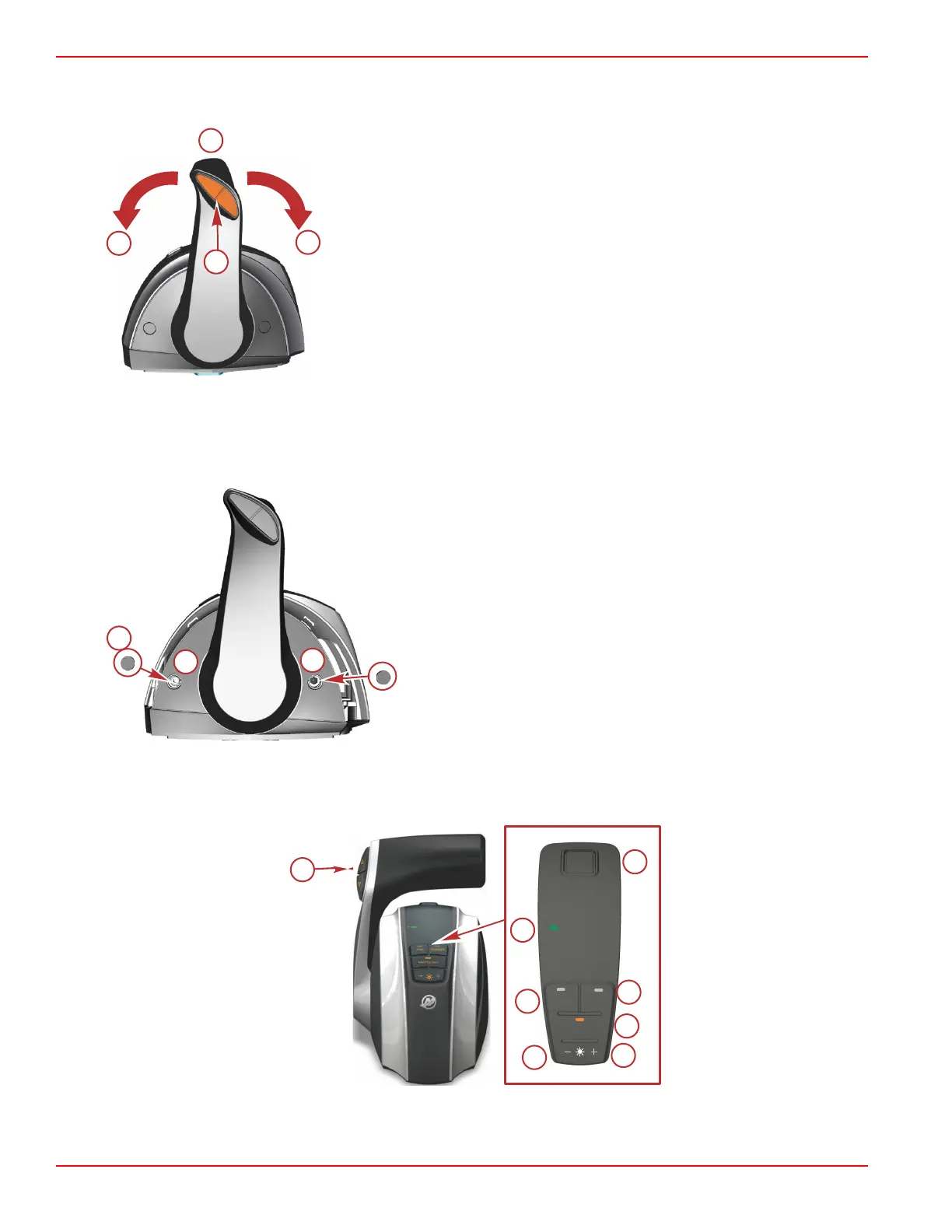

2. Trim Switch (if equipped) ‑ When the power trim switch is activated on the ERC handle, the DTS command module senses
a closed circuit for either up or down trim. The DTS command module formulates a signal and sends it to the PCM. The
PCM closes the ground circuit to the up or down trim relay.
a - Forward
b - Neutral
c - Reverse
d - Trim switch
3. Detent tension adjustment screw ‑ This screw can be adjusted to increase or decrease the effort to move control handle
out of detent positions. Turning screw clockwise will increase tension. Adjust to tension desired.
4. Control handle tension adjustment screw ‑ This screw can be adjusted to increase or decrease the tension on the control
handle. This will help prevent unwanted motion of the remote control handle in rough water. Turn screw clockwise to
increase tension and counterclockwise to decrease tension. Adjust to tension desired.
a - Caps (2)
b - Detent tension adjustment
c - Control handle tension adjustment
NOTE: The control handle tension and detent tension screws may require periodic maintenance adjustment.
Special Digital Throttle and Shift (DTS) Features
The DTS system features several alternate operational modes for the electronic remote control (ERC) levers.
a
STOP/
START
THROTTLE - ONLY
DOCK TRANSFER
N
Slim binnacle ERC
