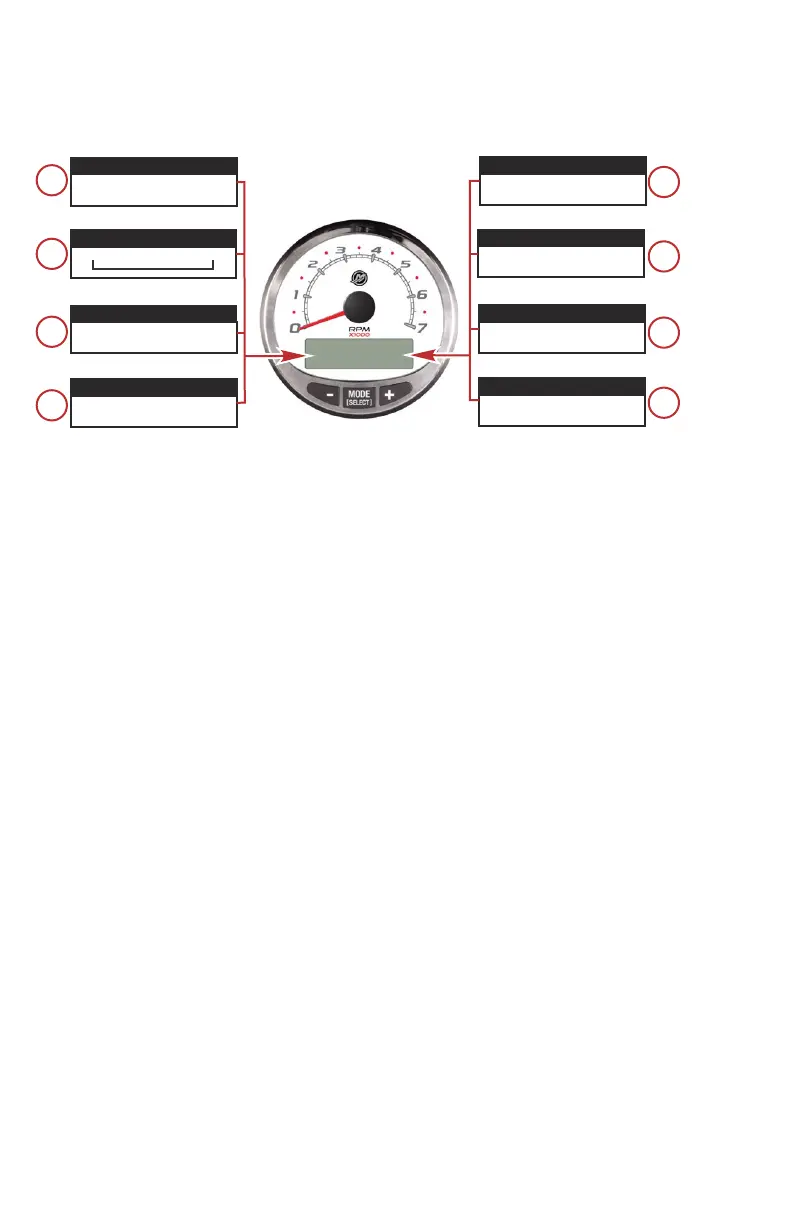

NOTE: Depending on the engine model and vessel options, not all screens will
apply.
FAULT
BATTERY
FAULT
FAULT
FAULT
FAULT
FAULT
SENSOR
WATER TEMP
OIL TEMP
46353
ENGINE
DATA BUS
IGNITION
NO STARBOARD
ENGINE
MULTIPLE STARBOARD
ENGINE
8V 18V
9.
FAULT ‑ IGNITION: A problem has developed in the ignition system.
10.
BATTERY: The electrical system is not charging or the battery charge is
low.
11.
ENGINE DATA BUS: The data communication link between the
tachometer and engine is not connected.
12.
FAULT ‑ SENSOR: One of the sensors is not functioning correctly.
13.
FAULT ‑ WATER TEMP: The sensor for measuring outside lake/seawater
temperature is not functioning correctly.
14.
FAULT ‑ NO STARBOARD ENGINE: The instrument does not detect the
starboard engine computer. This usually indicates that no data is being
transferred from the engine's computer to the gauge. Check the wiring.
Make sure both terminator resistors are installed in the bus. Make sure
the PCM/ECM's are not configured for the same location using computer
diagnostic system (CDS).
15.
FAULT ‑ MULTIPLE STARBOARD ENGINE: SmartCraft gauges are
recognizing multiple engines as starboard.
NOTE: In multiple engine applications, each engine must be assigned a
position (starboard, port, starboard2, or port2) by an authorized dealer before
the system will function properly.
16.
FAULT ‑ OIL TEMP: The engine oil is overheating.
