TROLLING MOTOR INSTALLATION AND OPERATION
11

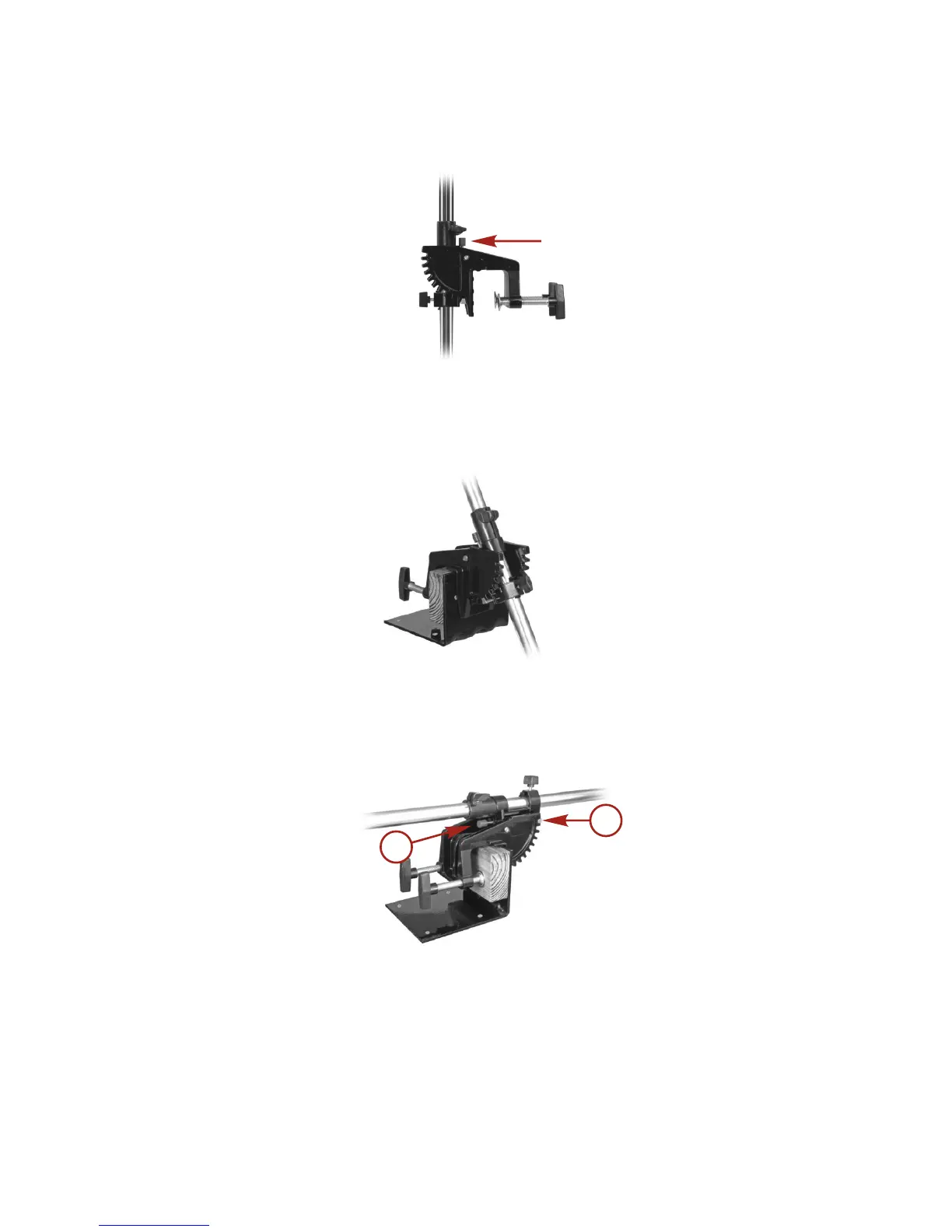

1. Firmly grasp the column and press down on the tilt‑positioning
pin.
37852
Tilt‑positioning pin
2. Pull back on the column while simultaneously pressing down on
the tilt‑positioning pin to reach the desired angle.
37986
Angled position
3. Release the tilt‑positioning pin. Verify that the latch pin is securely
engaged.
a
b
37933
a - Tilt‑positioning pin
b - Latch pin
