Section 5 - Screen Navigation
Page 40 90-8M0074777 eng MAY 2013
Smart Tow Targets

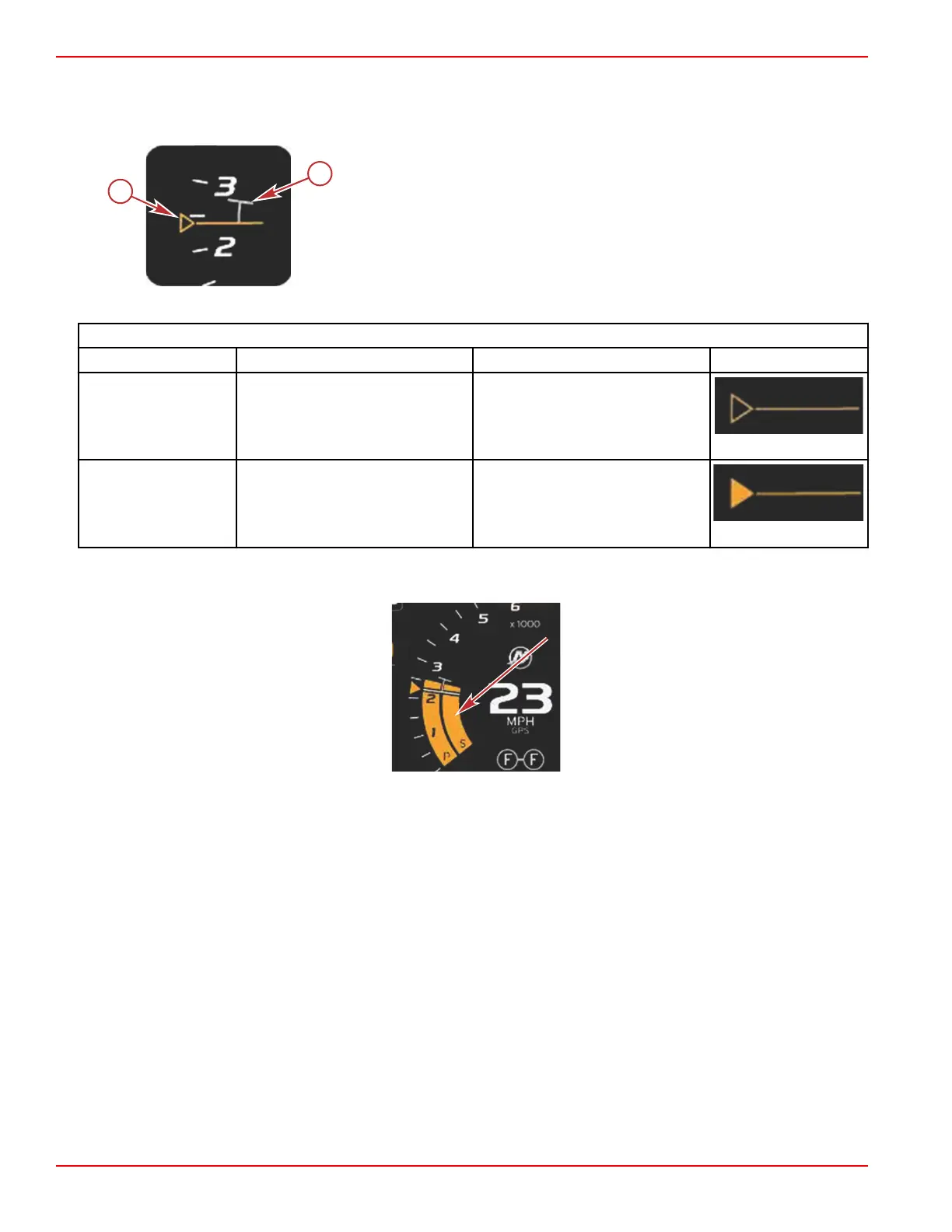

Smart Tow will modify the persistent data area by incorporating RPM and overshoot indicators within the RPM sweeps. The
RPM set point target will be the color orange and the overshoot scale will be the color white.
a - RPM set point target
b - Overshoot scale
The RPM set point target will change from and outline when not active, to a solid when activated.
RPM set point target
State Color File value Image
Set‑up point Orange Outline
Active Orange Solid
When Smart Tow is not active, the RPM sweep display is white. Smart Tow will modify the color of the RPM sweep display to
orange when active.
Active RPM sweep display color orange
Smart Tow Overview Panel
Smart Tow will display an overview panel before launching Smart Tow for the first time. This screen will remain visible for a
short time. The overview panel provides instructions on how to navigate the Smart Tow screen. You can either hide help,
continue, or exit out of the Smart Tow feature from this screen.
• When HIDE HELP is chosen, the help screen will not appear during the next launch cycle and the system will continue to
launch the Smart Tow default contextual screen.
