Section 5 - Screen Navigation
Page 42 90-8M0074777 eng MAY 2013
Profile selection allows you to select from the five factory preset profiles and any custom settings you have created. Custom
settings can be modified and will default to the last known settings.

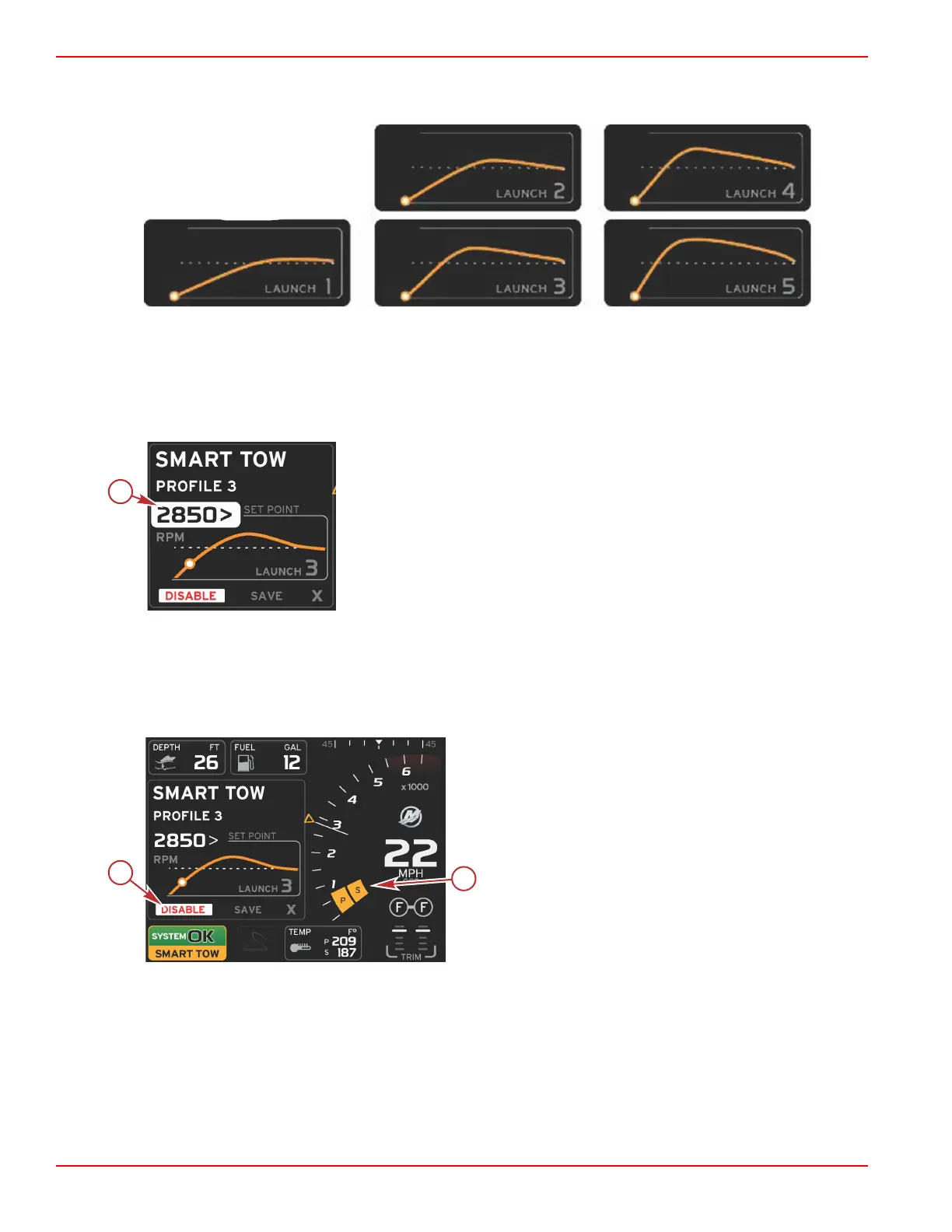

Factory preset profiles
The set‑point value will allow the operator to adjust the RPM or speed set‑point. These will default to 10 mph or 1700 RPM until
the operator uses the QUICK SAVE option to override the default values.
• Set‑point is the default selection when Smart Tow is active. The operator can adjust the RPM or speed by pressing the
contextual data screen area.
a - Set‑point default selection
After making adjustments to the desired settings, press the selection in the footer area of the contextual data area.
• Enable or disable turns the feature on or off. The persistent data RPM sweeps will be displayed as non‑active white
sweeps. The operator can modify all settings when the system is in the off (disabled) state.
a. Enabled (on) is green when active
b. Disabled (off) is red when not active
a - Not active – red
b - Normal RPM sweep displayed when mph mode is
selected
• Press SAVE. Save will modify the Smart Tow screen to allow the operator to choose quick save, save as new, or create
custom.
• If the operator presses on the X, Smart Tow is disabled and the persistent and contextual area returns to the default
screen.
Save
When the operator selects save, the contextual data box will transition to the save options. Quick save is the default selection.
