Section 5 - Screen Navigation
90-8M0074777 eng MAY 2013 Page 41

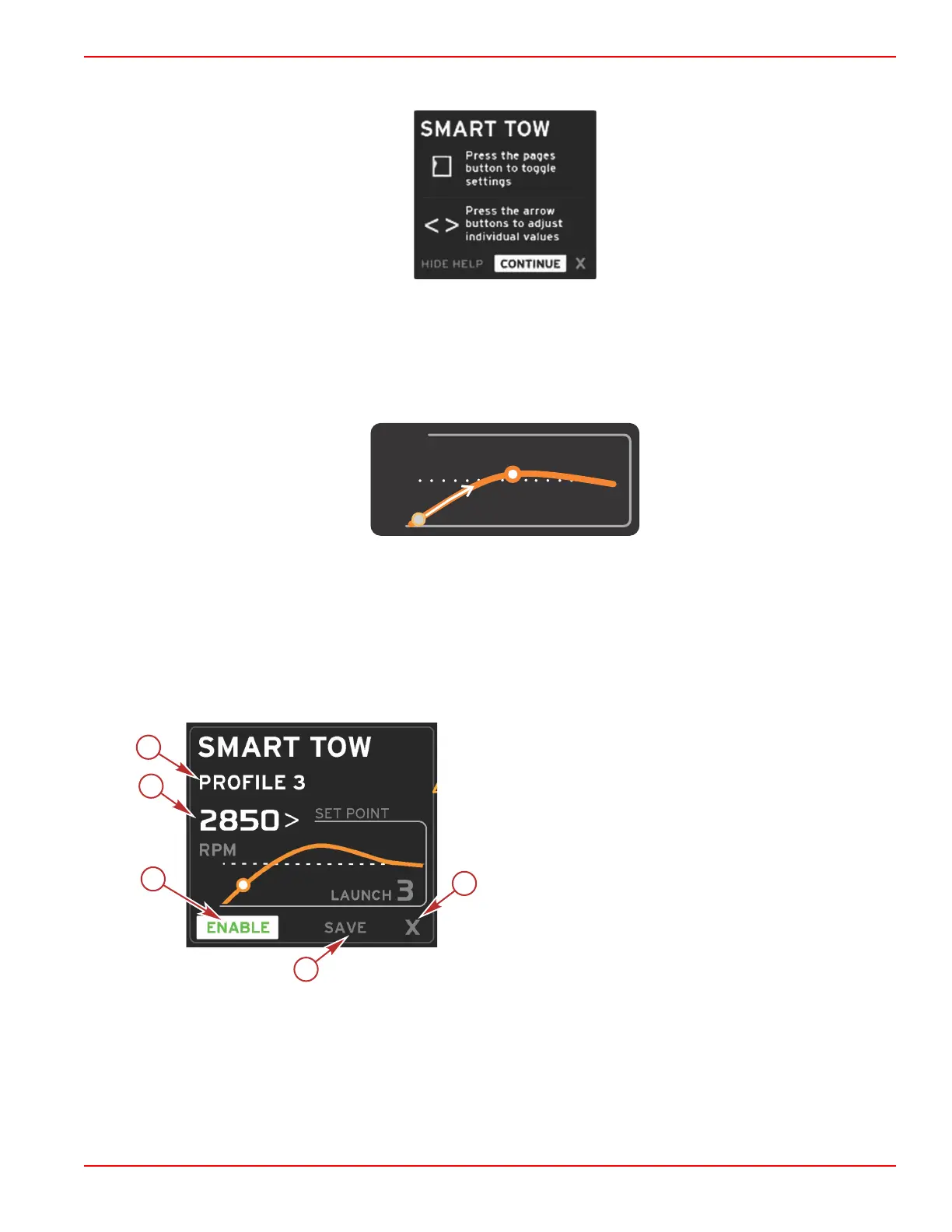

• CONTINUE will launch the default Smart Tow contextual screen and keep the Overview page in the launch sequence the
next time Smart Tow is launched.
• X will exit the Smart Tow option.
Smart Tow Contextual Data Area
The default Smart Tow contextual screen allows you to select, set, and modify settings in the Smart Tow features. The launch
graph dot is animated when Smart Tow is active and performing a launch sequence. The dot will move along the launch path
showing what part of the launch sequence the system is performing.
Launch graph animated dot
Navigation
Smart Tow utilizes the contextual data area and the footer section to allow you to adjust the settings. Press or flick to move
through the selection box fields. The footer section allows you to enable or disable Smart Tow, save, or exit.
There are five selection fields. Use the rotary knob or flick to scroll through the profile selection, RPM/speed set point, and
enable/disable.
• The items located in the footer navigation require the selection to be pressed or press the rotary knob to accepted.
a - Profile selection
b - Set point value
c - Enable
d - Save
e - Exit
