Mercury VesselView Link User Manual

Section 4 - Setup and Calibrations
90-8M0109374 eng JUNE 2016 Page 75
In addition to the PCM selections, there are options to select either the TAB—trim tab interface module, or the TVM—thrust
vector module, to send tab data to the VesselView.

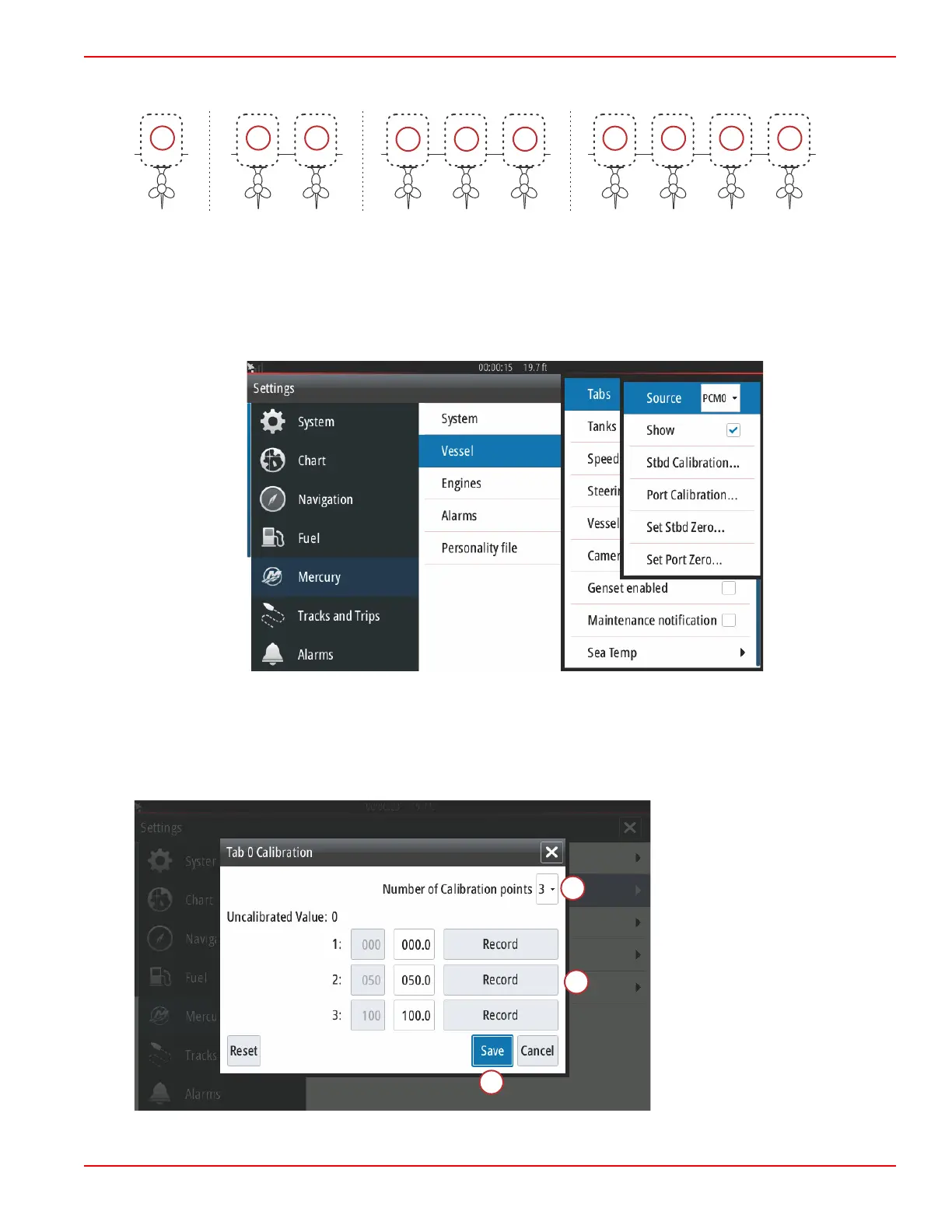

Drive assignment options
a - PCM0 = starboard or starboard outer
b - PCM1 = port or port outer
c - PCM2 = starboard inner or center
d - PCM3 = port inner
61661
Tab calibration allows the operator to put the tabs in their uppermost and lowermost positions and record the percentages. This
is useful for determining the true 0° trim position—the point at which the tabs are parallel with the bottom of the vessel.
Correctly calibrated tabs will show an accurate position of the sliders on the screen.
To calibrate the tabs, trim the tab parallel to the hull, record the reading, this will be the tabs actual 0%. Trim the tab all the way
down, record the reading, this will be the tabs actual 100%. Select Save to keep the new calibrated tab data.
a - Select the number of points of
calibration desired
b - Position of the tabs for
recording purposes
c - Select save to keep the
calibration
a
a
a
b
b
b
c
c
d
60056
a
61669
a
b
c
