Section 4 - Setup and Calibrations

Page 88 90-8M0109374 eng JUNE 2016

Supported Data

Supported Data allows the operator to select the types of data that the VesselView will display. The list of data sources is

dependent on the power package selected during the Setup Wizard. Select the checkbox for each data item you want

VesselView to be able to display.

61705

61706

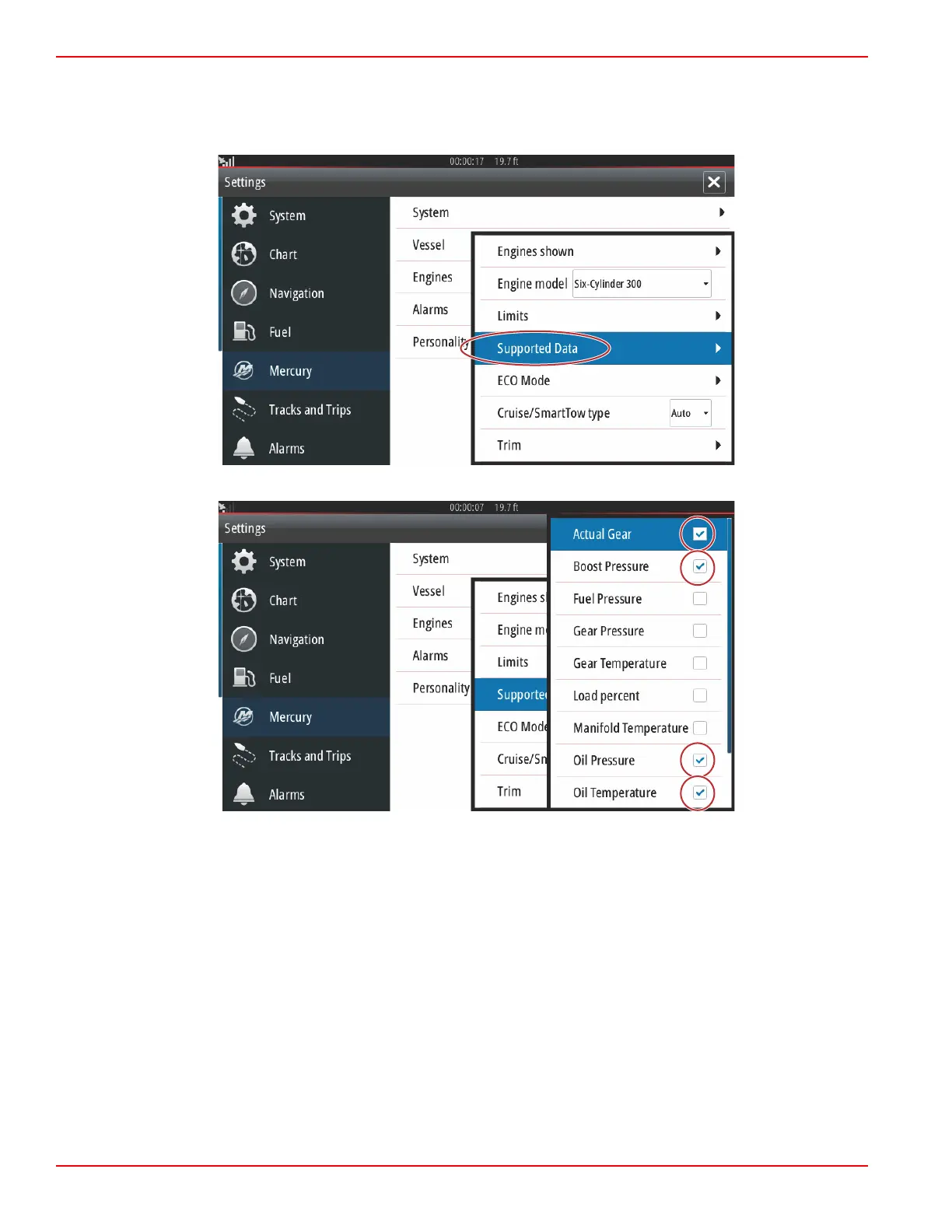

Selected data items shown circled
