Chapter 1 Introduction
1. 2. 2. Rear Panel

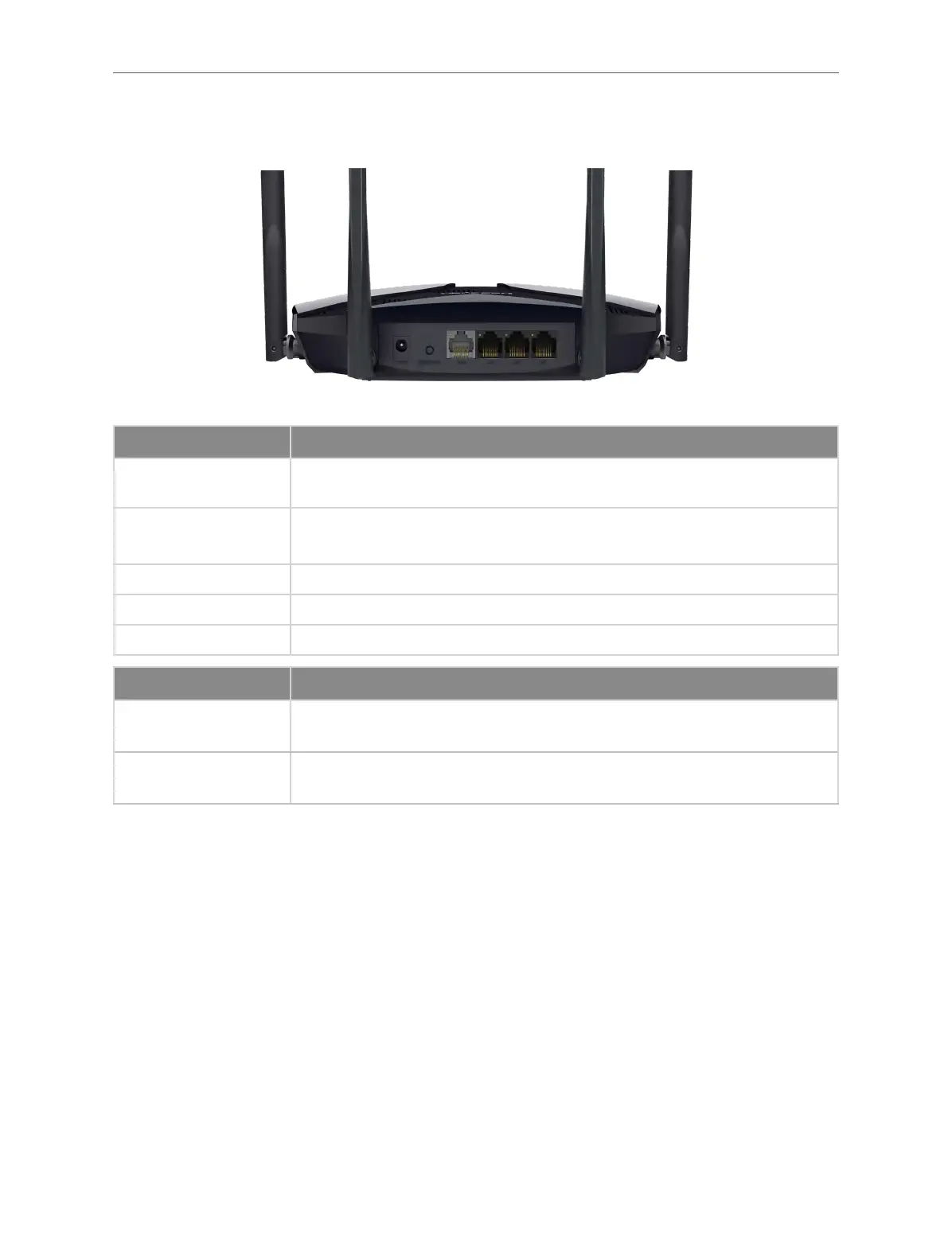

The following items are located on the rear panel (View from left to right).
Item Description
POWER Socket
The power socket is where you will connect the power adapter. Please use the
power adapter provided with this router.
RESET/WPS Button
Press and hold this button for more than 5 seconds to reset the router.
Press for 1 second to use the WPS function.
WAN Port This port is where you will connect the router to the DSL/cable Modem, or Ethernet.
LAN Ports These ports connect the router to the local devices.
Wireless Antennas To receive and transmit the wireless data.
Item Indication
WAN Port LED
Off: The WAN port is not connected.
On: The WAN port is connected.
LAN Port LED
Off: The LAN port is not connected.
On: The LAN port is connected.
