Chapter 4 Congure the Router in Wireless Router Mode
4. 4. NAT Forwarding
The router’s NAT (Network Address Translation) feature makes the devices on the LAN
use the same public IP address to communicate on the internet, which protects the local
network by hiding IP addresses of the devices. However, it also brings about the problem
that external hosts cannot initiatively communicate with the specified devices in the local
network.
With the forwarding feature, the router can traverse the isolation of NAT so that clients on
the internet can reach devices on the LAN and realize some specific functions.
The Mercusys router includes four forwarding rules. If two or more rules are set, the priority
of implementation from high to low is Port Forwarding, Port Triggering, UPNP and DMZ.
4. 4. 1. Port Forwarding
When you build up a server in the local network and want to share it on the internet, Port
Forwarding can realize the service and provide it to internet users. At the same time Port
Forwarding can keep the local network safe as other services are still invisible from the
internet.
Port Forwarding can be used to set up public services in your local network, such as HTTP,
FTP, DNS, POP3/SMTP and Telnet. Different service uses different service port. Port 80 is
used in HTTP service, port 21 in FTP service, port 25 in SMTP service and port 110 in POP3
service. Please verify the service port number before the configuration.
I want to:
Share my personal website I’ve built in local network with my friends through the internet.
For example, the personal website has been built in my home PC (192.168.1.100). I hope
that my friends on the internet can visit my website in some way. My PC is connected to the
router with the WAN IP address 218.18.232.154.

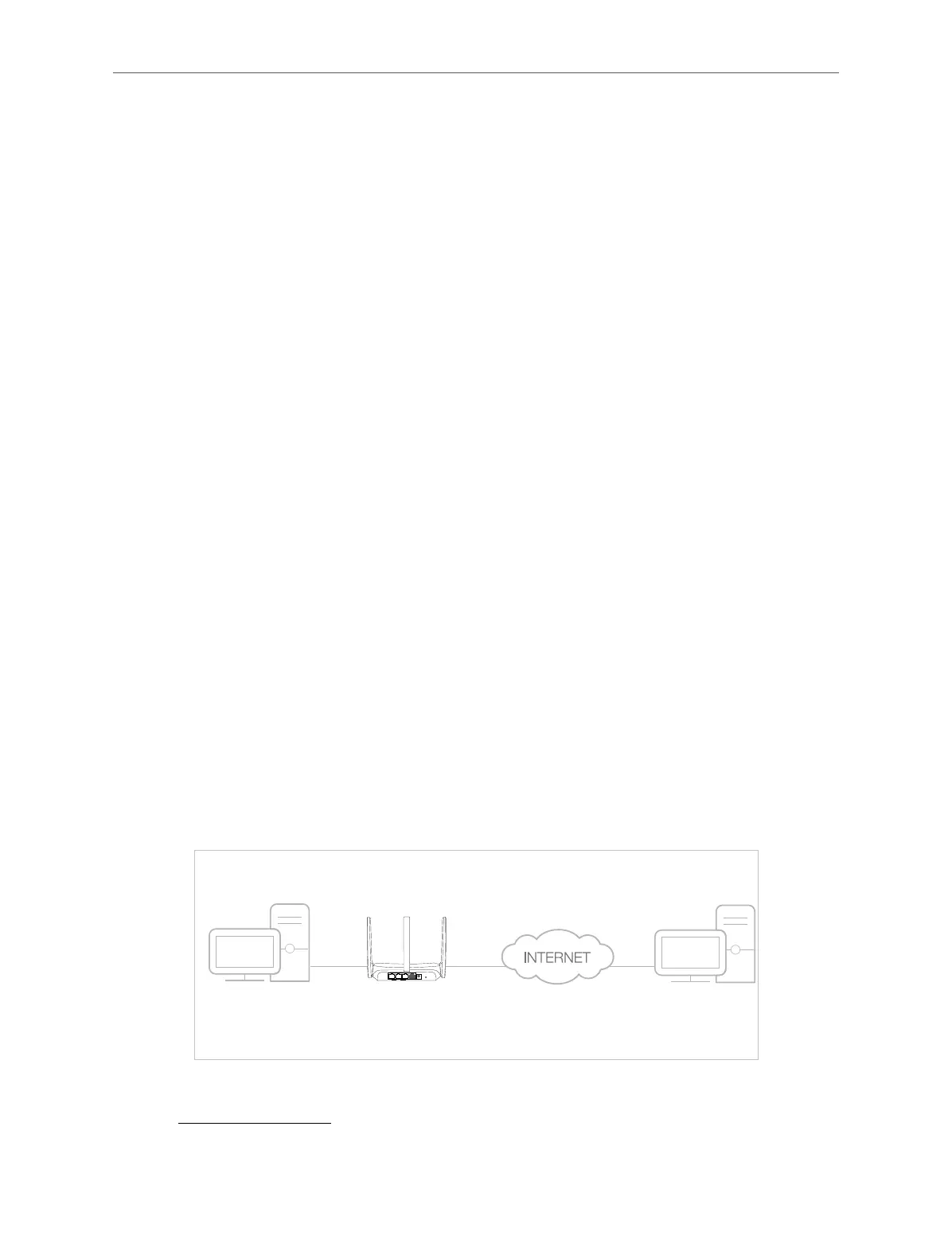

Router
WAN: 218.18.232.154
LAN
Home
Personal Website
LAN WA N POWER RESET/WPS
1. Set your PC to a static IP address, for example 192.168.1.100.
7. Visit http://mwlogin.net, and log in with the password you set for the router.
8. Go to Advanced > NAT Forwarding > Port Forwarding.
