Mercusys MR70X User Manual

35
Chapter 4 Congure the Router in Wireless Router Mode
Note: Only devices that have previously been connected to your router’s network are listed here. If you are
unable to find the device you want to add, connect it to your network and then try again.
4 ) Click NEXT.

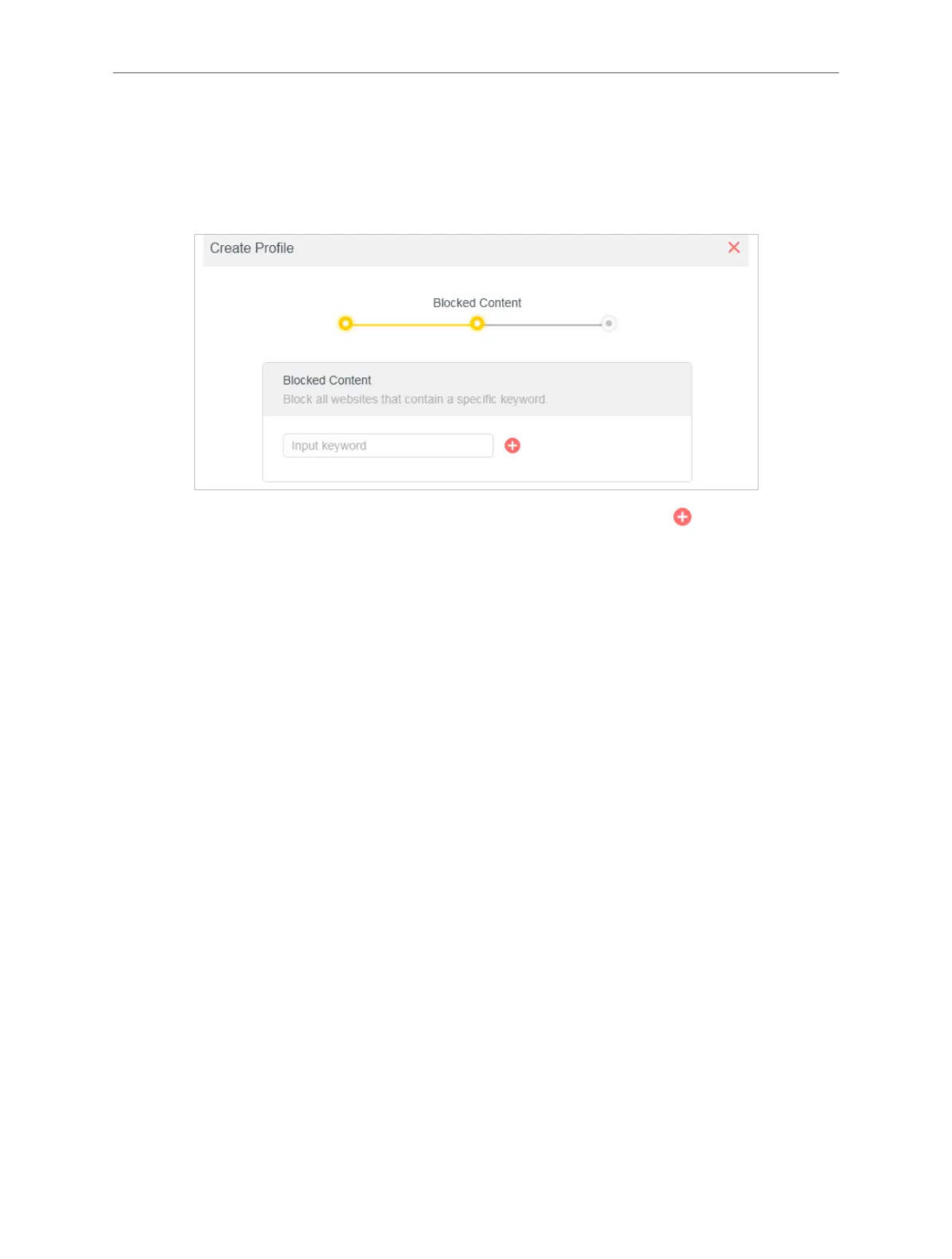

5. Block content for this profile.
1 ) Enter the key word of the website that you want to block. Click if want to block
multiple websites.
2 ) Click NEXT.
5. Set time restrictions on internet access.

Mercusys MR70X Specifications

General

DSL WAN	No
Ethernet WAN	Yes
Product type	Tabletop router
Product color	Black
LED indicators	Power, WLAN
Wi-Fi band	Dual-band (2.4 GHz / 5 GHz)
Wi-Fi standards	802.11a, 802.11b, 802.11g, Wi-Fi 4 (802.11n), Wi-Fi 5 (802.11ac), Wi-Fi 6 (802.11ax)
Top Wi-Fi standard	Wi-Fi 6 (802.11ax)
WLAN data transfer rate (max)	1775 Mbit/s
WLAN data transfer rate (first band)	1201 Mbit/s
WLAN data transfer rate (second band)	574 Mbit/s
Antennas quantity	4
Antenna gain level (max)	5 dBi
Cabling technology	10/100/1000Base-T(X)
Networking standards	IEEE 802.11a, IEEE 802.11ac, IEEE 802.11ax, IEEE 802.11b, IEEE 802.11g, IEEE 802.11n
Ethernet LAN data rates	10, 100, 1000 Mbit/s
Ethernet LAN interface type	Gigabit Ethernet
Number of guest networks (2.4 GHz)	1
Power source type	DC
Operating temperature (T-T)	0 - 40 °C
Storage relative humidity (H-H)	5 - 90 %
Operating relative humidity (H-H)	10 - 90 %
Mobile network generation	-
Cables included	LAN (RJ-45)
Firewall security	SPI Firewall, IP and MAC Address Binding
Security algorithms	WPA-PSK, WPA2-PSK, WPA3
Harmonized System (HS) code	85176990

Weight and Dimensions

Depth	171.6 mm
Width	208.8 mm
Height	41.7 mm
