INSTRUCTION MANUAL ME-104 15
• BIGGER-SMALLER: values to distinguish if two consecutives mattresses are the same
length or not. Minor is the negative difference under which the bar in module nº3 will need to
re-locate. Mayor is the positive one. If this value is big enough two different mattresses will
be processed as if were the same length. Aprox: -6, +6
• BLOWER M1: the first number is the delay in tenth of seconds for the blowers in M1 to
be activated to help removing wrinkles. The second time is the duration of the blow,
adjustable to avoid the bag hit the lateral bar
• BLOWER M3: time in tenth of seconds during which the blower in M3 is activated to
help removing waste. Aprox.: 10-20
• SIZE>2M: the first value is the number that, when exceeds, provokes the machine to
make two seals instead of one. The second value show the wide of the present mattress, and
helps to calculate the first
• ADVANCE1 >2M: shows the time in cents of second that the mattress will advance for
make the first seal, if the mattress is >2m (previous point). Then, the mattress will advance up
to the normal position to make the second seal
• TOTAL PRODUCTION: shows the number of units processed by the machine from the
first day to now.

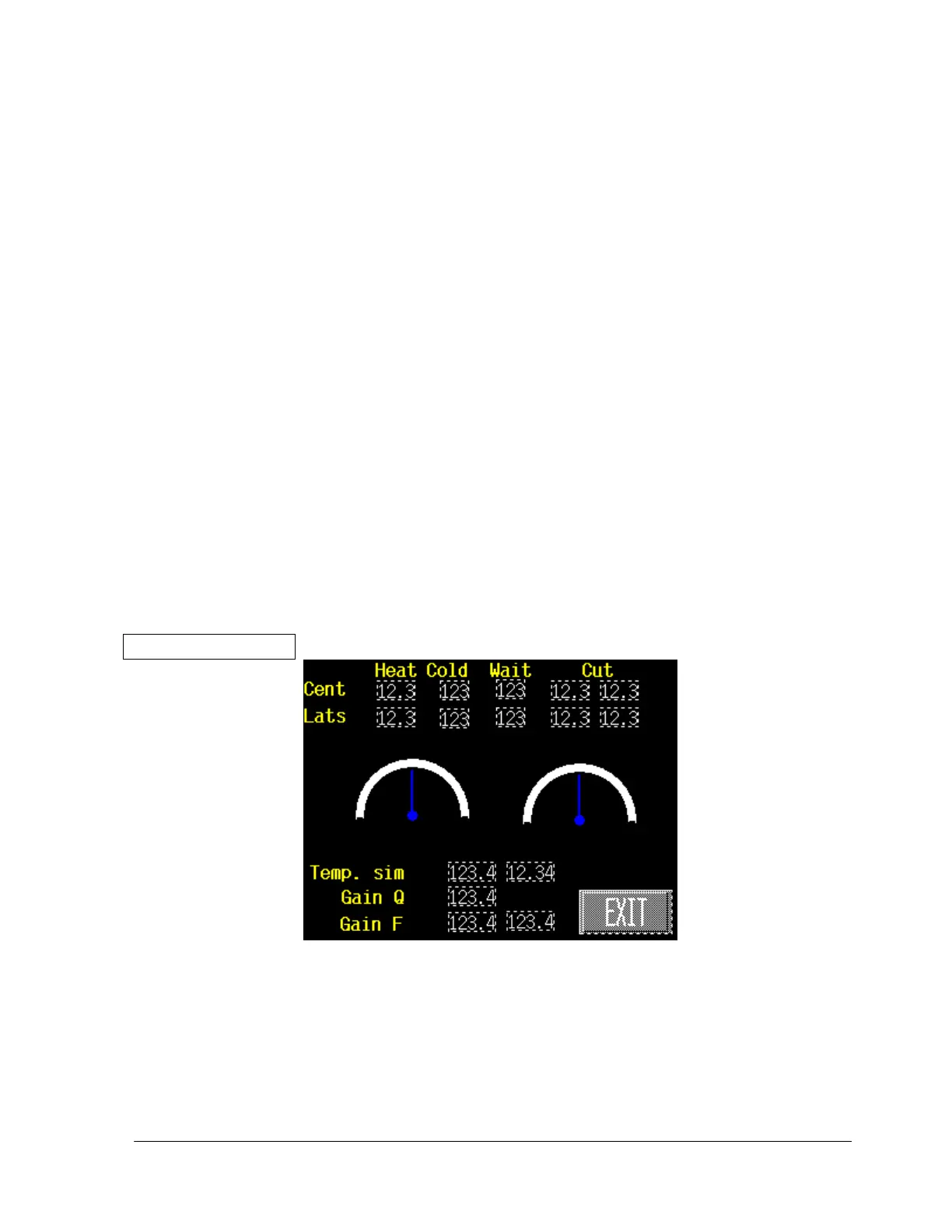

HEATING MENU:
• T HEAT CENTER: time in tenth of second during which power is applied to the central
welding bar. This value will be reduced by the temperature compensation system (see below).
The amount of power can also be regulated in the control cabinet P1. Valor aprox.: 25-50
NOTES:
The grosser the film is, the lower this value must be
Too high power values will reduce the Teflon covers life
Too low values will increase the cycle time
