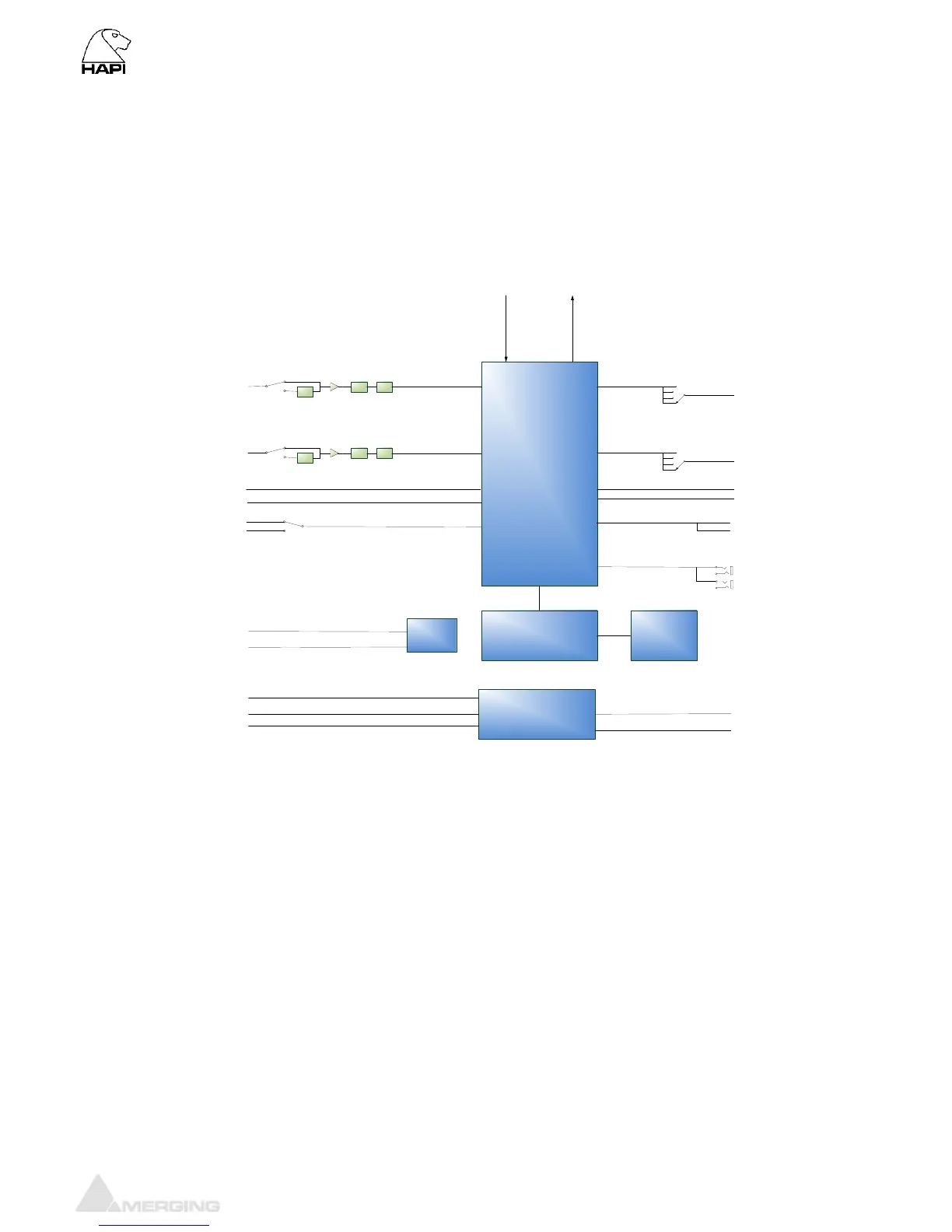

Hapi block diagram
Audio Router
PAD
Low
cut
Phase
Analog input 1
Mic/Line
PAD
Low
cut
Phase
Analog input 16
Mic/Line
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
AES 1 - 8
MADI coaxial 1 - 64
MADI optical 1 - 64
CPU with integrated Web server 1.8" OLEDPower supply
90 – 230VAC / 50 - 60 Hz
10 – 14VDC
Optional DC input
Inputs
Outputs
AES 1 - 8
MADI coaxial 1 - 64
MADI optical 1 - 64
(option)
Ravenna
input streams
Ravenna
output streams
Monitoring 6.3mm Jack
Monitoring 3.5mm Jack
Preamp gain
Analog line output 1
Line level
selection
Analog line output 16
Line level
selection
Preamp gain
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
Hapi Block Diagram
LTC / Sync
Video ref. input
Wordclock input
LTC in
Wordclock output
LTC out
ADAT / SPDIF 1-8
ADAT / SPDIF 1- 8
(option)
