Frequency: The long-term measured Frequency (in Hz) and deviation in ppm (parts per
million) between the signal the unit is locked on to and the internal reference.
Delta: The short-term (instantaneous) time offset between the reference signal and
the internal (considered as ideal) reference, measured in nanoseconds (ns).
In other words, the delta indicator over a RAVENNA network will report the
delta in ns between the master and the slave.

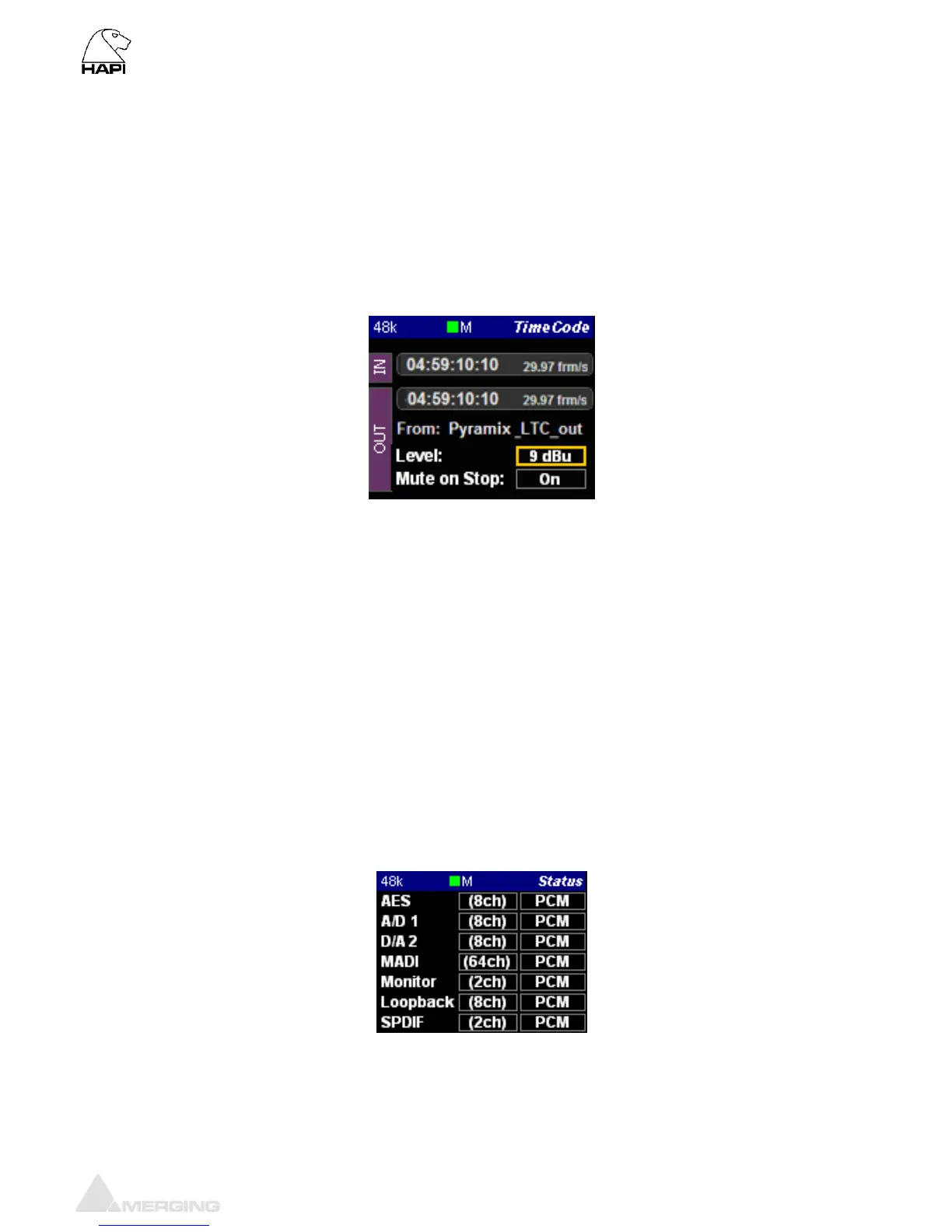

Timecode Sub-Menu (I/O)
IN Timecode: Will display the current incoming LTC/Timecode
OUT Timecode: Will display outcoming LTC/Timecode
Frame Rate: The current LTC/Timecode Frame Rate is indicated next to the Timecode IN &
OUT display
From: Indicates the Timecode provider (in example above the Pyramix DAW)
Timecode Level: Shows the current LTC output level in dBu. The selector offers a choice of
output level from -18dBu to +9dBu in 3dBu increments, or can be switched off
Mute on Stop: If OFF the LTC output will not be active (default)
If ON the LTC output is generated constantly
Status Sub-Menu (I/O)
Lists the status of each Module
Channel count (I/O) and each module Mode (Example: PCM or DSD modes)
