Meridian DSP5200 User Manual

22
Connecting up the
DSP loudspeakers

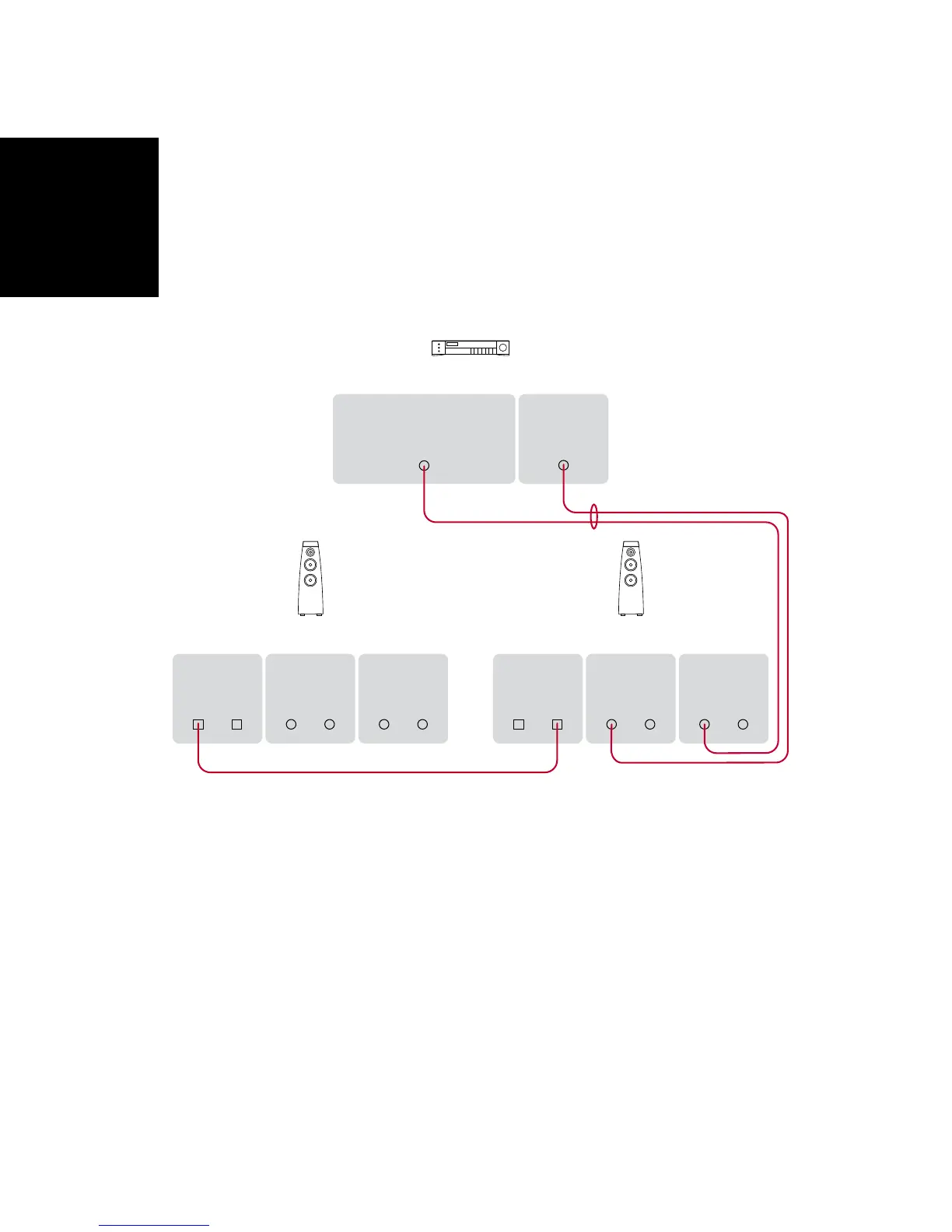

To connect two DSP loudspeakers to a Meridian product with BNC Comms
BNC COMMS
DSP loudspeaker – Slave
Meridian CD Player or Control Unit
DSP loudspeaker – Master
RJ45 lead
Digital/BNC lead
MERIDIAN
SPEAKERLINK
MERIDIAN
COMMS
DIGITAL
INPUT OUTPUT INPUT OUTPUT INPUT OUTPUT
MERIDIAN
SPEAKERLINK
MERIDIAN
COMMS
DIGITAL
INPUT OUTPUT INPUT OUTPUT INPUT OUTPUT
DIGITAL OUTPUT
If the Meridian source or control unit provides a
Meridian BNC Comms output, you will need to connect
it to the DSP Loudspeakers using a Digital/BNC lead.
Connect the DIGITAL OUTPUT and the BNC
COMMS socket from the Meridian source or control
unit to the DIGITAL INPUT and COMMS INPUT on
the DSP loudspeaker chosen as the master, using a
Digital/BNC lead.
Connect the MERIDIAN SPEAKERLINK OUTPUT
from the master DSP loudspeaker to the MERIDIAN
SPEAKERLINK INPUT on the other (slave) DSP
loudspeaker, using an RJ45 lead.
•
•
Configure the master DSP loudspeaker as M.Coax
and the slave DSP loudspeaker as S.RJ45; see To
choose master or slave and the primary connector ,
page 34.
•
