Connecting up the
DSP loudspeakers
Connecting to other equipment

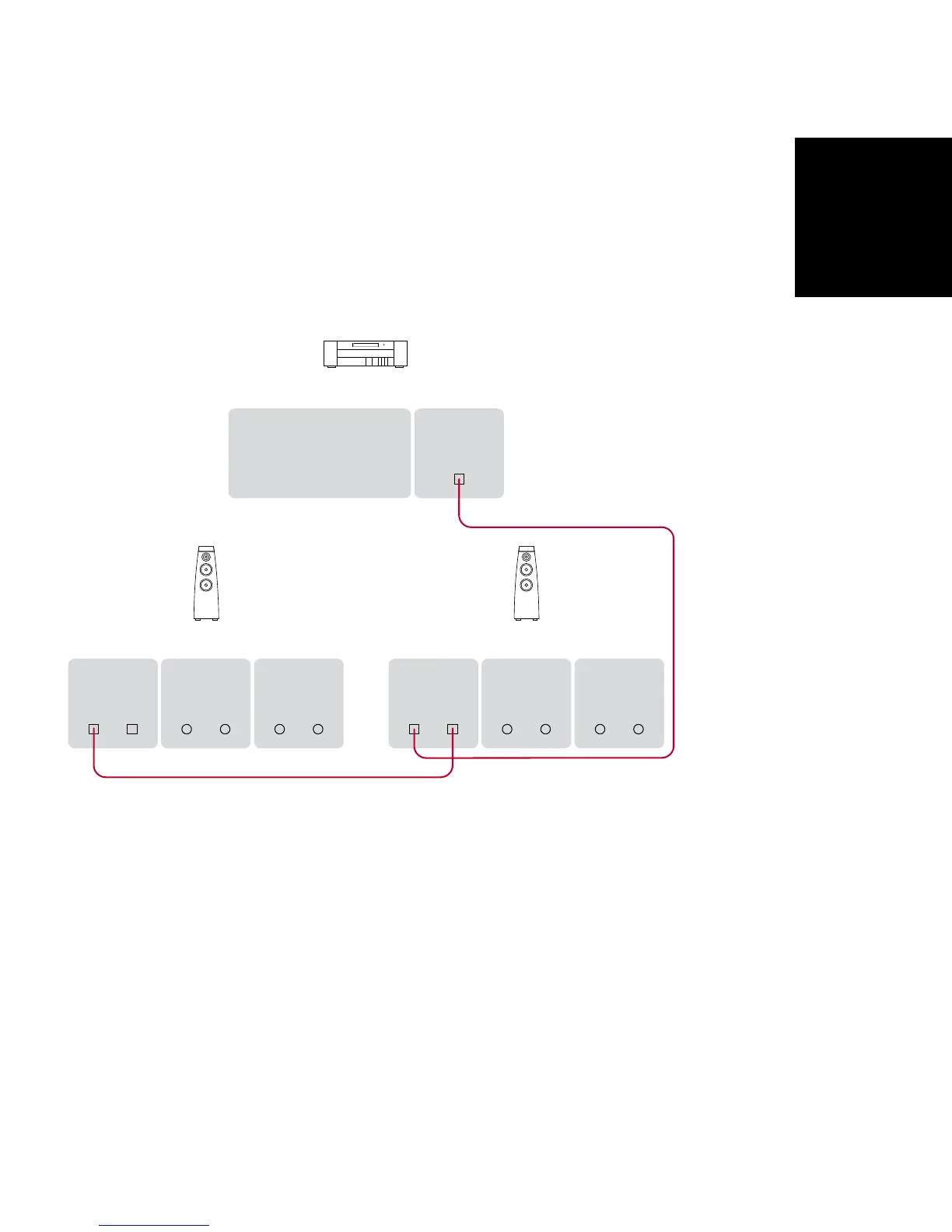

To connect two DSP loudspeakers to a Meridian product with SpeakerLink
MERIDIAN
SPEAKERLINK
DSP loudspeaker – Slave
Meridian 808.2 CD Player
DSP loudspeaker – Master
RJ45 lead
RJ45 lead
MERIDIAN
SPEAKERLINK
MERIDIAN
COMMS
DIGITAL
INPUT OUTPUT INPUT OUTPUT INPUT OUTPUT
MERIDIAN
SPEAKERLINK
MERIDIAN
COMMS
DIGITAL
INPUT OUTPUT INPUT OUTPUT INPUT OUTPUT
You can create a complete system by connecting a pair
of DSP loudspeakers directly to a digital source. The
DSP loudspeakers include volume, balance, and tone
controls allowing you to control the system using the
MSR+.
If the Meridian source or control unit includes a
Meridian SpeakerLink output, such as the Meridian
808.2 CD Player, you can make all the connections
using SpeakerLink (RJ45) cables.
Connect the MERIDIAN SPEAKERLINK OUTPUT
from the Meridian source or control unit to the
MERIDIAN SPEAKERLINK INPUT on the DSP
•
loudspeaker chosen as the master, using an RJ45
lead.
Connect the MERIDIAN SPEAKERLINK OUTPUT
from the master DSP loudspeaker to the MERIDIAN
SPEAKERLINK INPUT on the other (slave) DSP
loudspeaker, using an RJ45 lead.
Configure the slave DSP loudspeaker as S.RJ45; see
To choose master or slave and the primary connector ,
page 34.
•
•
