Meridian DSP5200 User Manual

24
Connecting up the
DSP loudspeakers
To use a DSP loudspeaker as a centre
speaker
BNC
COMMS
Meridian Surround Processor
MERIDIAN
SPEAKERLINK
MERIDIAN
COMMS
DIGITAL
INPUT OUTPUT
DSP loudspeaker – Centre (master)
Digital/BNC lead
DIGITAL OUTPUTS
INPUT OUTPUT INPUT OUTPUT

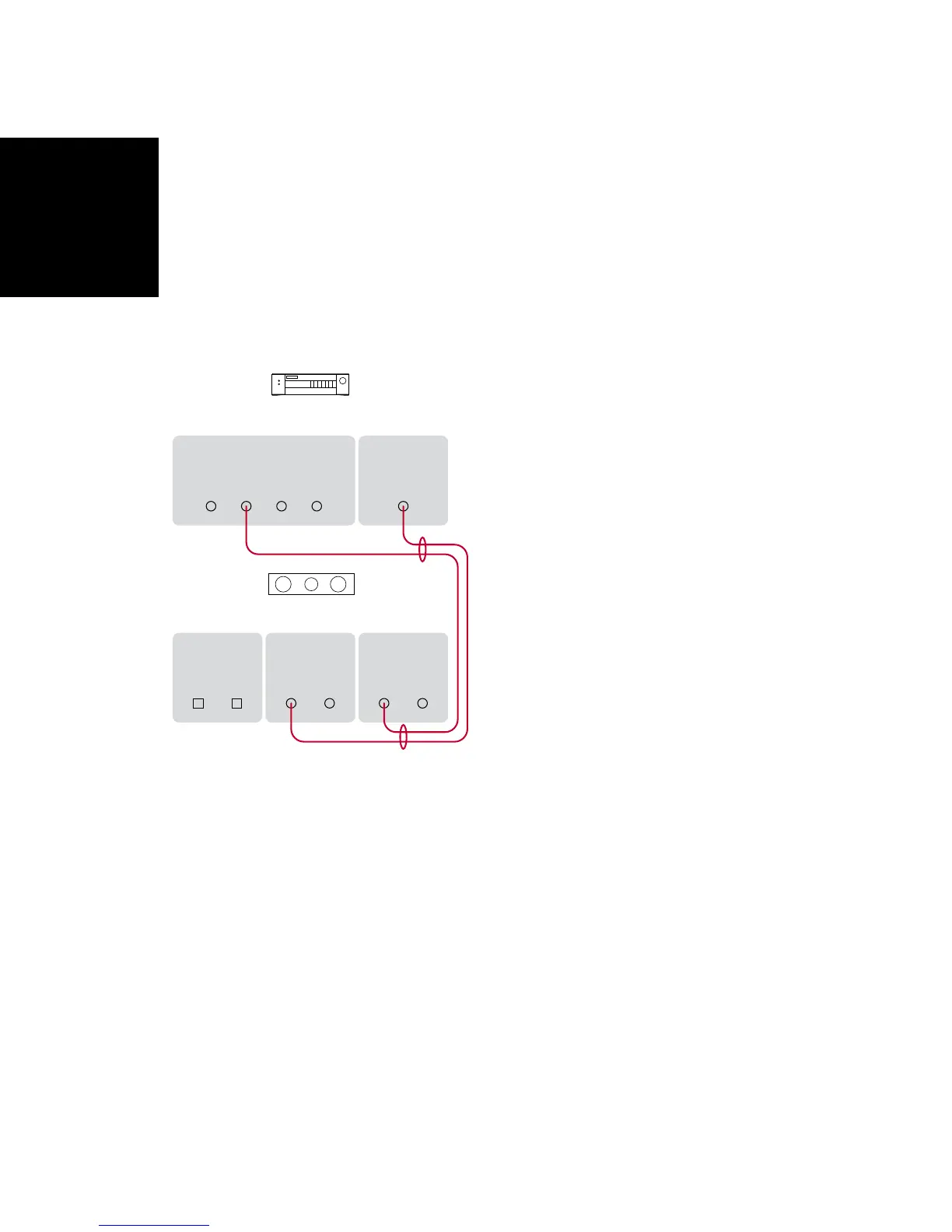

You can use a single DSP loudspeaker as a centre
speaker in a Meridian surround system.
Connect the speaker to the CENTRE digital output
using a Digital/BNC lead, as shown in the illustration.
Configure the centre DSP Loudspeaker as M.Coax;
see To choose master or slave and the primary
connector , page 34.
•
•
