05/04
4

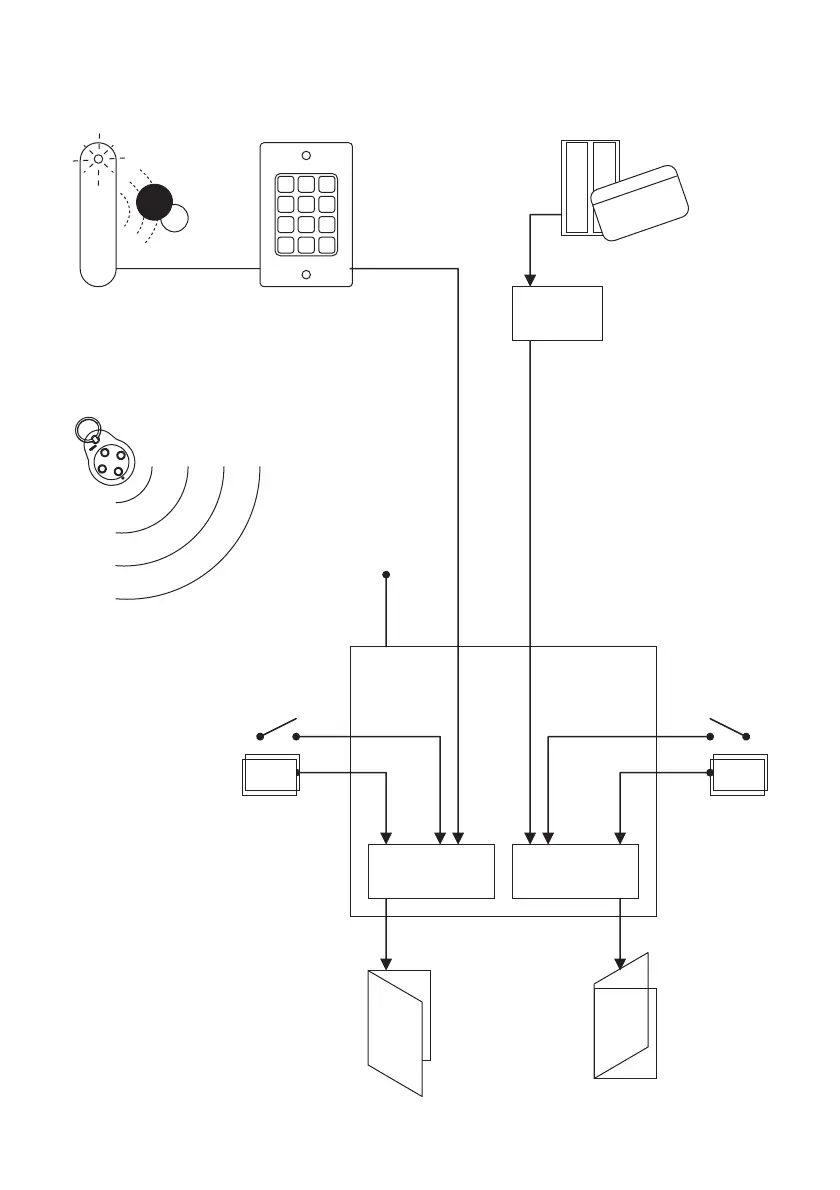

M2000PE
Port 1
Rolling code
+ serial #
+ button #
Validate rol ling code (RF only)
Validate seri al no (2000 ma x)
Detect passback (if req)
Detect enabling loop
Determine user group (if req)
Activate relay (1-180 sec)
Any prox reader
generatin g
26 or 30-bit
Wiegand data
Or any ISO2 or
37-bit Wiegan d
card reader
MW30
converter
ISO2 or 37-bit Wiegand
30-bit Wiegand
Port 2
Door 2Door 1
NO
Enable
loop 2
Manual
control 2
Manual
control 1
NC
Enable
loop 1
NONC
Or any keypad
generatin g
26 or 30-bit
Wiegand data
1 2 3
4 5 6
7 8 9
* 0 #
Any Merlin wireless remote control:
handheld, keyring, wall switch or keypad
