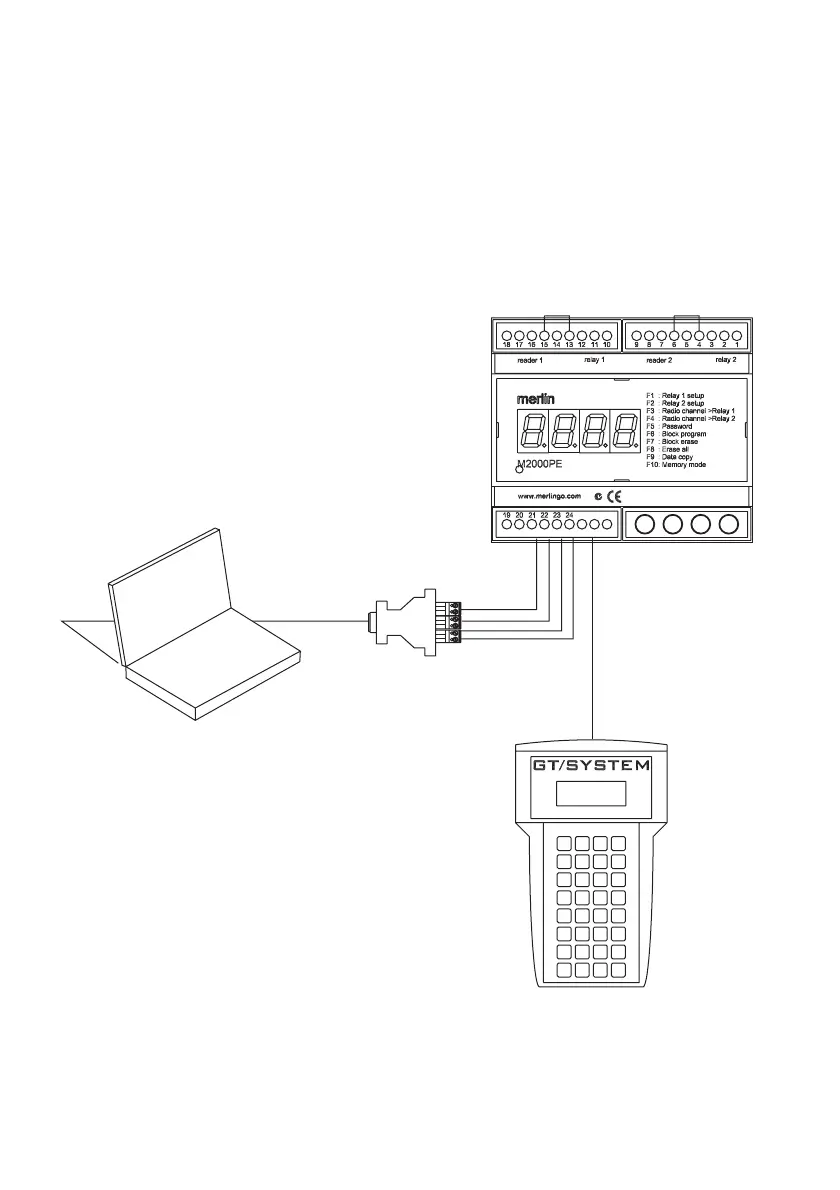

Programming connections
It is possible to perform all the necessary programming from the front panel of the M2000PE.
However, in some instances, it may be useful to programme it in other ways.
A PC running WIN-GT-SYSTEM software can be connected through an INT485C adapter.
The PC requires a serial port.
The handheld GT/SYSTEM programmer can be connected into the RJ11 port.
INT485C
GT/SYSTEM
PC running WIN-GT-SYSTEM
M2000PE
RS232
10m max
RS485
1000m max
RJ11
1000m max
