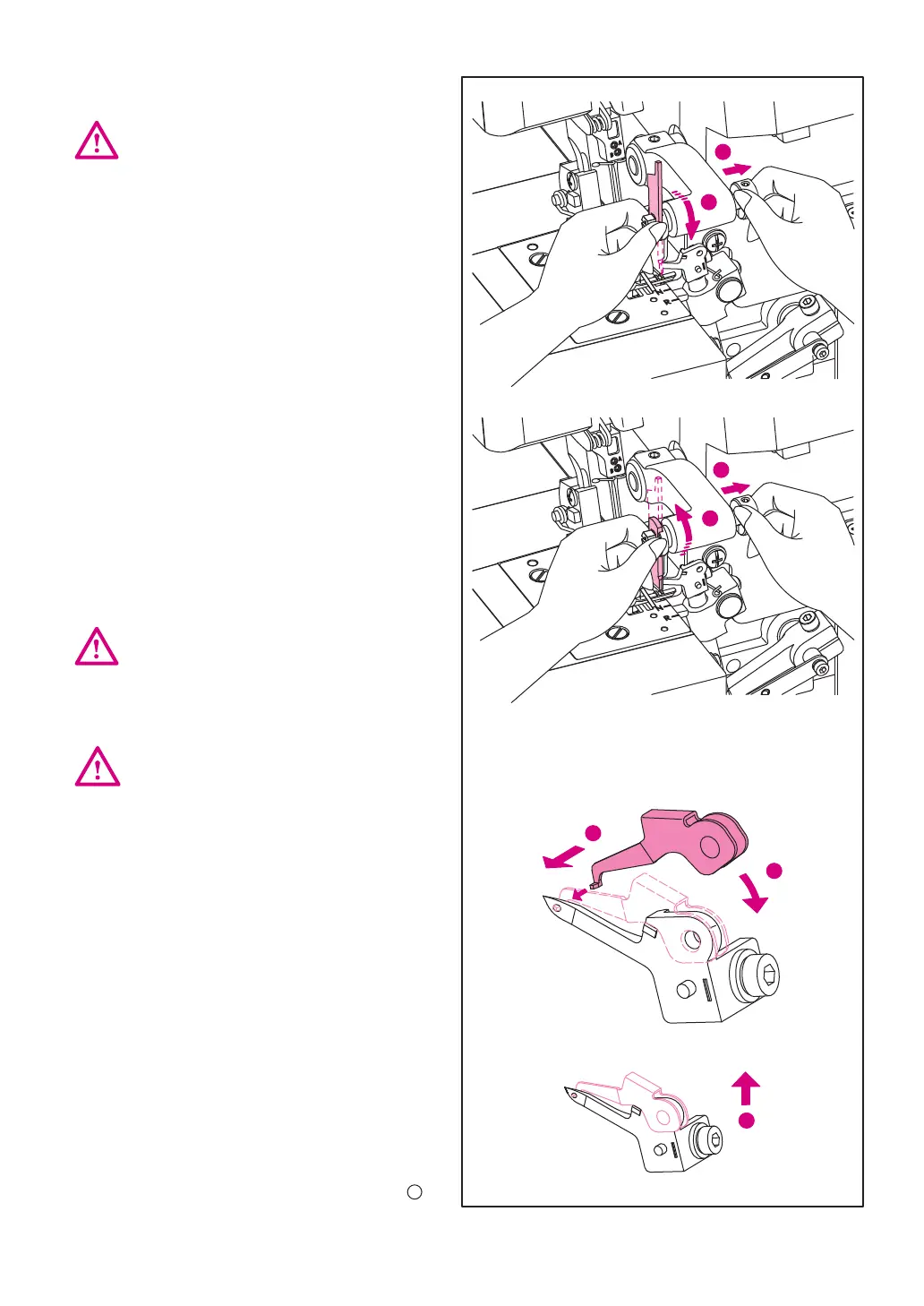

(1) TO PLACE MOVABLE UPPER CUTTER IN
NON-WORKING POSITION
1
* Open looper cover (page 12).
1
* Push the movable upper cotter holder to the right
as far as it will go.
1
* Turn the holder toward t until the upper cutterfron
clicks into a lock position.
1
(2) TO PLACE MOVABLE UPPER CUTTER IN
WORKING POSITION
1
* Open looper cover.
1
* Push the movable upper cutter holder to the right
as far as it will go.
1
* Turn the holder toward back until the upper cutter
clicks into the working position.
13. HOW TO DISENGAGE MOVABLE UPPER
CUTTER
When not threading the upper looper, the 2-thread
converter must be engaged into the upper looper
eye.
1
(1) TO USE THE 2-THREAD CONVERTER
1
* To engage the 2-thread converter, insert the sharp
part into the eye of upper looper.
1
* A raised point located in the trough of 2-thread
converter must be inserted and fixed in the eye of
the 2-thread converter.
1
* When using the upper looper, the 2-thread
converter must be disengaged.
1
(2) TO DISENGAGE TO UPPER LOOPER
1
* To disengage the 2-thread converter, raise the
handle of upper looper according to picture .
14. TO CONVERT UPPER LOOPER TO
2-THREAD CONVERTER
Be sure to turn off power switch
Always close looper cover before operating
machine.
Be sure to turn off power switch.
