Installing AP320i
© 2010 Meru Networks, Inc. Installing AP320i 47

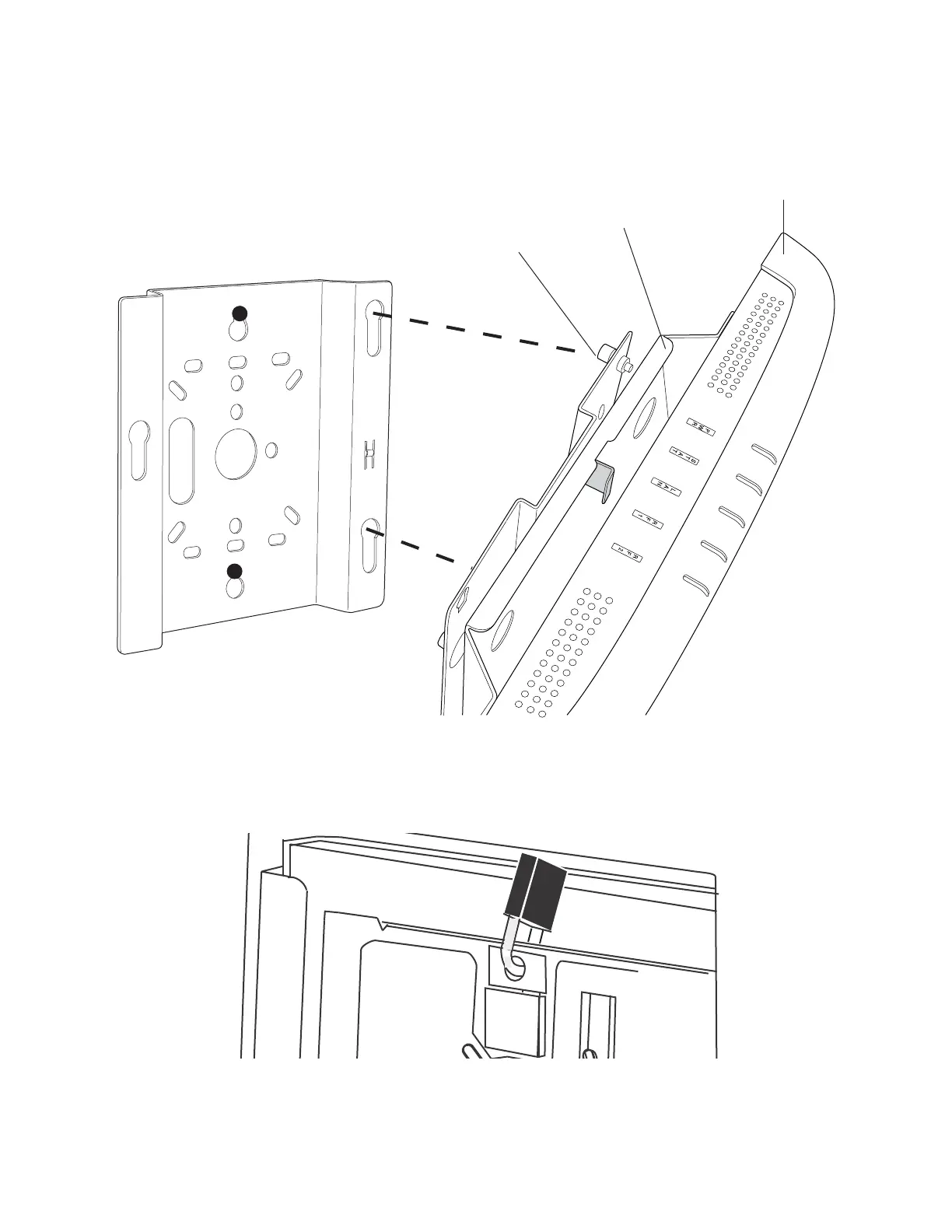

Figure 23: Mount AP320i on an AP200 Wall Bracket
9. Optionally, lock the AP320i bracket by inserting the provided locking key and applying a small lock.
Figure 24: AP320i Locked to a Wall
wall mount bracket
ceiling mount
bracket
AP300i
AP200 bracket on a wall
optional shoulder screw
