84 Meru Access Point Installation Guide © 2010 Meru Networks, Inc.
Checking LED Activity

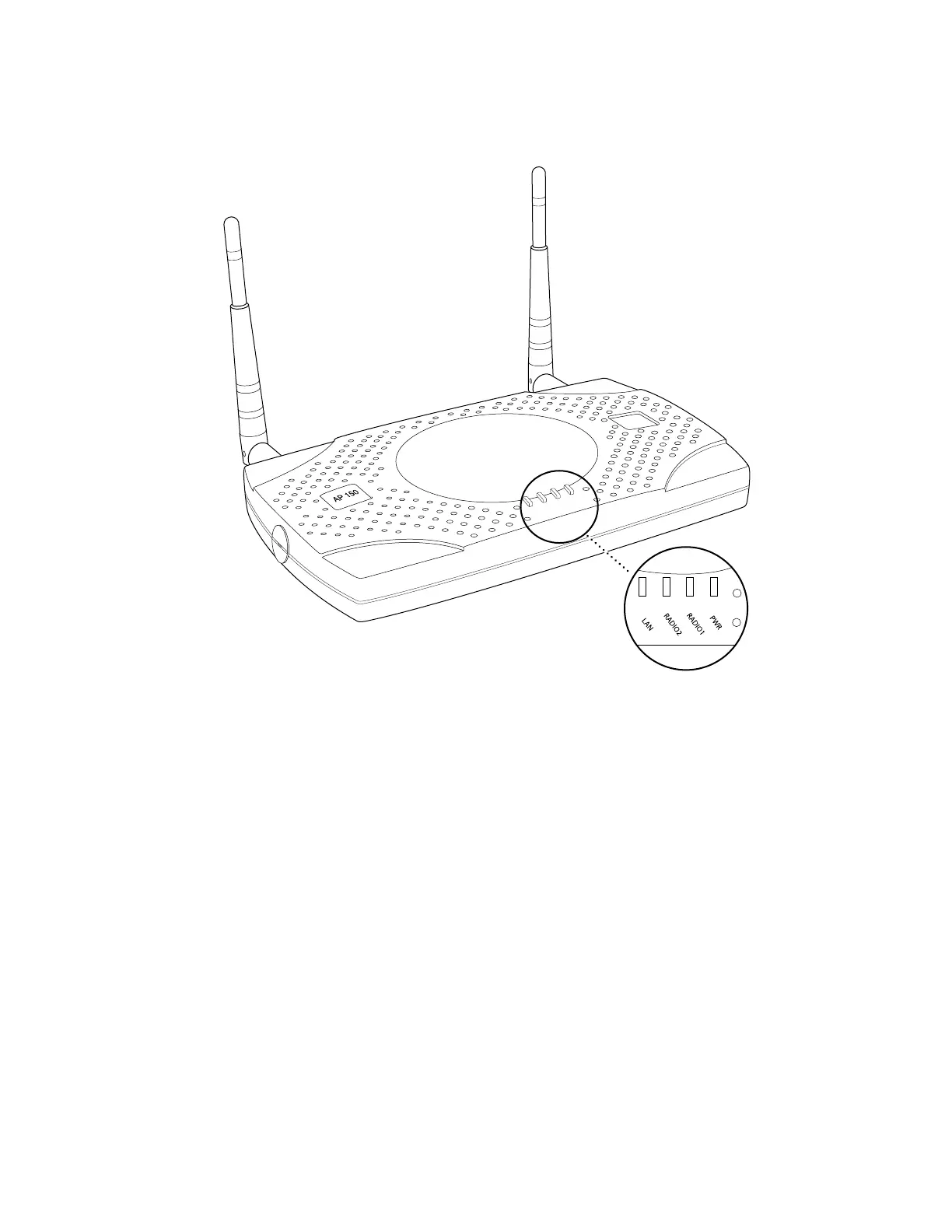

Figure 33: AP150 Status LEDs
.
When the AP150 is first connected to the controller and any time the access point is
rebooted thereafter, the AP initializes with and then is programmed by the
controller. The Status LED (see Figure 33) color reflects the various operating states
(Table ).
PWR
LAN
RADIO 2
RADIO 1
Status LEDs
00166
