GB
Contents
1 Specifications
2 Standard Delivery
3 User Responsibility
4 Tools (Optional Accessory)
5 Drill chuck (Optional Accessory)
6 Scope of Application
7 Assembly/Installation
8 Controls
9 Work Safety
10 Workpiece Dimensions
11 Dust Collection
12 Operation
13 Care and Maintenance
14 Spare Parts List
1 Specifications
Table size : 400x190 mm
Transverse stroke (x) : 200 mm
Vertical adjustment (z) : 120 mm
Depth stroke (y) : 120 mm
Drill chuck capacity : Ø 3-16 mm
Suction port diameter : Ø100 mm
2 Standard Delivery
- Installation hardware
- Clamping arm
- Auxiliary fences
- Instructions
3 User Responsibility
This accessory will perform in conformity with the description contained in the instructions provided. This accessory
must be checked periodically. Defective equipment (including power cable) should not be used. Parts that are
broken, missing, plainly worn, distorted or contaminated, should be replaced immediately. Should such repair or
replacement become necessary, it is recommended that such repairs are carried out by qualified persons approved
by metabo or its representatives.This accessory, or any of its parts, should not be altered or changed from standard
specifications. The user of this accessory shall have the sole responsibility for any malfunction which results from
improper use or unauthorized modification from standard specifications, faulty maintenance, damage or improper
repair by anyone other than qualified persons approved by metabo or its representatives.
6 Scope of Application
This Morticing Attachment is designed for use with metabo Combination Planer/Thicknesser models HC
314, HC 320 and HC 410. With it round or elongated holes can be drilled into solid wood or derived wood products.
4 Tools (Optional Accessories)
Diameter Shank Ø Stock-no.
Morticing bit 8 mm 16 mm 091 101 4394
Morticing bit 10 mm 16 mm 091 101 4408
Morticing bit 12 mm 16 mm 091 101 4416
Morticing bit 14 mm 16 mm 091 101 4424
Morticing bit 16 mm 16 mm 091 101 4440

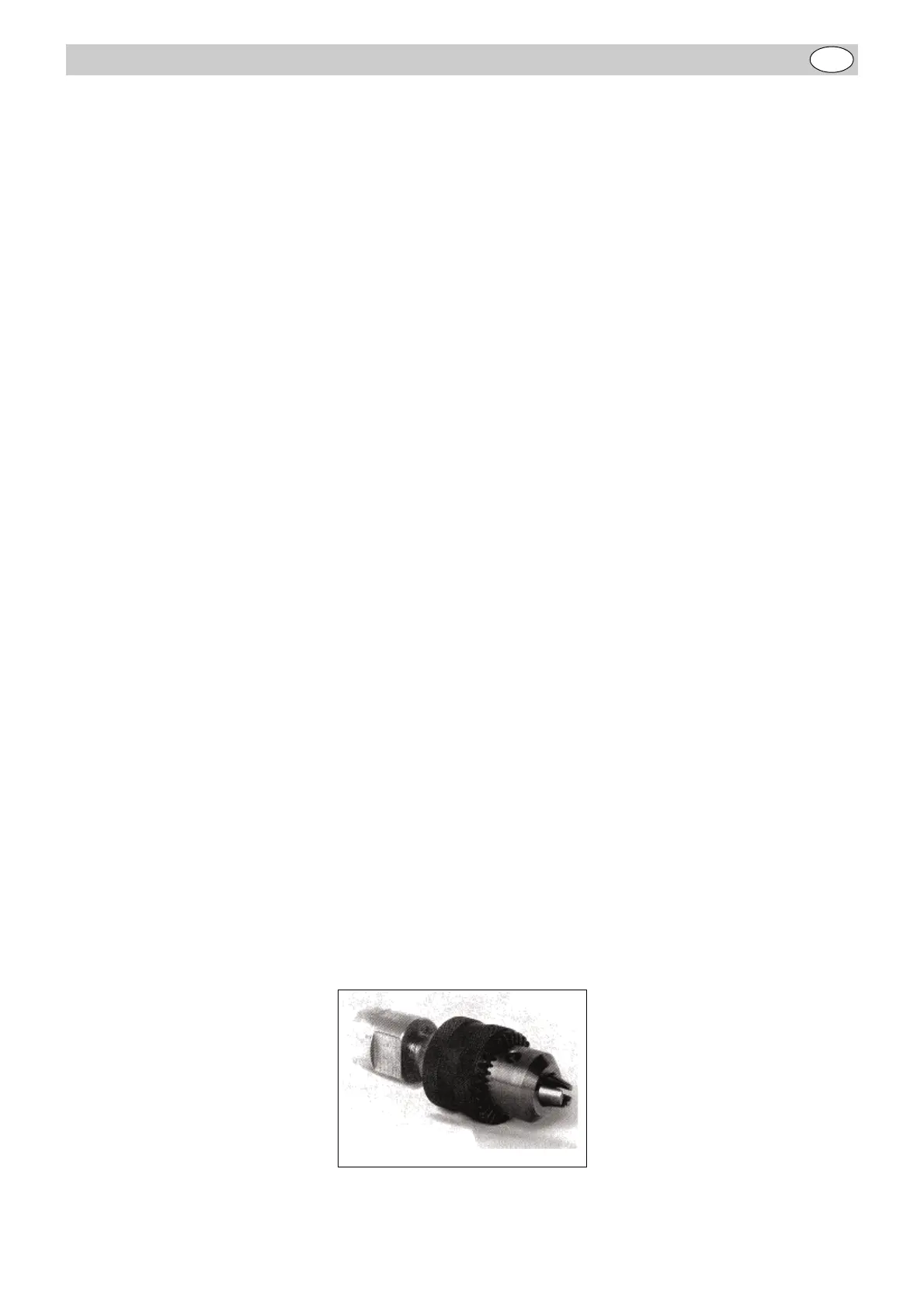

5 Drill Chuck (Optional Accessory)
Three jaw drill chuck
Chuck capacity Ø 3 - 16 mm
Stock-nr. 091 101 5137
