95-7322 KIT ASSEMBLY
3
A
B

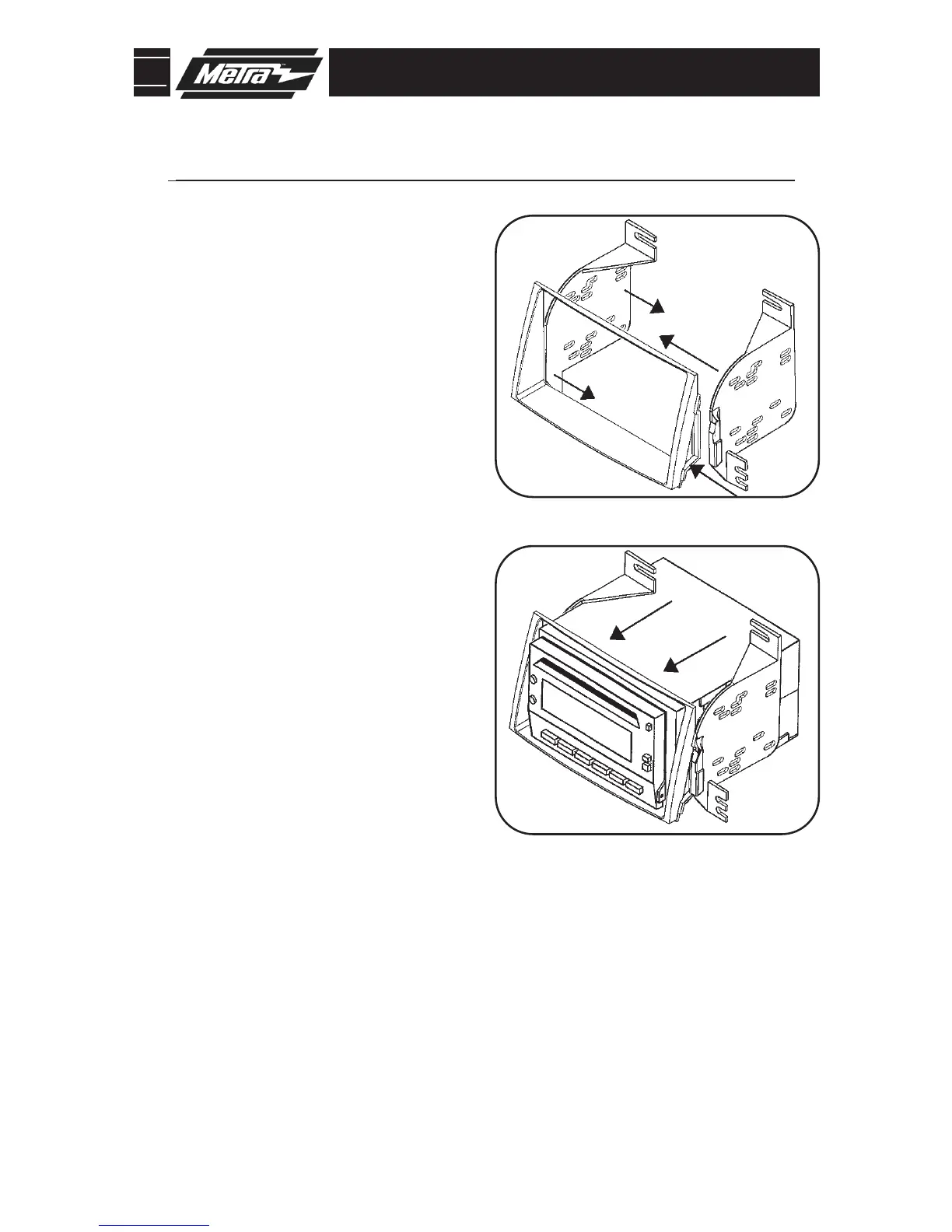

DOUBLE DIN RADIO PROVISION
Snap the Double DIN brackets to the
outside edge of the Double DIN trim
plate.
(Figure A)
1
Slide the Double DIN radio into the
bracket/trim plate assembly and
secure the radio to the assembly
using the screws supplied with the
radio.
(Figure B)
2
Continue to final assembly.
*Note: Refer also to the instructions included with the aftermarket radio.
