95-7362B
Kit Assembly

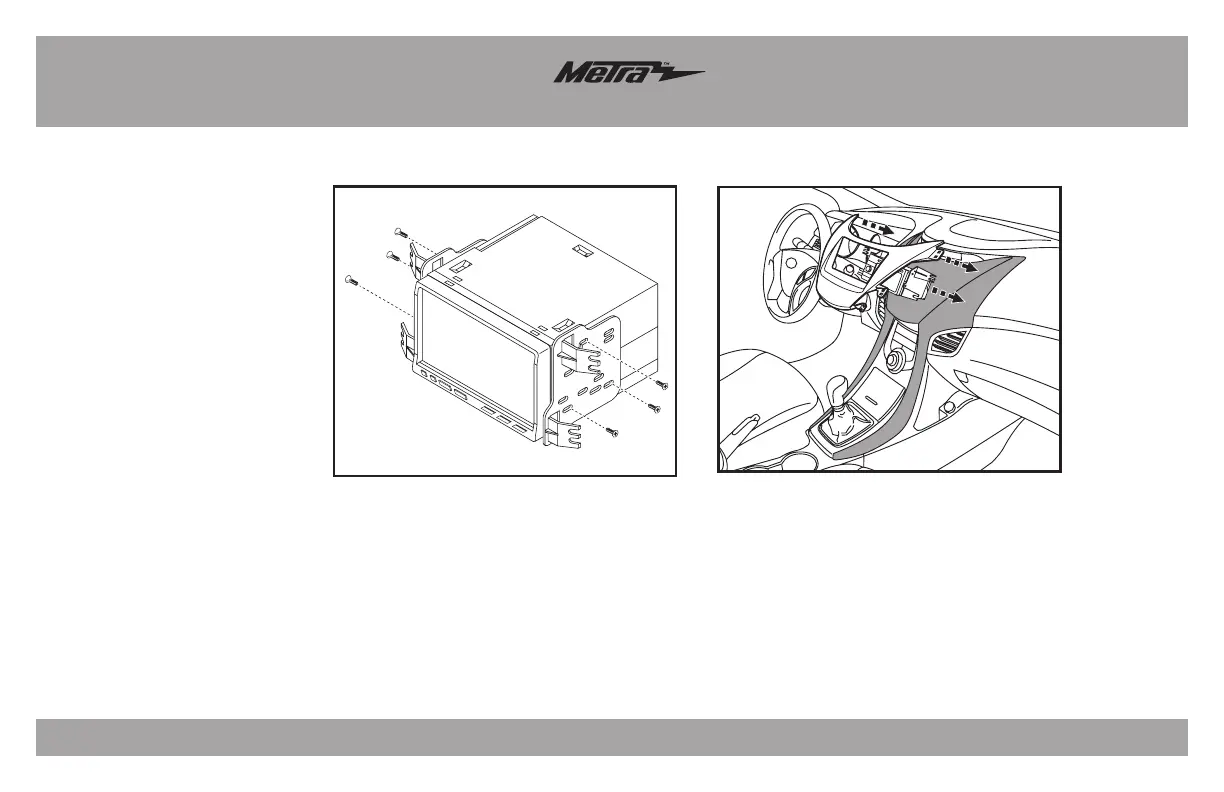

(Figure A)
(Figure B)
ISO DDIN radio provision
1. Attach the brackets to the radio
with the screws included with
radio. (Figure A)
2. Locate the factory wiring harness
and antenna plug in the dash.
Metra recommends using the
proper mating adapters from Metra
and/or AXXESS.
3. Mount the assembly into the sub
dash. (Figure B)
.
4. Reassemble the dash in the
reverse order of disassembly using
the 99-7362B trim panel instead of
the factory panel. (Figure B)
3
