Note: When inserting the 99-7504 into the sub dash be aware of the locations
pointed out in
Figure B
.
If the 99-7504 does not snap in correctly the result will be a noticeable gap on each
side of the installation kit.
(Figure C)

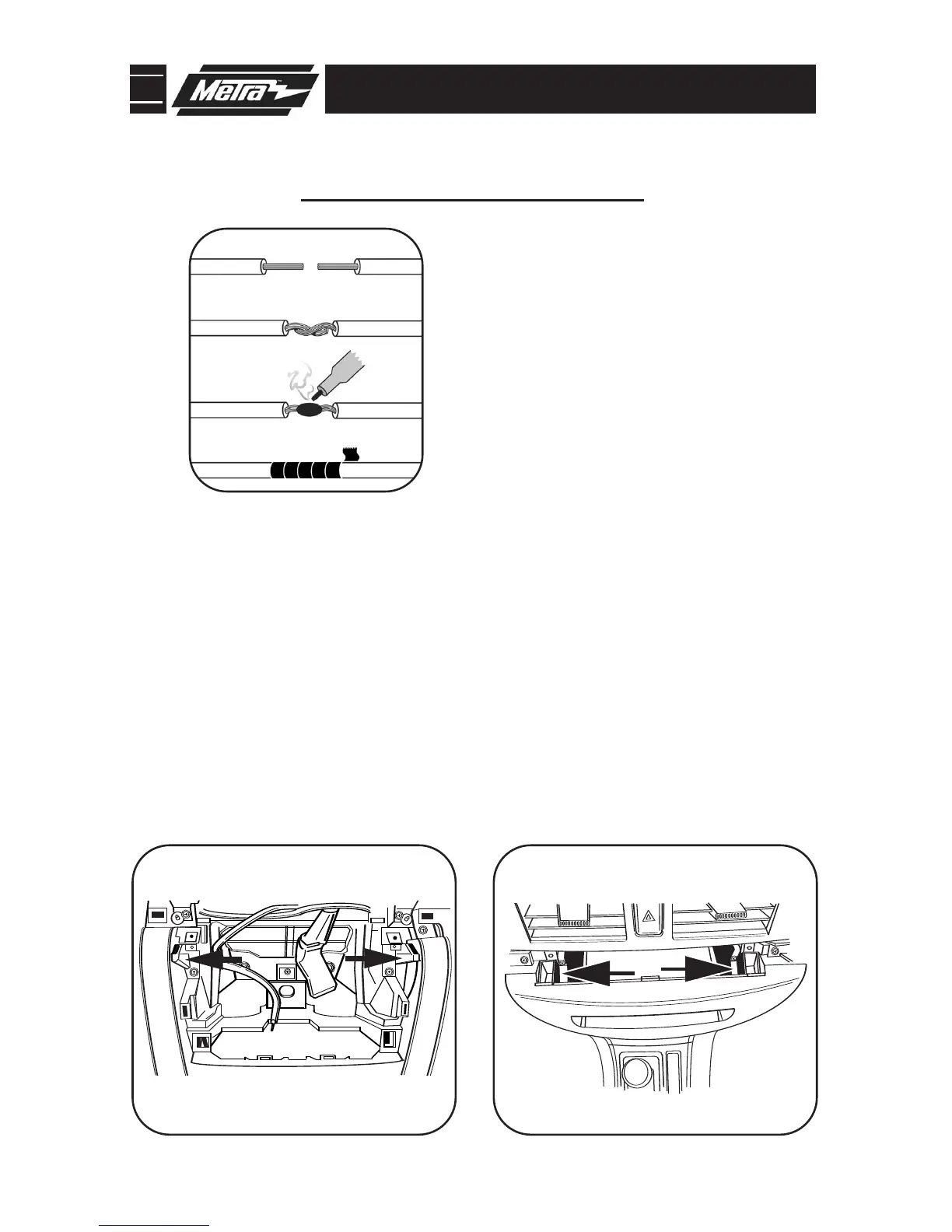

95-7504 FINAL ASSEMBLY
FINAL ASSEMBLY
(A) Strip wire ends back 1/2"
B) Twist ends together
C) Solder
D) Tape
A
B
C
D
Locate the factory wiring harness in the dash. Metra recommends using the
proper mating adapter and making connections as shown. (Isolate and individ-
ually tape off the ends of any unused wires to prevent electrical short circuit.)
Re-connect the negative battery terminal and test the unit for proper operation.
Reassemble radio and dash assemblies in reverse order of disassembly.
