95-9313B
11

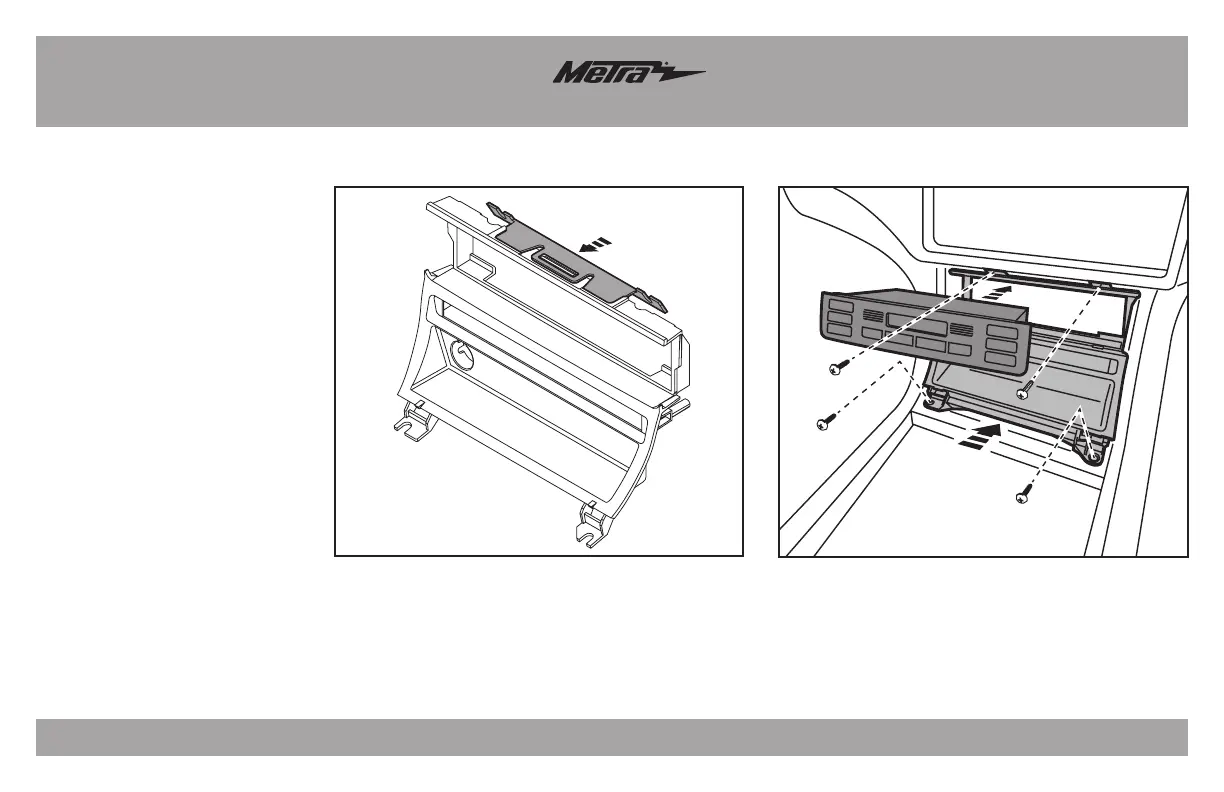

1. Secure the climate bracket onto
the top of the climate and switch
panel housing. (Figure A)
2. Secure the climate and switch
panel housing into the lower
dash opening with the (4) factory
screws removed in step 9 of dash
disassembly. (Figure B)
3. Connect all electrical connectors to
the climate control panel and then
snap the panel into the housing.
(Figure B))
4. Reassemble the dash in reverse
order of disassembly.
Climate and switch panel assembly
(Figure A)
(Figure B)
