Metra Electronics 95-9313B - Page 4

95-9313B
4
Dash Disassembly

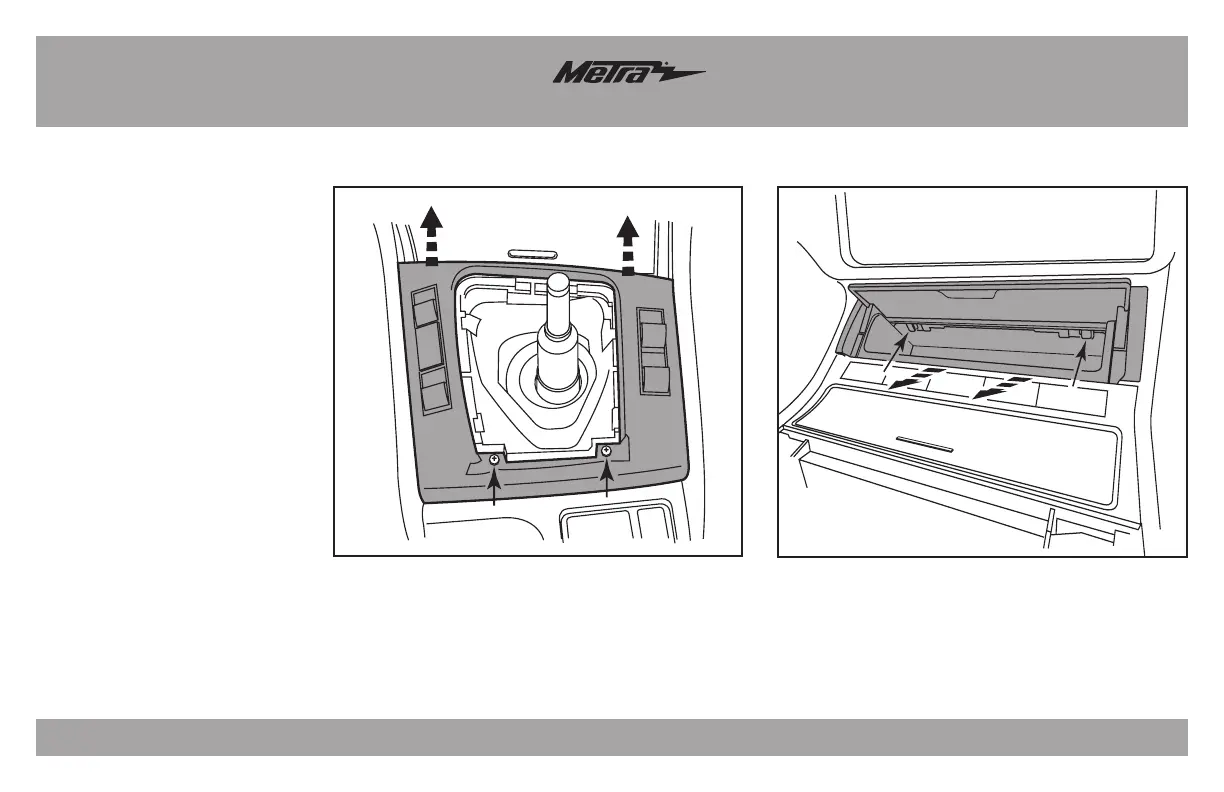

7. Remove (2) Phillips screws
securing the shift selector trim
panel, and then unclip and remove
the panel. (Figure G)
8. Open the upper door on the lower
switch panel. Using a pick tool, or
something suitable, disengage (2)
clips in the upper corners of the
tray to remove the tray and door.
(Figure H)
(Figure G)
(Figure H)
