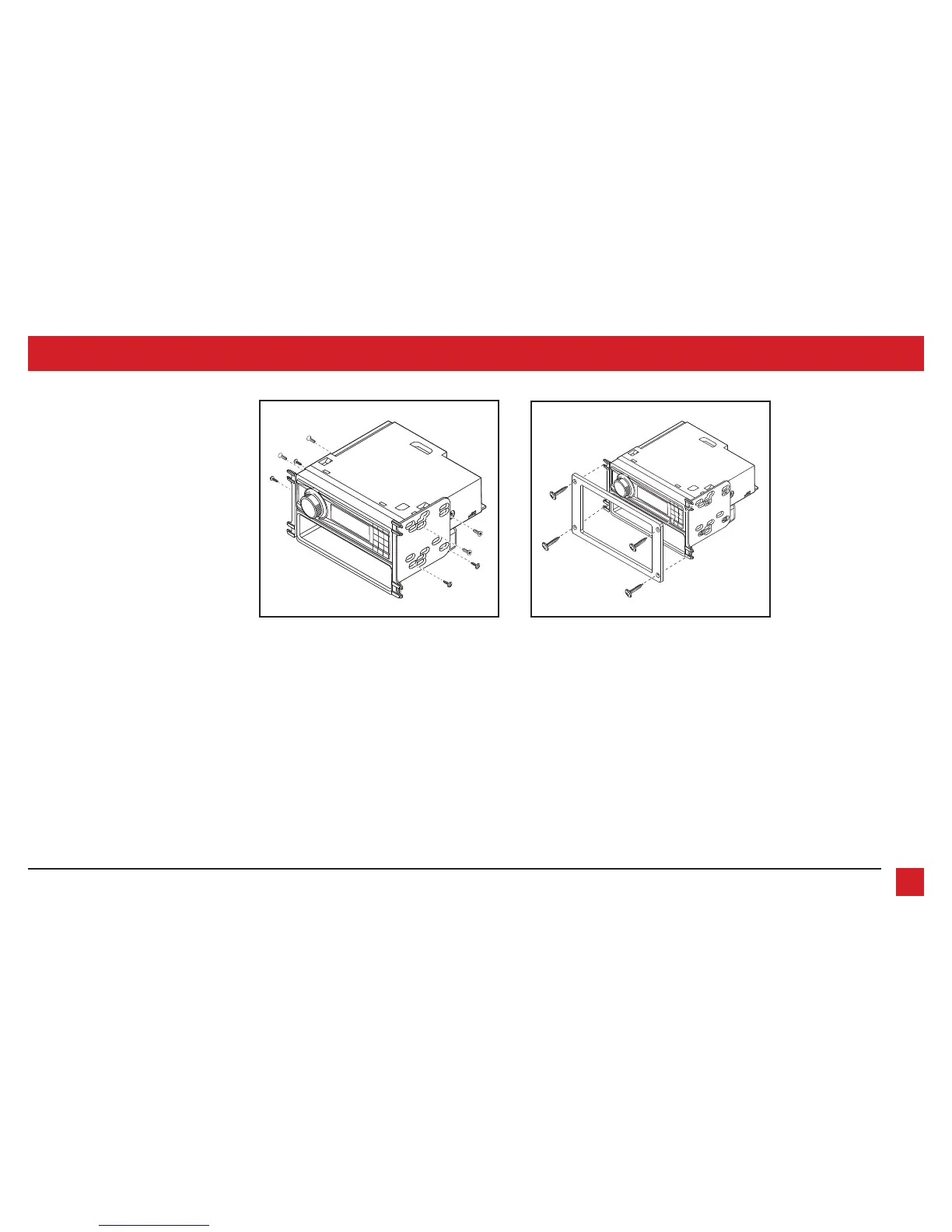

(Figure A) (Figure B)
KIT ASSEMBLY
ISO DIN radio provision with pocket
1. Secure the
radio brackets
to the radio
using the screws supplied with the
radio. (Figure A)
2. Secure the
pocket
to the radio assembly
using the (4) #8 x 3/8” Phillips screws
provided. (Figure A)
3. Locate the factory wiring harness and
antenna connector in the dash and
complete all necessary connections to
the radio. Metra recommends using the
proper mating adapter from Metra. Test
the radio for proper operation.
4. Secure the
trim plate
to the completed
assembly, and also to the vehicle, using
the (4) #8 x 1” Phillips screws provided.
(Figure B)
