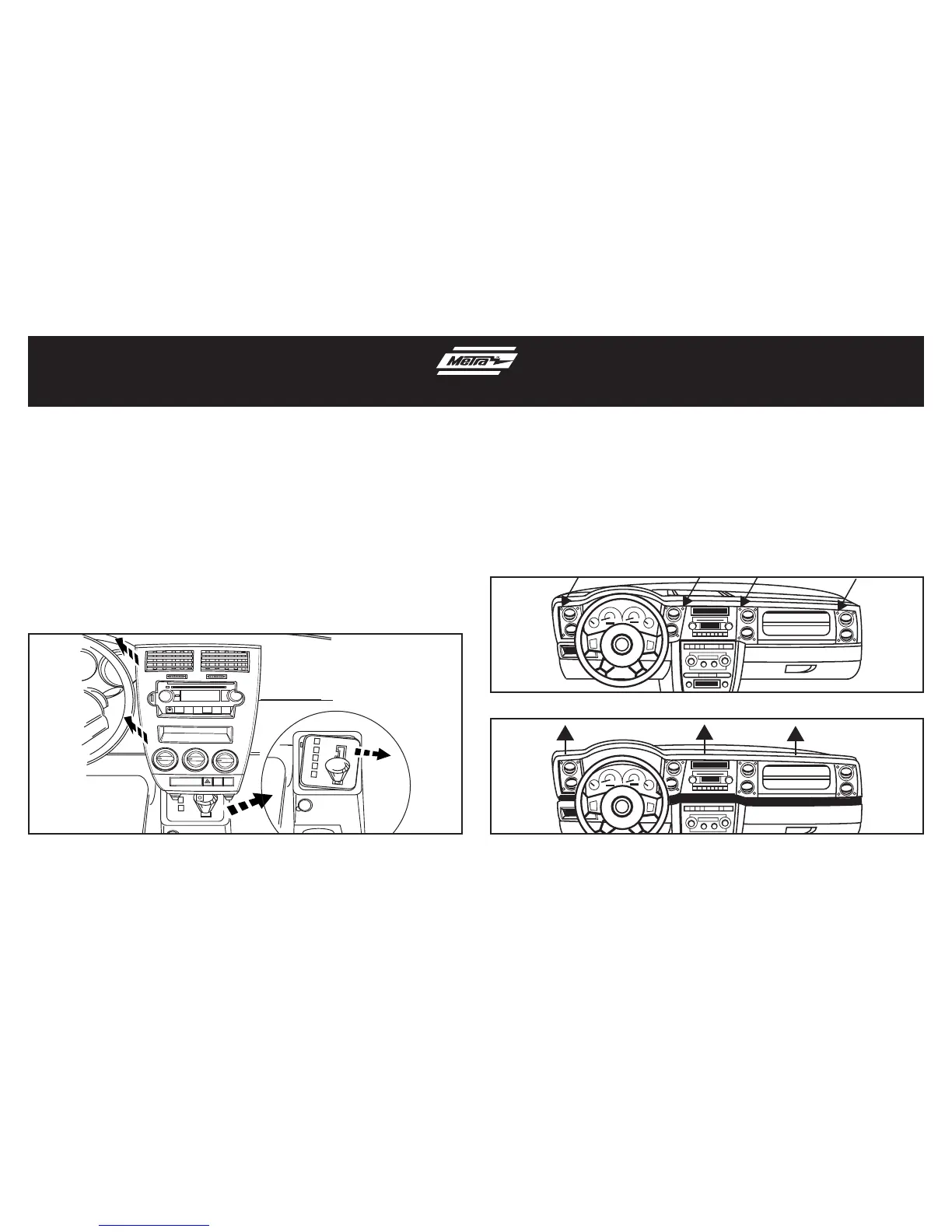

1. Unsnap and move shifter trim to the
side. (Figure A)
2. Unsnap and remove top center dash
panel above A/C vents (Compass and
Patriot only).
3. Unsnap center dash trim panel (do
not remove until climate controls are
removed). (Figure A)
4. Remove (4) Phillips screws holding
climate control panel to backside of
the center dash panel.
5. Remove (4) 7 mm screws securing
radio. Unplug and remove radio.
Continue to kit assembly
1. Remove the (16) screws securing the radio trim panel. (Figure A)
2. Unclip and remove the entire radio trim panel. (Figure B)
3. Remove (4) 7 mm screws securing radio to dash and remove radio.
Continue to kit assembly
Dodge Caliber/Jeep Compass/
Patriot 2007-2008
Jeep Commander
2006-2007
1
2
34
5
6
L
D
L
D
N
R
P
(Figure A)
(Figure A)
(Figure B)
To Next Page
