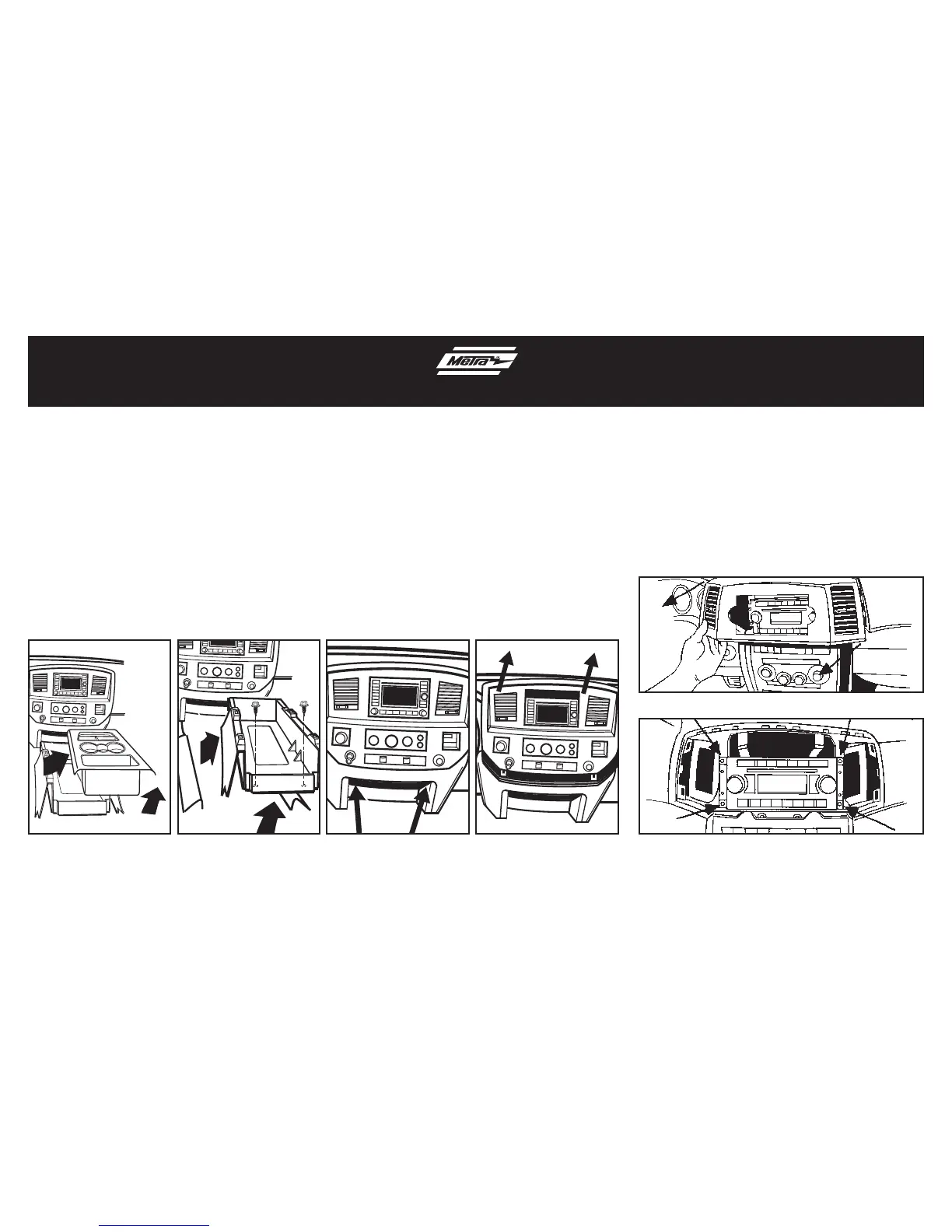

1. If vehicle has floor shifter, remove shifter knob.
2. Unsnap and remove console front top cover (closest
to the dash). (Figure A)
3. Remove two 8 mm screws from under console
cover (previously removed). Remove front section of
console. (Figure B)
4. Loosen two 8 mm screws at bottom of dash.
Unsnap lower panel.
5. Remove (2) Phillips screws facing up on front edge
of radio/climate control panel. (Figure C)
6. Unclip and remove entire panel surrounding radio
and climate controls, including A/C vents. (Figure D)
7. Remove (4) 7 mm screws securing radio to dash
and remove radio.
Continue to kit assembly
Dodge Ram 1500 (with full center console)/
Ram 2500/3500 2006-2008
(Figure A)
1. Unsnap and remove panel from around radio
including the vent on each side. (Figure A)
2. Remove (4) 7 mm screws securing radio to dash
and remove radio. (Figure B)
Continue to kit assembly
Jeep Grand Cherokee
2005-2007
(Figure B)(Figure D)(Figure B) (Figure C)
(Figure A)
Dash Disassembly 99-6510
