Metra Electronics 99-6510 - Kit Assembly Procedures; DIN Radio Provision with Pocket Assembly; ISO Radio Provision with Pocket Assembly

Kit Assembly 99-6510
1. Slide the DIN cage into the radio
housing and secure by bending
the metal locking tabs down.
(Figure A)
2. Slide the aftermarket radio into the
cage until secure. (Figure B)
3. Snap the pocket into the radio
housing. (Figure C)
4. Locate the factory wiring harness
in the dash. Metra recommends
using the proper mating adapter
from Metra or AXXESS. Re-connect
the negative battery terminal and
test the unit for proper operation.
5. Reassemble dash in reverse order
of disassembly.
1. Mount the ISO Brackets to the
radio with the screws supplied
with the unit. (Figure A)
2. Slide the radio into the radio
opening until the side clips engage.
(Figure B)
3. Snap the ISO Trim Plate into the
radio housing. (Figure C)
4. Snap the pocket into the radio
housing. (Figure C)
5. Locate the factory wiring harness
in the dash. Metra recommends
using the proper mating adapter
from Metra or AXXESS. Re-connect
the negative battery terminal and
test the unit for proper operation.
6. Reassemble dash in reverse order
of disassembly.

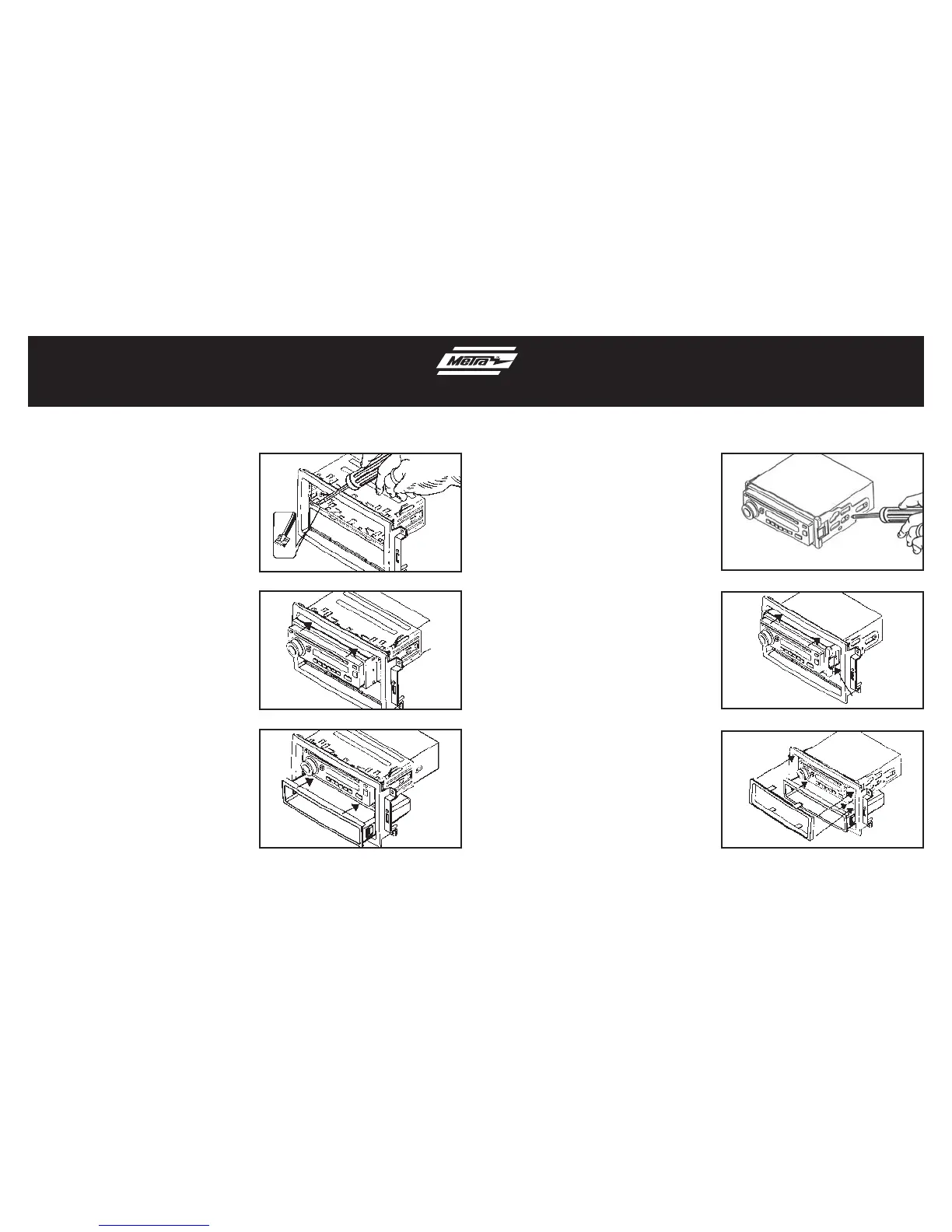

DIN radio provision with pocket ISO radio provision with pocket
(Figure A)
(Figure C)
(Figure B)
(Figure A)
(Figure C)
(Figure B)
right side clip
