REV. 8/10/2018 INST99-6520B
5

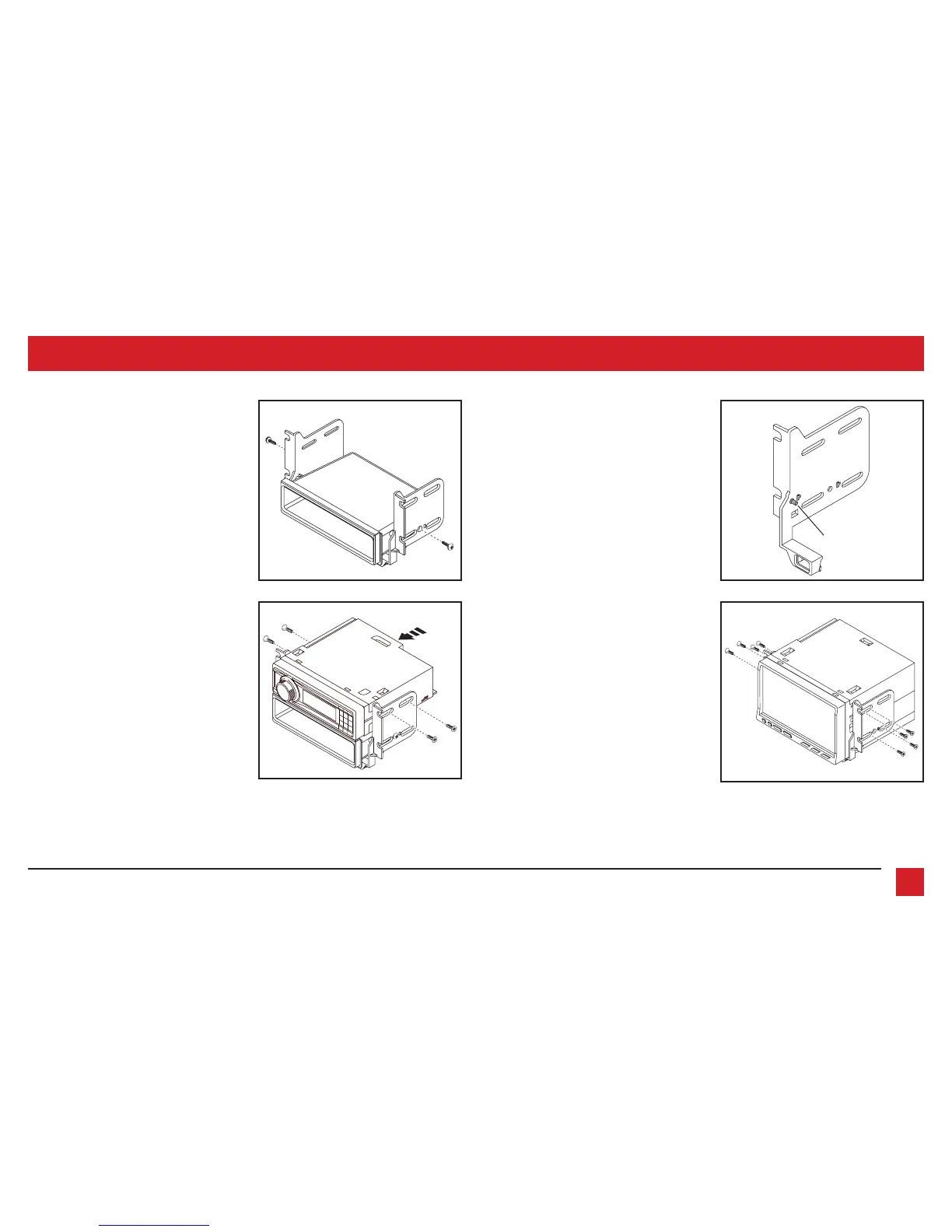

KIT ASSEMBLY
ISO DIN radio provision with pocket
1. Secure the
radio brackets
to the
pocket
using the (2) #8 x 3/8” Phillips screws
provided. (Figure A)
Note: Pins on brackets will align with
front mounting hole of pocket.
2. Remove the metal DIN sleeve and trim
ring from the aftermarket radio.
3. Slide the radio into the bracket/pocket
assembly, then secure it to the assembly
using the screws supplied with the
radio. (Figure B)
Continue to Axxess Interface Installation
ISO DDIN radio provision
1. Break the small locating pin from the
inside surface of each bracket.
(Figure A)
2. Secure the
radio brackets
to the radio
using the screws supplied with the
radio. (Figure A)
Continue to Axxess Interface Installation
(Figure A) (Figure A)
(Figure B)
(Figure B)
Remove pin
