Metra Electronics 99-7516B - Dash Disassembly; Dash Panel Removal Steps 1-3

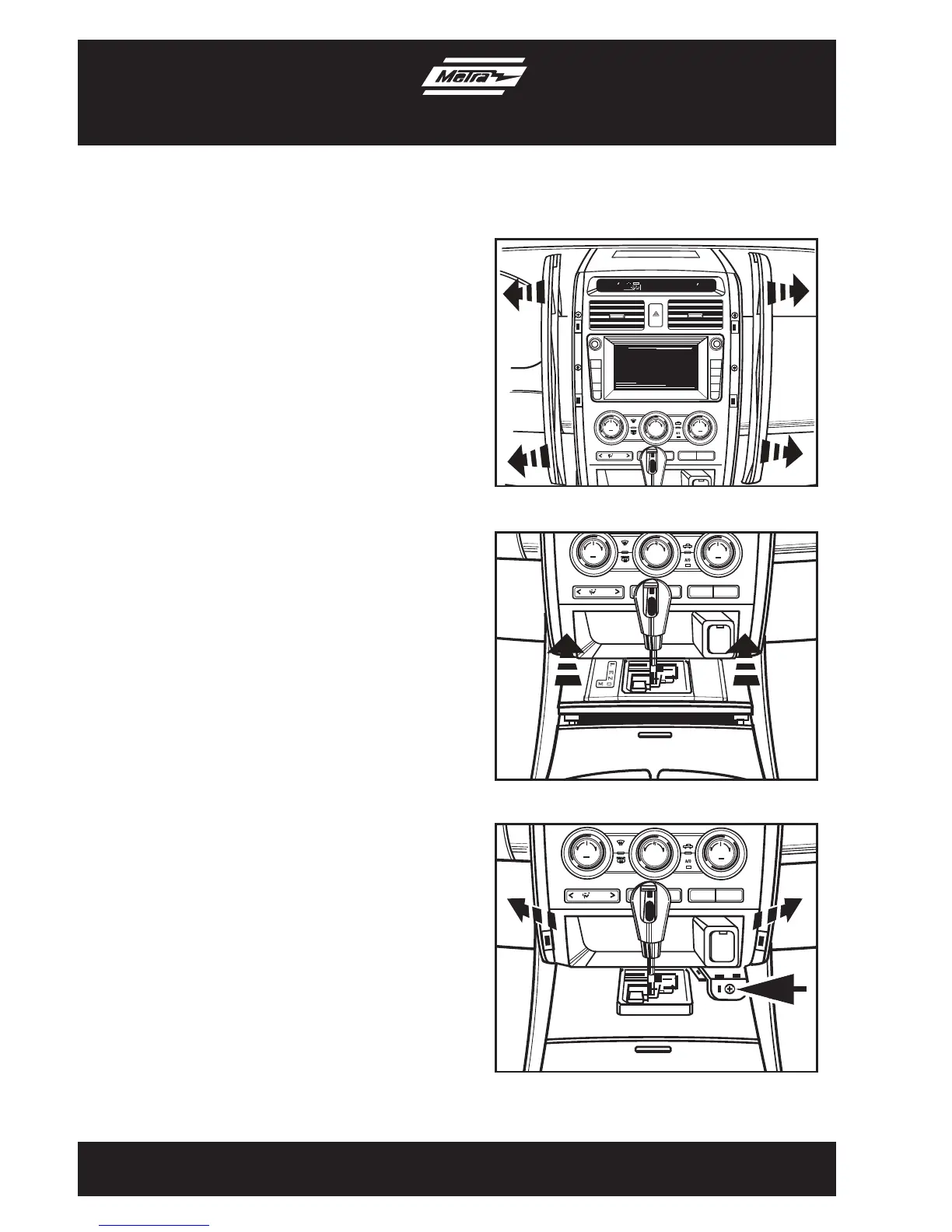

1. Unclip and remove both side panels
from center radio trim panel.
(Figure A)
2. Unclip and remove the shifter trim
panel. (Figure B)
3. Remove (1) Phillips screw from the
accessory socket trim panel then unclip
and remove the panel. (Figure C)
Continued on next page
3
Dash Disassembly
99-7516B
73
73
883
0FM1ch1
VOL
PUSH POWER
TUNE
PUSH AUDIO
LOAD/
SOURCE
SCAN
INFO
RETURN
MENU
DISP
MAP
VOICE
SEEK
TRACK
PUSH
AUTO ON
PUSH
OFF
PUSH
DUAL
PASS
A/C
LO
HI
FRONT
REAR
MODE
OUTSIDE
TEMP
P
R
N
D
M
73
73
883
0FM1ch1
VOL
PUSH POWER
TUNE
PUSH AUDIO
LOAD/
SOURCE
SCAN
INFO
RETURN
MENU
DISP
MAP
VOICE
SEEK
TRACK
PUSH
AUTO ON
PUSH
OFF
PUSH
DUAL
PASS
A/C
LO
HI
FRONT
REAR
MODE
OUTSIDE
TEMP
P
R
N
D
M
73
73
883
0FM1ch1
VOL
PUSH POWER
TUNE
PUSH AUDIO
LOAD/
SOURCE
SCAN
INFO
RETURN
MENU
DISP
MAP
VOICE
SEEK
TRACK
PUSH
AUTO ON
PUSH
OFF
PUSH
DUAL
PASS
A/C
LO
HI
FRONT
REAR
MODE
OUTSIDE
TEMP
(Figure A)
(Figure B)
(Figure C)
