KIT ASSEMBLY
ISO DIN radio provision with pocket
1. Attach the radio brackets to the radio
trim panel with touchscreen using the
(4) #8 x 3/8” Phillips screws supplied.
(Figure A)
2. Attach the pocket to the radio brackets
using the (4) #8 x 3/8” Phillips screws
supplied. (Figure B)
3. Remove the metal DIN sleeve and trim
ring from the aftermarket radio.
4. Slide the radio into the radio bracket
assembly and secure with screws
supplied with the radio. (Figure C)
Continue to Axxess Interface
Installation

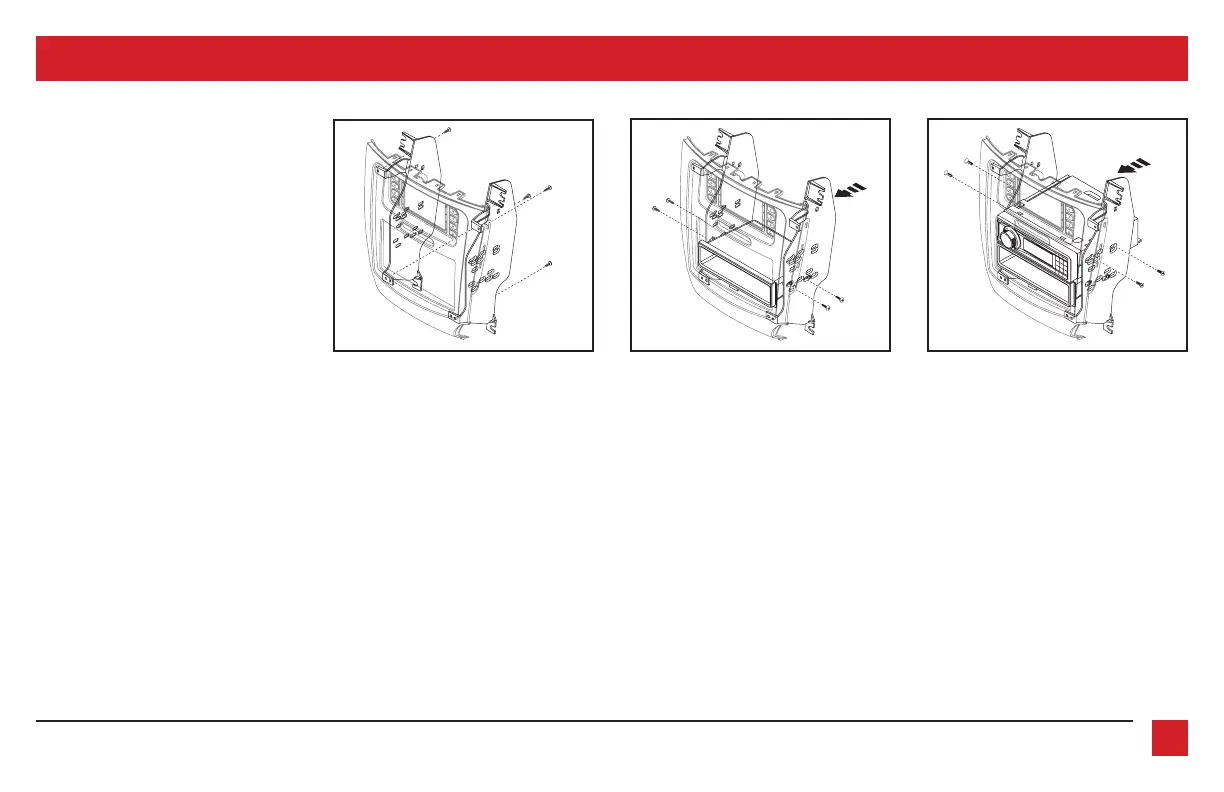

(Figure A) (Figure B) (Figure C)
