4

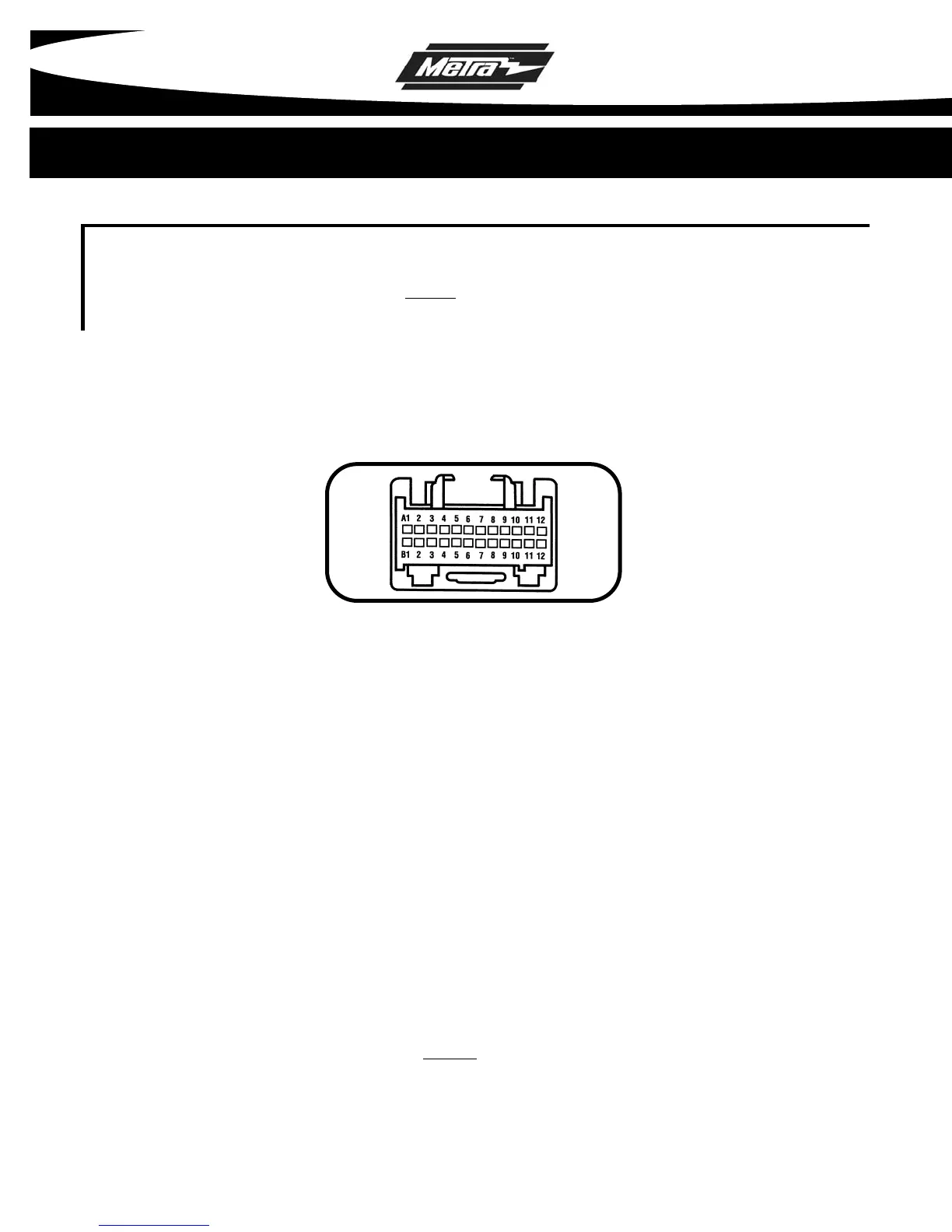

24 - Way GM Plug
For the vehicles listed above use the Green wire on the SWC-01 and set the CAR DIP
Switch settings as follows:
Dip 1 Dip 2 Dip 3 Dip 4 Dip 5 Dip 6 Dip 7 Dip 8
Up Down Up Up Up Down Up Up
SWC-01
(GM Continued From Previous Page)
Year Make Model Pin Wire Additional Wiring Needed
Location Color
2002-05 Buick Rendezvous A7 Dk. Blue Connect A6, Purple, to a 12 volt
accessory wire
2003-05 Chevy Blazer A7 Dk. Blue Connect A6, Dk. Green, to chassis
ground
2000-05 Chevy Impala A7 Dk. Blue Connect A6, Pink, to chassis ground
2000-05 Chevy Monte Carlo A7 Dk. Blue Connect A6, Pink, to chassis ground
2003-04 Chevy S10 A7 Dk. Blue Connect A6, Dk. Green, to chassis
ground
2003 GMC Jimmy A7 Dk. Blue Connect A6, Dk. Green, to chassis
ground
2002 Oldsmobile Intrigue A7 Dk. Blue Connect A6, Purple, to chassis ground
2005 Pontiac G6 A9 Dk. Blue Connect A10, White/Black, to
chassis ground
2001-04 Oldsmobile Alero A7 Lt. green Connect A6, Pink, to chassis ground
2001-05 Pontiac Grand Am A7 Lt. green Connect A6, Pink, to chassis ground
For the vehicles listed above use the Green wire on the SWC-01 and set the CAR DIP
Switch settings as follows:
Dip 1 Dip 2 Dip 3 Dip 4 Dip 5 Dip 6 Dip 7 Dip 8
Down Down Up Up Up Down Up Up
To Next Page
