A 1532 XA EVSE adapter Adapter description
7
3 Adapter description

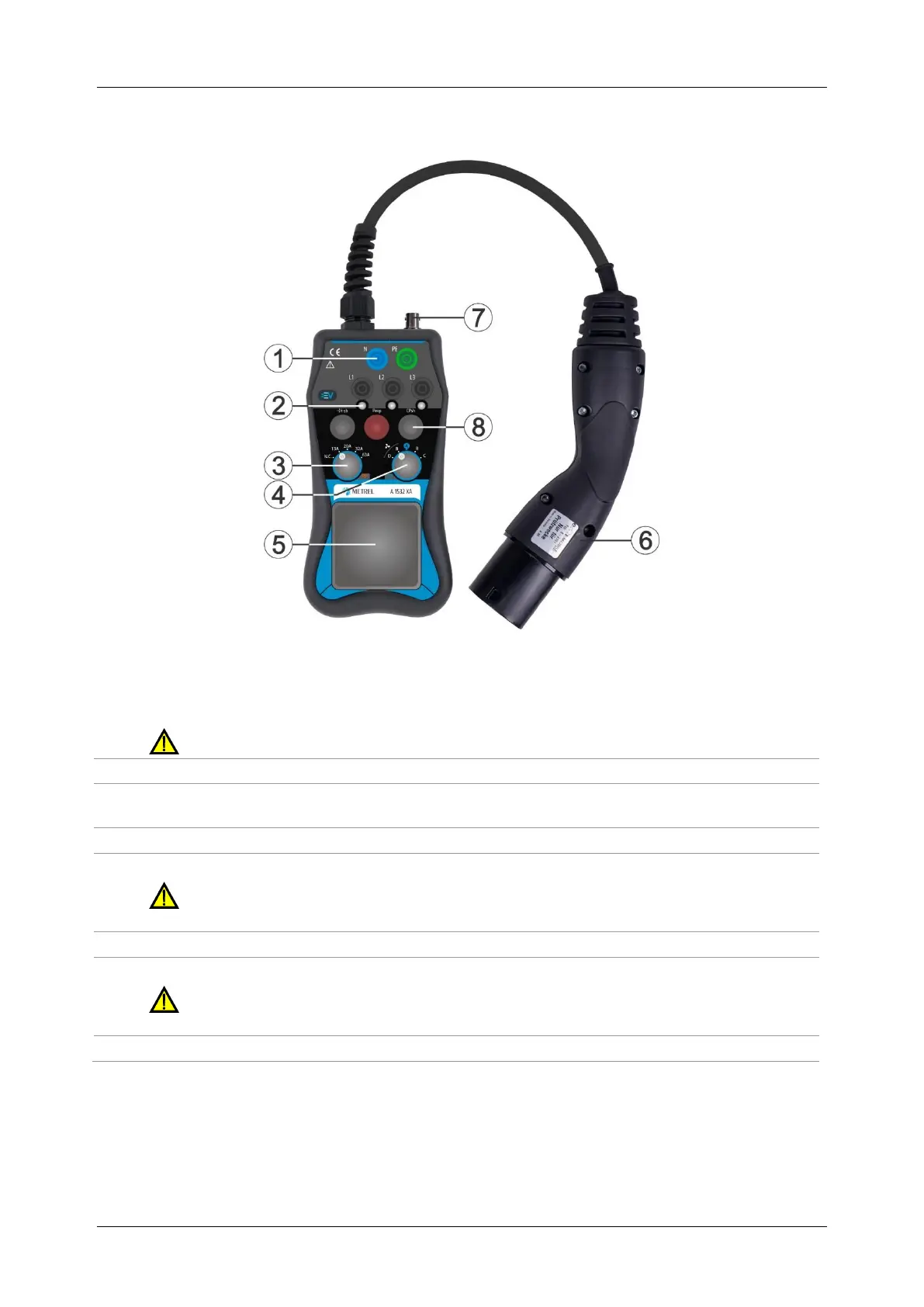

Figure 3.1: A 1532 XA components
Legend:
1
Banana socket outputs for connection to 3-phase installation tester or load
Banana socket outputs are intended for test purposes only!
2
Voltage on EVSE output indicators
3
Proximity Pilot (PP STATE) resistance (current code) selector for simulation of EV cable
presence and current rating detection
4
Control Pilot (CP STATE) resistance selector for simulation of electric vehicle status
5
Socket output for connection to single-phase installation tester or load
Socket output is intended for test purposes only! Do not use it as power
supply extender!
6
Type 2 Male Plug connector for connection to EVSE.
7
BNC output connector for checking Control Pilot (CP) signal
BNC output connector is intended for connection to oscilloscope for test
purposes only!
8
Push buttons for simulation of faults on CP circuit and PE
Warning:
 Socket output and banana socket outputs are energized when one or more
indicators (2) lit.

METREL A 1532 XA Specifications

General Data

input voltage	up to 250 V (1-phase), up to 430 V (3-phase)
frequency	50 Hz, 60 Hz
maximum test current	267 A (10 ms) intermittent operation
maximum load current	13 A, continuous operation
resistance BNC case to PE	100 kΩ
resistance BNC contact to CP	100 kΩ
altitude	up to 3000 meters above sea level

Operating Conditions

working temperature range	0 °C … 40 °C
maximum relative humidity (operation)	95 %RH (0 °C … 40 °C), non-condensing
storage temperature range	-10 °C … +70 °C
maximum relative humidity (storage)	90 %RH (-10 °C … +40 °C), 80 %RH (40 °C … 60 °C)

Weight and Dimensions

dimensions	10 cm × 7 cm × 25 cm
test lead(s) length	0.5 m
weight	0.90 kg
