METREL A 1532 XA User Manual

A 1532 XA EVSE adapter A 1532 XA operation
8
4 A 1532 XA operation
Connections

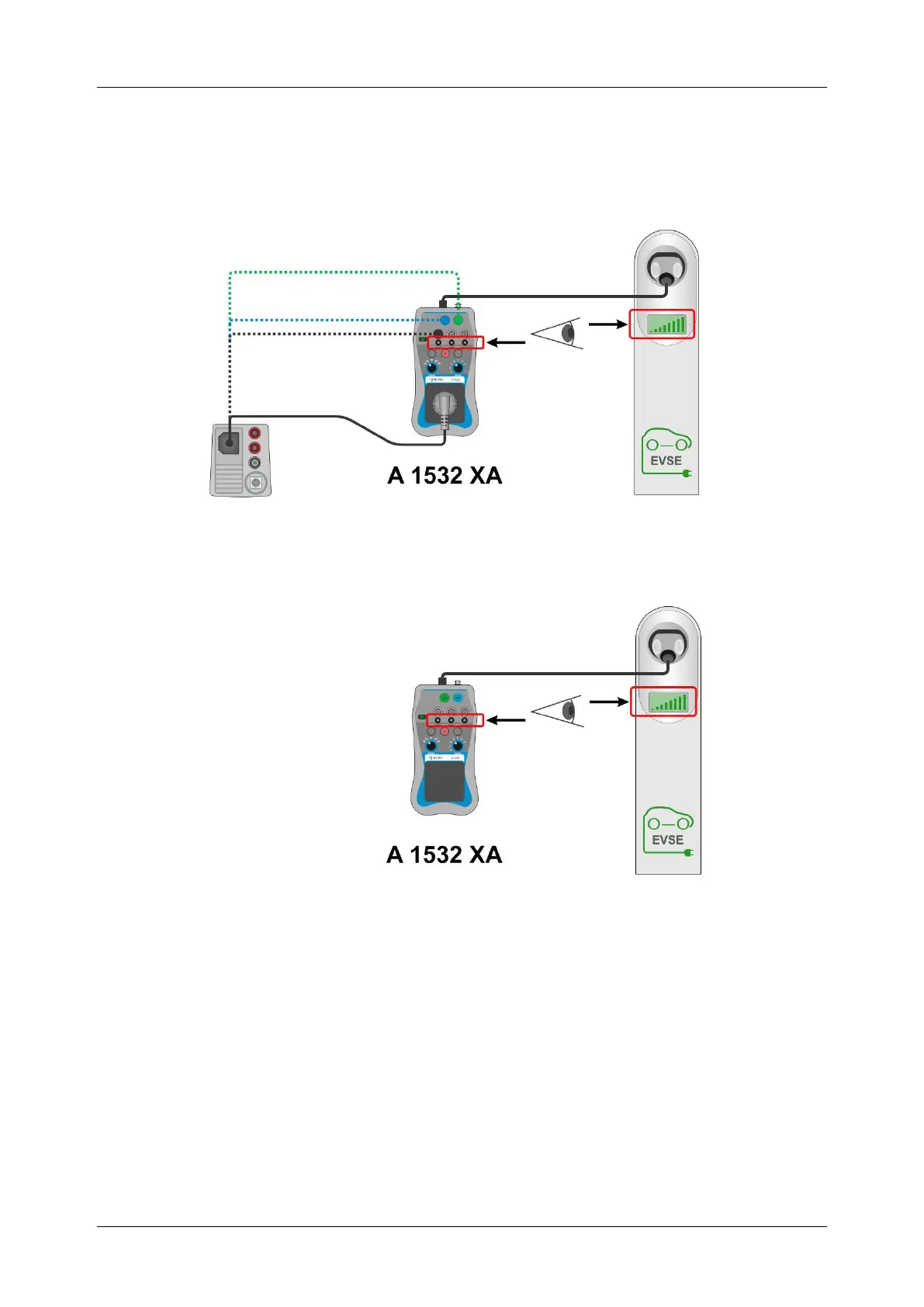

Figure 4.1: A 1532 XA connection to EVSE and Metrel installation tester – safety tests
Figure 4.2: A 1532 XA connection to EVSE – functional tests

METREL A 1532 XA Specifications

General Data

input voltage	up to 250 V (1-phase), up to 430 V (3-phase)
frequency	50 Hz, 60 Hz
maximum test current	267 A (10 ms) intermittent operation
maximum load current	13 A, continuous operation
resistance BNC case to PE	100 kΩ
resistance BNC contact to CP	100 kΩ
altitude	up to 3000 meters above sea level

Operating Conditions

working temperature range	0 °C … 40 °C
maximum relative humidity (operation)	95 %RH (0 °C … 40 °C), non-condensing
storage temperature range	-10 °C … +70 °C
maximum relative humidity (storage)	90 %RH (-10 °C … +40 °C), 80 %RH (40 °C … 60 °C)

Weight and Dimensions

dimensions	10 cm × 7 cm × 25 cm
test lead(s) length	0.5 m
weight	0.90 kg
