A 1532 XA EVSE adapter A 1532 XA operation
9

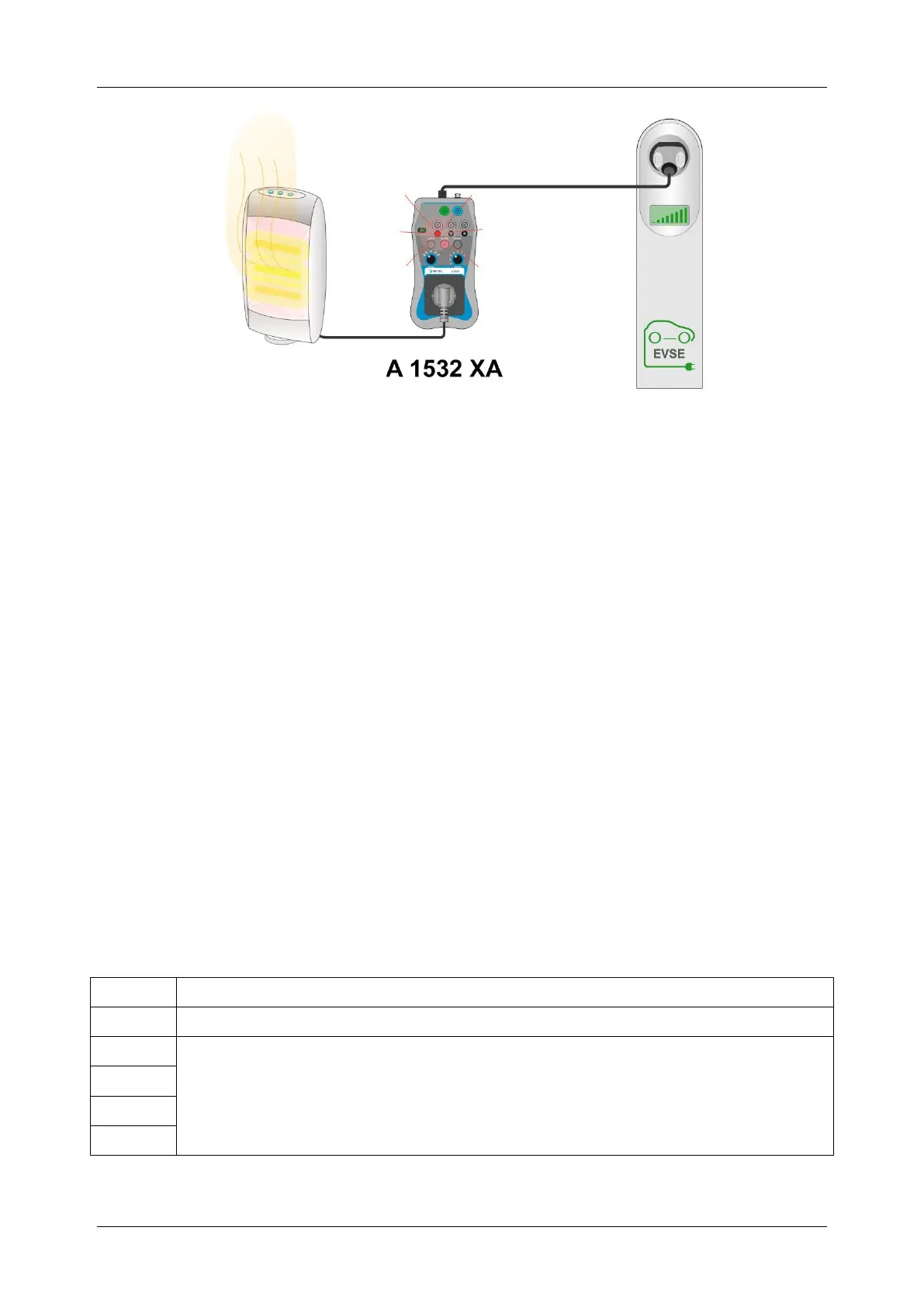

Figure 4.3: A 1532 XA connection to EVSE and test load – load test
Safety and functional tests:
 Connect the A 1532 XA output to the installation tester (via mains test socket or via
safety banana sockets)
 Set PP STATE (3) to position N.C. and CP STATE (4) to position A.
 Connect A 1532 XA plug (6) to the EVSE.
 Run installation tests for non-energized installation circuits.
 Simulate different charging conditions with PP STATE (3) and CP STATE (4). Verify the
response of the EVSE.
 In PP STATE (3) position different to N.C. and CP STATE (4) position in C or D, the
EVSE output is energized (indicated by one or more (2) Voltage on EVSE indicators).
 Run installation tests for energized installation circuits.
 Run load test with maximum 13 A.
 Set CP STATE (4) to position A to de-energize EVSE, before disconnecting A 1532 XA
plug (6) from EVSE.
Note:
 Only phase L1 of 3-phase EVSE is accessible through test socket (5).
 For the load test, mains socket or L1, L2, L3, N terminals can be used.
PP STATE options
Position
Simulates
N.C.
Error condition or disconnection of plug
13 A
Coding for maximum current of the EV cable.
EVSE is connected and can operate in any of these coding position.
20 A
32 A
64 A

METREL A 1532 XA Specifications

General Data

input voltage	up to 250 V (1-phase), up to 430 V (3-phase)
frequency	50 Hz, 60 Hz
maximum test current	267 A (10 ms) intermittent operation
maximum load current	13 A, continuous operation
resistance BNC case to PE	100 kΩ
resistance BNC contact to CP	100 kΩ
altitude	up to 3000 meters above sea level

Operating Conditions

working temperature range	0 °C … 40 °C
maximum relative humidity (operation)	95 %RH (0 °C … 40 °C), non-condensing
storage temperature range	-10 °C … +70 °C
maximum relative humidity (storage)	90 %RH (-10 °C … +40 °C), 80 %RH (40 °C … 60 °C)

Weight and Dimensions

dimensions	10 cm × 7 cm × 25 cm
test lead(s) length	0.5 m
weight	0.90 kg
