Page 10 of 34
File Name: Doc#586p.docx
PART VI: OPERATOR INTERFACE DEVICE (OID) USE AND NAVIGATION
The Operator Interface Device (OID) provides visual indication of the alarms, status of system parameters, and an interface to
change set points to configure the FD4 to operate appropriately for various installation requirements.

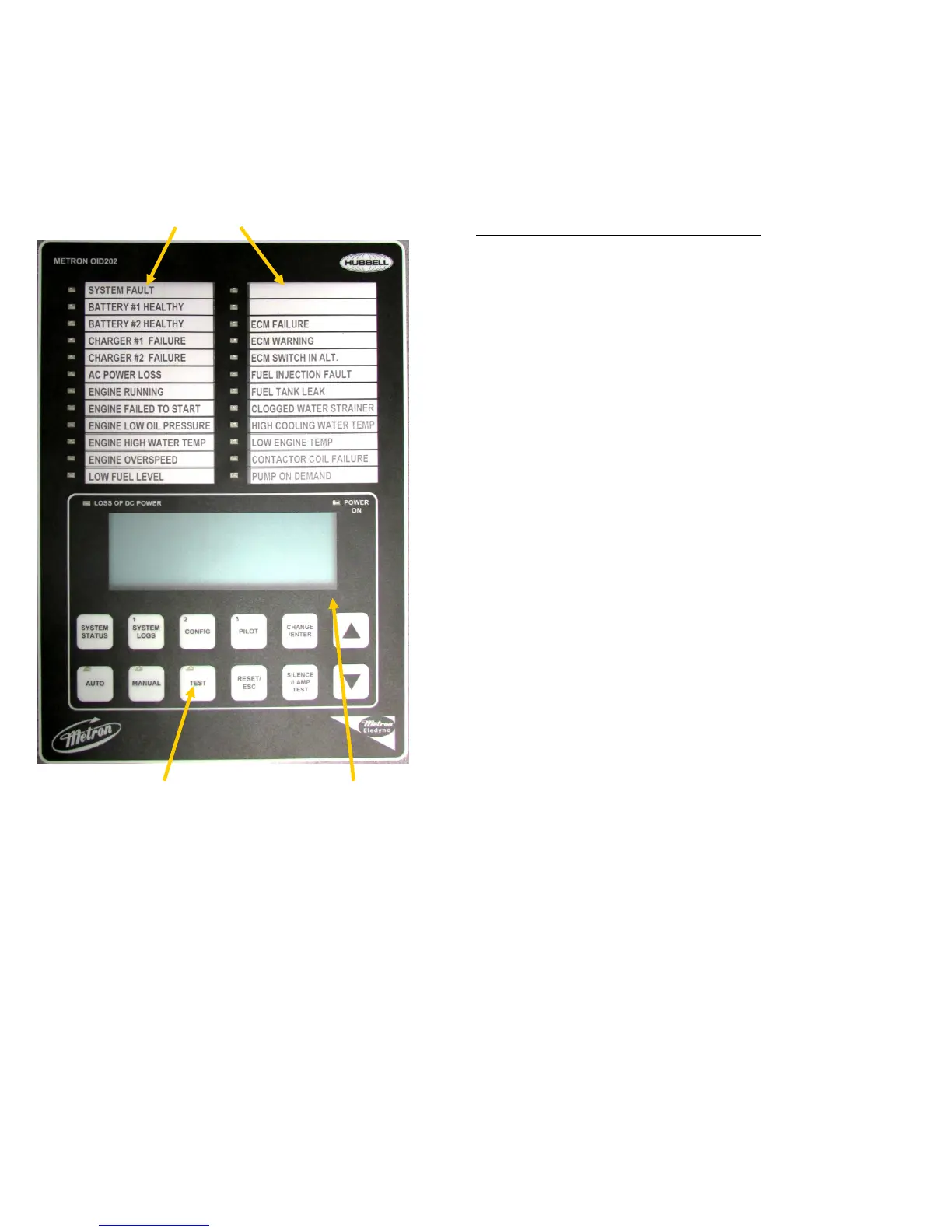

Labeled LED
Annunciator
Common Tasks Performed Using The OID
Silencing Horn: If a horn is sounding and the alarm is silence
able, a quick press of the [SILENCE/LAMP TEST] will silence the
horn (less than 1 second press).
Resetting Alarms: If the alarm condition has cleared, press and
hold the [RESET/ESC] button 2 to 5 seconds to reset alarms.
“Engine Failed to Start” and “Engine Overspeed” alarms require
the system to be in the OFF mode before a reset is allowed.
Test Mode: When controller is in Auto Mode, pressing and
holding the [TEST] button for two or more seconds will open the
pressure drain solenoid thus dropping the pressure which causes
the controller to start the engine. Pressing and releasing the
[TEST] button in Manual Mode will illuminate the lamp on the
button but has no effect on the starting.
Lamp Test: To illuminate and check all the OID LED’s and the
horn, press and hold the [SILENCE/LAMP TEST] button 5 or
more seconds or until all the lights turn on. The lamps will cycle
on for 2 seconds and off for 2 seconds.
System Operation and Digital Display With
Control Type Buttons Navigation Buttons
Sample display only. For general reference only.
