METRON FD4 User Manual

Page 11 of 34
File Name: Doc#586p.docx
2 CONFIG
1) ANALOG SIGNALS
2) AUXILLIARY ALARMS
1 CONFIG
1) SYSTEM SETPOINTS
2) USER PREFERENCES
3) TECH SCREENS
# 1 EVENT DETAILS
System in Off
Mode Occurred
02/16/03 13:15:15
# 1 EVENT LOG
System in Off
Mode Occurred
02/16/03 13:15:15
# 1 EVENT DETAILS
Pressure: 83.2psi
System Auto:Yes
Engine Running:No
# 1 EVENT DETAILS
Charger #1 OK:Yes
Charger #2 OK:Yes
Battery #1 OK:Yes
# 1 EVENT DETAILS
Battery #2 OK:Yes
AC Power Avail:Yes
Low Fuel Level:No
# 2 EVENT LOG
Engine Failed To
Start Alarm Occurred
02/16/03 07:32:15
# 3 EVENT LOG
AC Power Failure
Alarm Cleared
02/16/03 07:09:48
PRESSURE LOG
02/16/03 17:52:45
112 psi
Skip Rate:[EACH ]
PRESSURE LOG
02/16/03 17:52:30
112 psi
Skip Rate:[EACH ]
PRESSURE LOG
02/16/03 17:52:15
113 psi
Skip Rate:[EACH ]
SYSTEM LOGS
1) Event Log
2) Pressure Log
1 SYSTEM STATUS B1
PRES STRT BAT1 BAT2
110 100 13V 13V
psi psi 6A 0A
3 SYSTEM STATUS
Engine Countdown Tmr
For AC Power Outage
0min Until Start
2 SYSTEM STATUS
Engine Countdown Tmr
0sec Until Start
0min Until Stop
5 SYSTEM STATUS
Firmware Ver SV 1.1
Commissioned Date:
11/15/02
4 SYSTEM STATUS
Engine Hrs: 5.3
# Of Starts: 8
Mon02/17/03 17:53:26
Continued on next
page.
| |
| |
| |
| |
| |
| |
AUTO MANUAL TEST
STATUS
SYSTEM
LOGS
SYSTEM
1
CONFIG
2
METRON OID202
SILENCE
TEST
/LAMP
POWER
PILOT
3
ENTER
CHANGE/
ESC
RESET/
6 SYSTEM STATUS
Extended Voltage
BAT 1 27.10 0.00A
BAT 2 27.05 0.00A
ON
LOSS OF DC POWER

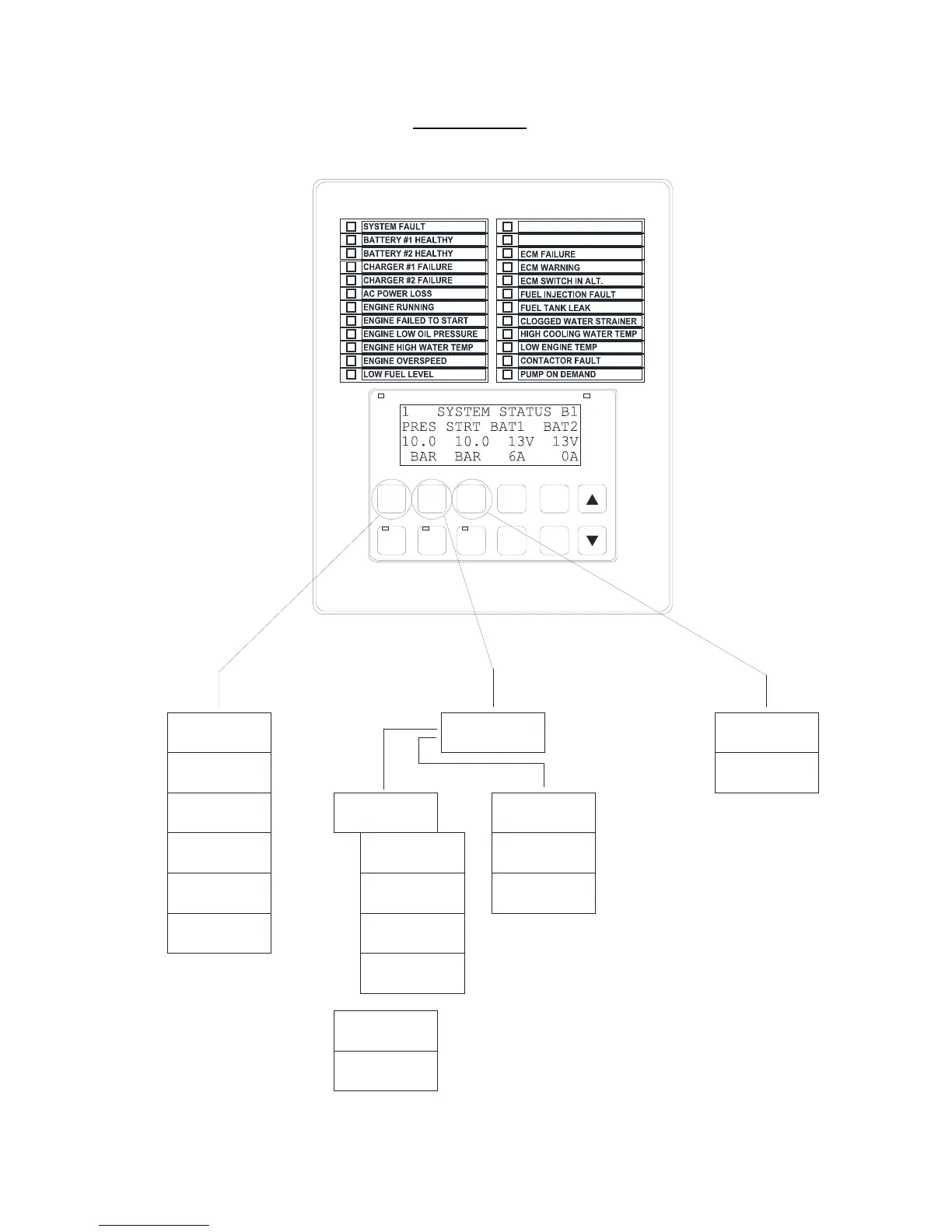

OID Screen Map
