5.9 Ethernet communication (UDP interface) [X18]
The UDP communication enables the connection of the ARS 2300 FS servo positioning controller to
the Ethernet fieldbus system. The communication via the UDP interface [X18] is realised with the aid
of a standard cabling.
UDP interface [X18] Values
Function Ethernet, 10/100 MBaud (auto select)
Connector type RJ45
5.10 USB communication [X19]
The ARS 2300 FS servo positioning controller comprises a USB (universal serial bus) communication
interface, which is for connection via PC and for using the parameterisation tool Metronix
ServoCommander
®
.
The USB communication interface requires no auxiliary power supply.

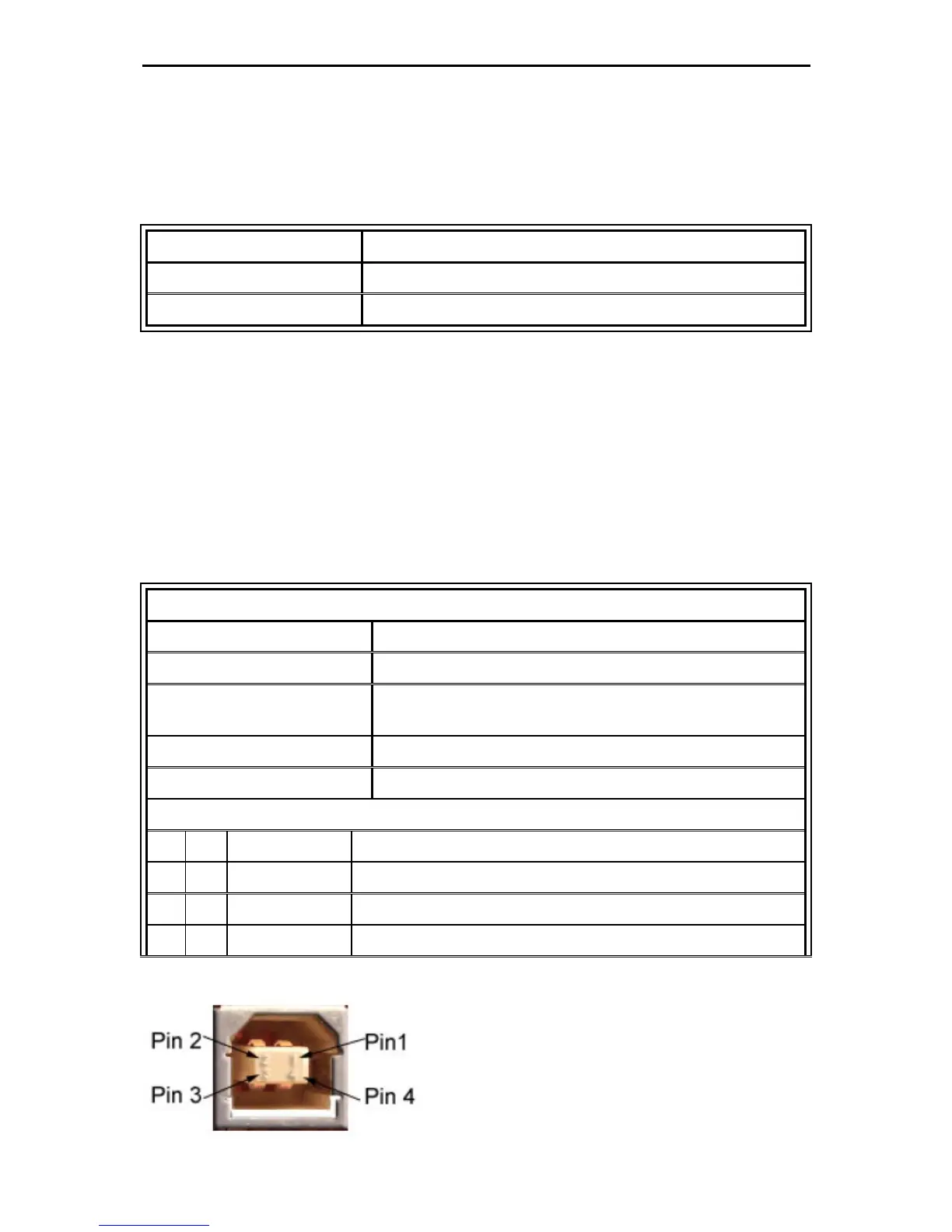

USB interface [X19]
Connector type USB-B
Standard 2.0
Transmission rate Support for both full-speed (12 Mbps) and high-speed (480 Mbps)
modes
Communication protocl Metronix specific (generic device)
Functionality Slave-Client
Pin configuration
1 VCC +5 VDC
2 D- Data -
3 D+ Data +
4 GND Ground
