Metso NelesAce - Pulse Duration Mode Settings; Time Duration Mode Settings; Local Control Mode Settings

8 ACE 71 en 9
4.5.1 Changing pulse duration mode
settings
 To change the step size, scroll the command (Prog.)
line selection slider to 0 (or up to 3, see Table 3).
 Set the new value, step size is indicated in 1/8 steps,
so 4 is same as 1/2-step.
 Push Program it! button, that saves the new settings.
 Close PLC-code window.
 Now pulse duration mode change is finished.
4.5.2 Changing time duration mode settings
 To change the open speed, scroll the command
(Prog.) line selection slider to 32 (or up to 35, see
Table 4).
 Change the Offsetfreq. and Run. Freq. values as
required and press Program it! button, that saves the
new settings.
 On command (Prog.) line 48 (or up to 51, see Table 4)
the close speed can be changed correspondingly.
 Close PLC-code window.
 Now time duration mode change is done.
See Table 2 for different option configurations.
4.5.3 Changing local control mode settings
 To change new speed for opening in the local control
mode, scroll the command (Prog.) line selection slider
to 40 (or up to 47, see Table 5).
 On command (Prog.) line 56 (or up to 63, see Table 5)
the close speed can be changed correspondingly.
 Close PLC-code window.
NOTE:
In pulse duration command lines (move relative), don't
change the Offset and Run frequencies!

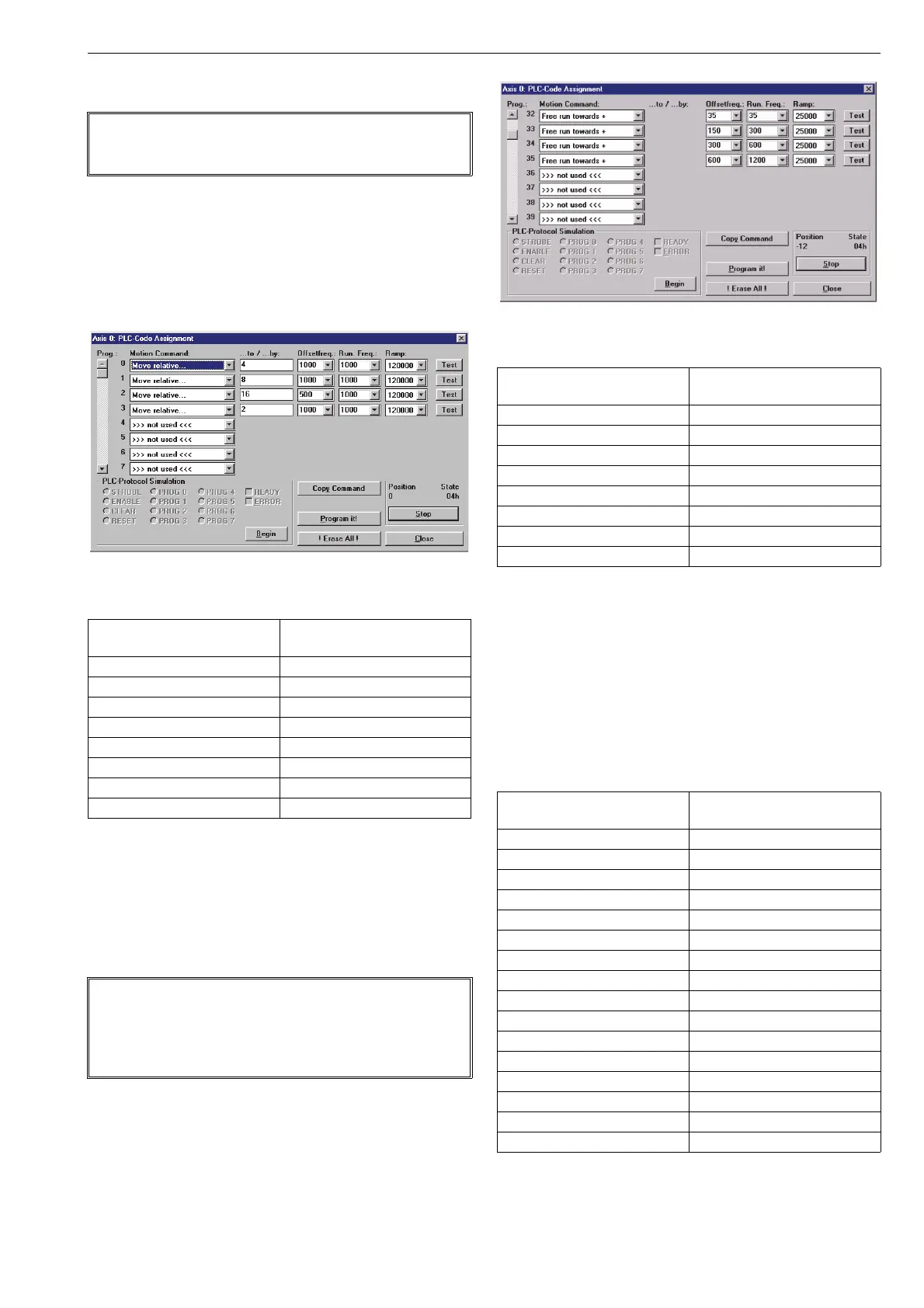

Fig. 13 PLC-code window, pulse duration mode
Table 3 Pulse duration mode
Prog. line
(shown in PLC code window)
Step size and direction
0 1/2 step open
1 1 step open
2 2 steps open
3 1/4 step open
16 1/2 step close
17 1 step close
18 2 steps close
19 1/4 step close
NOTE:
In time duration command lines (Free run), notice that off-
set frequency (Offsetfreq.) must be smaller or equal than
run frequency (Run. Freq.), otherwise the function of the
time duration is not correct.
Fig. 14 PLC-code window, time duration mode
Table 4 Time duration mode
Prog. line
(shown in PLC code window)
Speed and direction
(factory settings)
32 150 Hz open
33 300 Hz open
34 600 Hz open
35 1200 Hz open
48 150 Hz close
49 300 Hz close
50 600 Hz close
51 1200 Hz close
Table 5 Local control mode
Prog. line
(shown in PLC code window)
Action
(factory settings)
40 200 Hz open
41 200 Hz open
42 200 Hz open
43 200 Hz open
44 200 Hz open
45 200 Hz open
46 200 Hz open
47 200 Hz open
56 200 Hz close
57 200 Hz close
58 200 Hz close
59 200 Hz close
60 200 Hz close
61 200 Hz close
62 200 Hz close
63 200 Hz close
