ELECTRIC CONTROL INSTALLATION FOR
OPTIONAL
ON BOARD FLOW CON-
TROLLED SYSTEM
.1 Locate the controller on the tractor where it is ac-
cessible to operate.
.2 Connect the electrical leads to the tractor 12VDC
power source, figure 5.
.3 When hooking up the spreader, connect the con-
troller to the motorized flow control valve at the
twist lok connector.
Page 15 MODEL: VB750

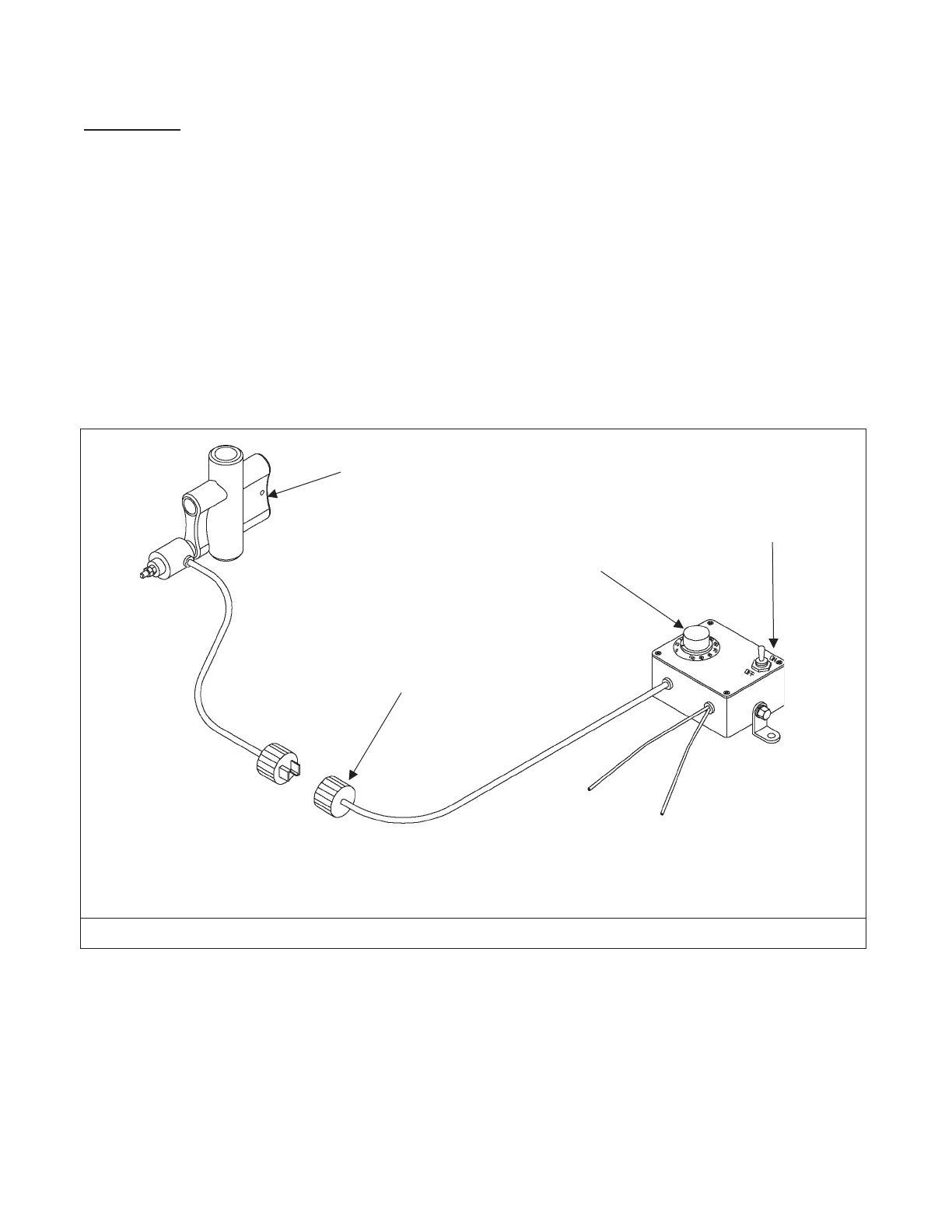

FIGURE 5. ELECTRIC MOTORIZED FLOW CONTROL
MOTORIZED FLOW
CONTROL VALVE
APRON RATE
SPEED
“ON/OFF” SWITCH
TWIST LOK CONNECTOR
CONNECT RED (+) AND BLACK (-) WIRES
TO 12 VDC TRACTOR POWER SOURCE
