750-LFC OPERATING INSTRUCTIONS
7
NOTE: Native mode should not be used with
more advanced configurations, such as those
where 750-LFCs and LINAs are not coplanar, or those
requiring delay offsets to align subsystems or to cre-
ate directional low-frequency control. These systems
require additional processing.
NOTE: For Native mode to work properly, the
source signal must be correctly configured
with the appropriate gain structure.
CAUTION: Make sure that all cabling for
looped loudspeakers is wired correctly (Pin 1
to Pin 1, Pin 2 to Pin 2, etc.) to prevent the polarity
from being reversed. If one or more loudspeakers in a
system have reversed polarity, frequency response
and coverage will be significantly degraded.

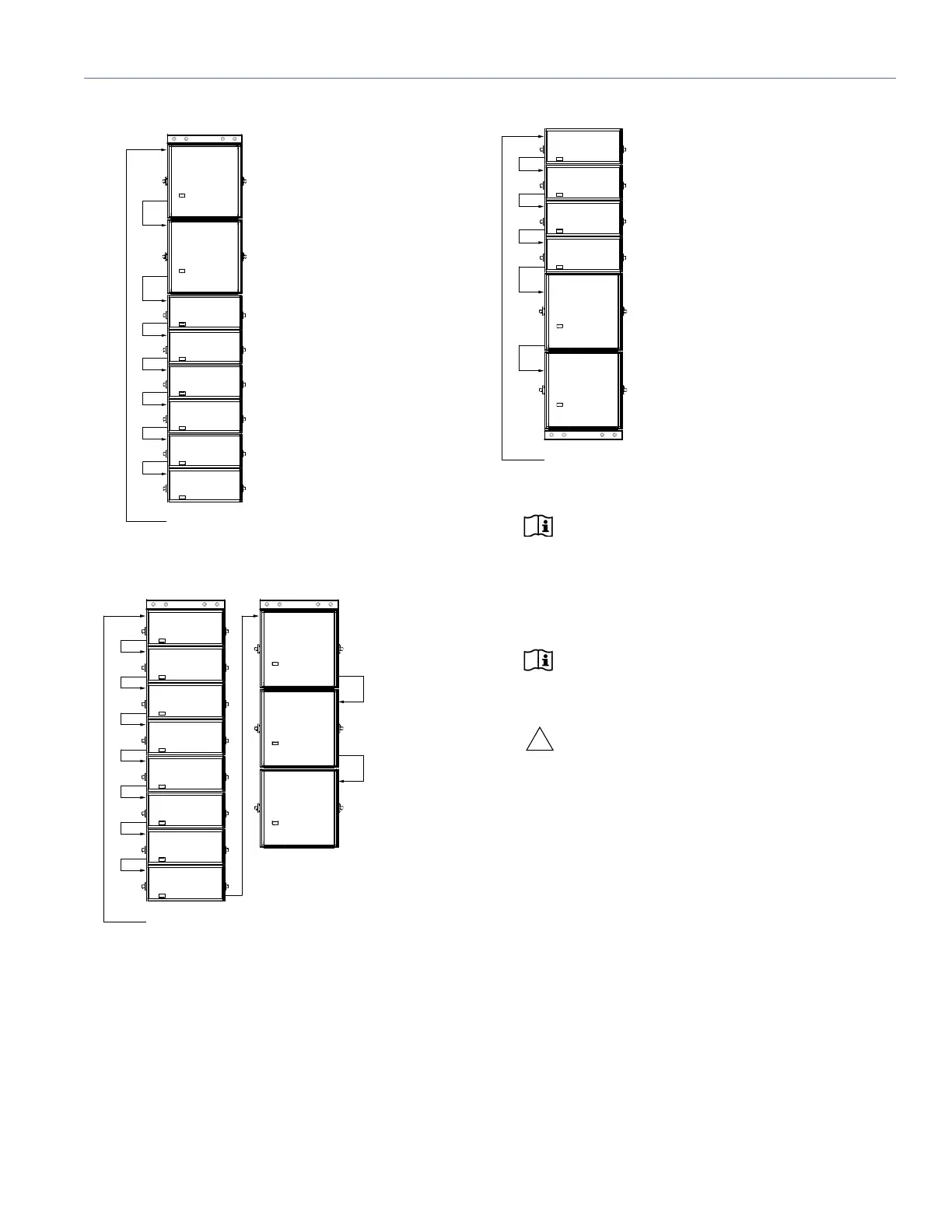

Figure 4: Flown Mixed Array (ratio 3:1)
Figure 5: Flown Separate Arrays (ratio 8:3)
Figure 6: Mixed Groundstack (ratio 2:2)
To Next Page
