MTF-M’ELODIE/MINA TRANSITION FRAME
When using MINA for downfill in M’elodie arrays, the
MTF-M’elodie/MINA transition frame links the bottom
M’elodie to the top MINA. The transition frame can also
transition from 500-HP subwoofers (fitted with rigging
frames) to MINA in flown and groundstacked arrays.
NOTE: For complete information on configura-
tion and load ratings for the MTF-M’elodie/
MINA, as well as for other rigging accessories, refer to
the MG-MINA Assembly Guide (PN 05.207.101.01)
available at www.meyersound.com
.
The MTF-M’elodie/MINA transition frame includes the
required quick-release pins and links for the following transi-
tions:
■ M’elodies flown with MINAs below
■ 500-HPs flown with MINAs below
■ 500-HPs groundstacked with MINAs above
CAUTION: Always use the quick-release pins
included with the MTF-M’elodie/MINA transi-
tion frame to secure loudspeakers to the frame. Do
not use the quick-release pins included with MINA in
the frame as they are shorter and will not lock in
place.

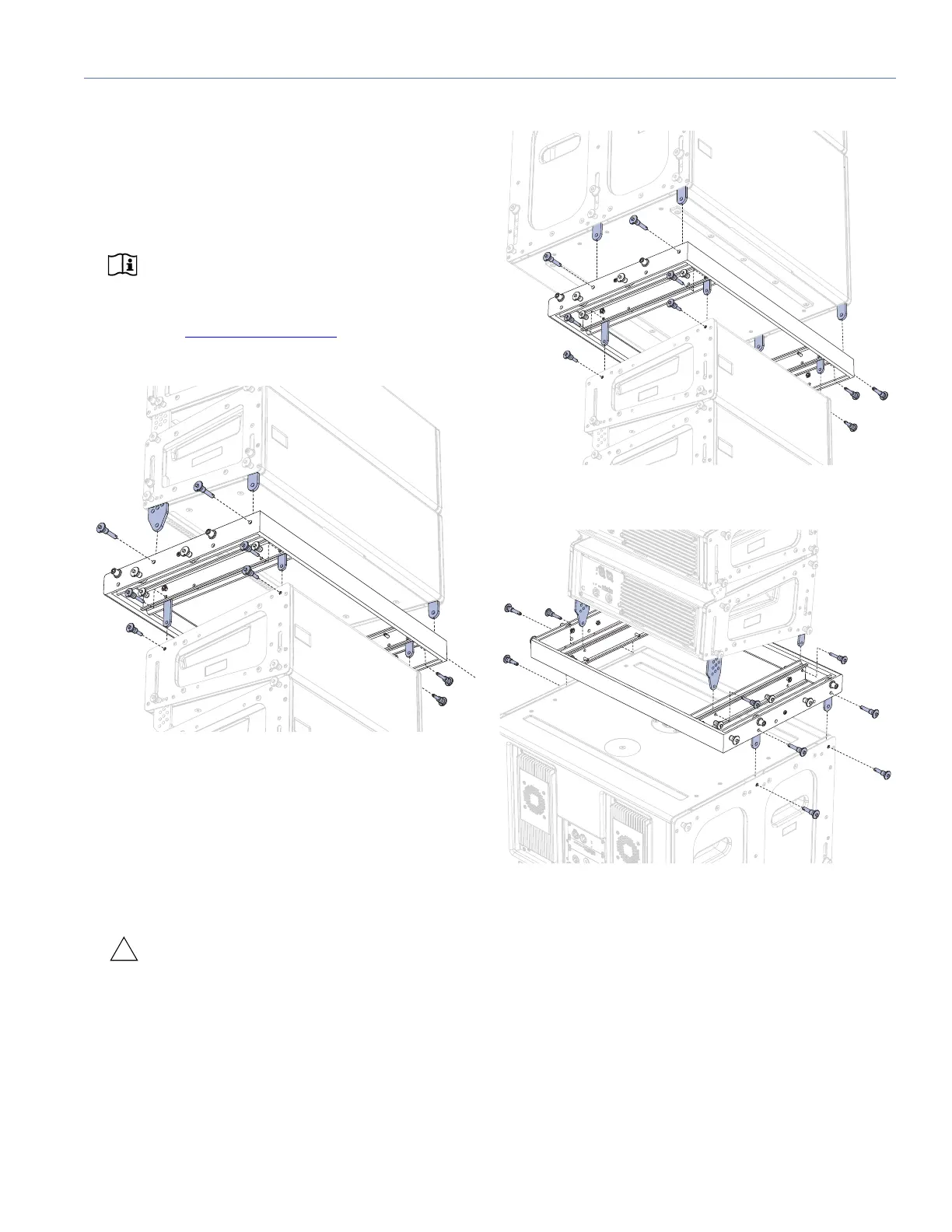

MTF-M’elodie/MINA with Flown M’elodies and MINAs
!
MTF-M’elodie/MINA with Flown 500-HPs and MINAs
MTF-M’elodie/MINA with Groundstacked 500-HPs and MINAs
