Pole-Mounting MINAs with the MYA-MINA
Up to two MINA loudspeakers can be pole-mounted with
the MYA-MINA mounting yoke. For pole-mount applica-
tions, the yoke support up to 30 degrees of downtilt and
severe uptilts of up to 90 degrees. When pole-mounting
MINAs with the yoke, a third-party pole-mount adapter is
required.
CAUTION: When mounting the MYA-MINA on
a pole, make sure the pole and pole-mount
adapter have been rated to support the full weight of
the yoke and loudspeakers. Observe all safety pre-
cautions specified by the pole and pole-mount
adapter manufacturer.
MUB-MINA U-BRACKET
The MUB-MINA U-bracket was primarily designed for aim-
ing a single MINA loudspeaker in floor- and ceiling-mount
configurations. However, the U-bracket is strong enough to
fly arrays of up to three cabinets, or stack up to two cabinets
in floor- and pole-mount configurations. The U-bracket can
also be flown from trusses using C-clamps or equivalent.
For flying and groundstacking larger arrays, the MG-MINA
grid is recommended; for applications requiring continuous
adjustability or greater downtilt and uptilt angles, the
MYA-MINA mounting yoke is recommended.
NOTE: For complete information on configura-
tion and load ratings for the MUB-MINA, as
well as for other rigging accessories, refer to the
MG-MINA Assembly Guide (PN 05.207.101.01) avail-
able at www.meyersound.com
.
The MUB-MINA U-bracket’s mounting holes and mounting
slot provide maximum flexibility for the loudspeaker’s uptilt
and downtilt. For flown applications, the MUB-MINA can be
oriented for either maximum downtilt (with the slot near the
front of the loudspeakers) or maximum uptilt (with the slot
near the rear of the loudspeakers).
■ For a single flown cabinet, the MUB-MINA supports con-
tinuos angles of 0 to –20 degrees in the maximum down-
tilt orientation, and angles of +10 to –10 degrees in the
maximum uptilt orientation.
■ For multiple flown cabinets, the MUB-MINA supports
fixed angles of +10, 0, –5, –10 and –20 degrees (with
either orientation).
NOTE: For multiple flown cabinets, the
MUB-MINA slot is not recommended for vari-
able adjustments since the angle could change over
time due to the weight of the cabinets.
NOTE: For illustrations showing which
MUB-MINA mounting holes and slot configura-
tions to use to achieve specific angles, refer to the
MG-MINA Assembly Guide (PN 05.207.101.01) avail-
able at www.meyersound.com
.

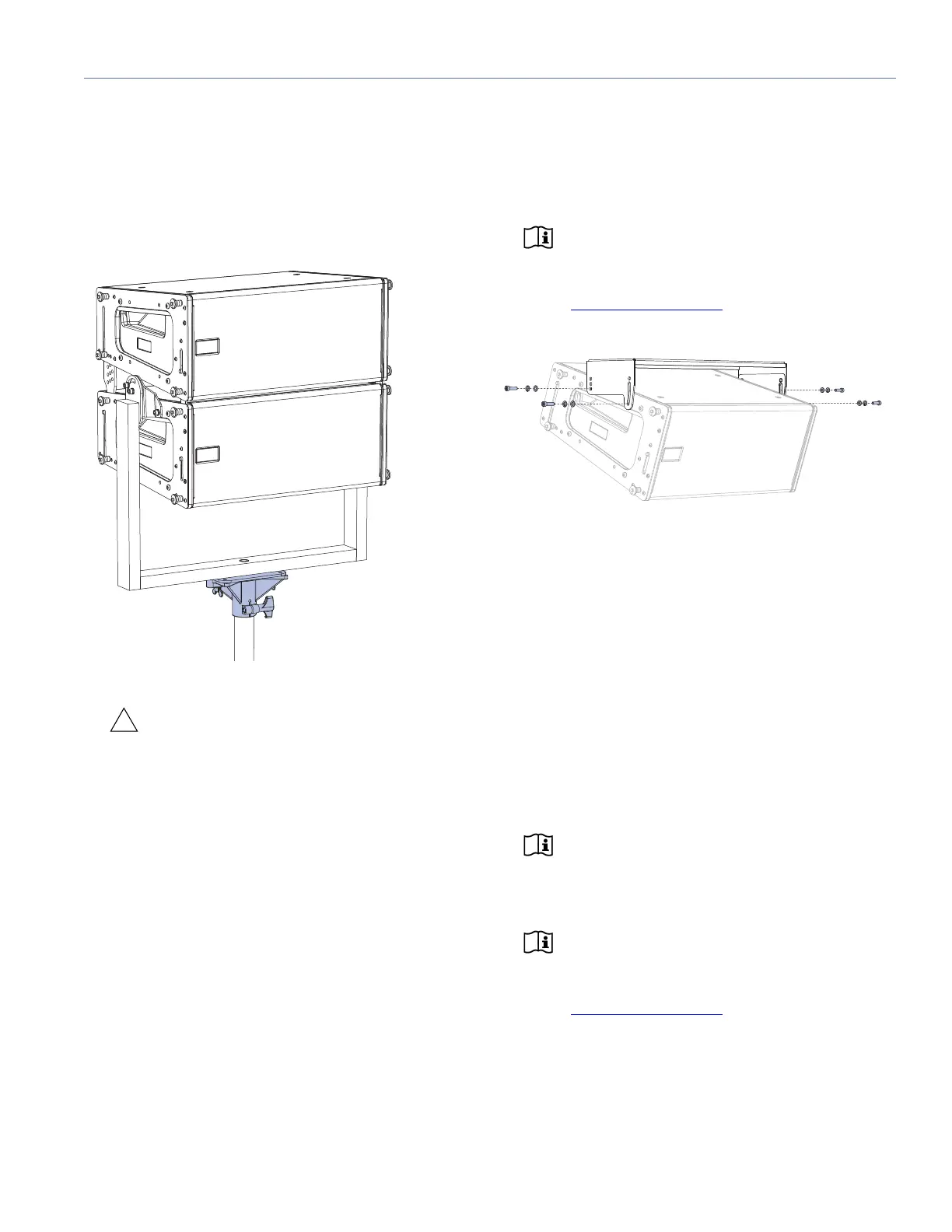

Pole-Mounted MYA-MINA with MPA-2 Adapter and Two MINAs
Ceiling-Mounted MUB-MINA with One MINA
