Meyer ELECTRO LIFT E-46 - Page 17

-15-
PRESSURE RELIEF E-47 1650 + 50 P.S.I. E-57 2000 + 0 P. S .I.
CHECK VALVE
"A" SOLENOID
FILTER
STRAINER
LIFT CYLINDER
"B" SOLENOID

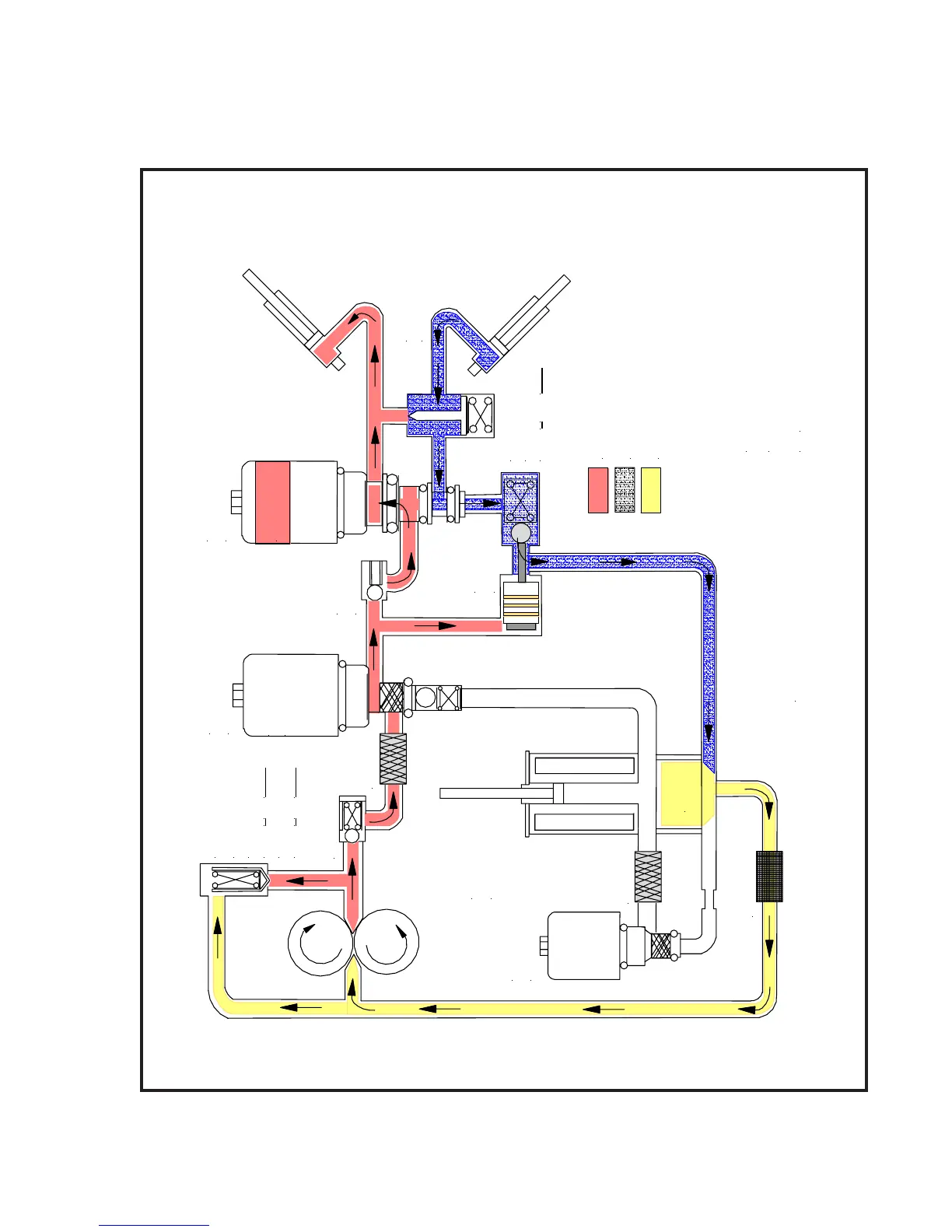

HYDRAULIC FLOW CHART MODELS E-47 & E-57 ANGLE RIGHT
FIGURE 1-5B
- OPERATING - RETURN - INTAKE or DRAIN
"C"
SOLENOID
TANK
CROSSOVER RELIEF 3800 + 400 P.S. I
POWER ANGLING CYLINDERS
CHECK VALVE
FILTER
PILOT CHECK
ENERGIZED
NOT ENERGIZED
