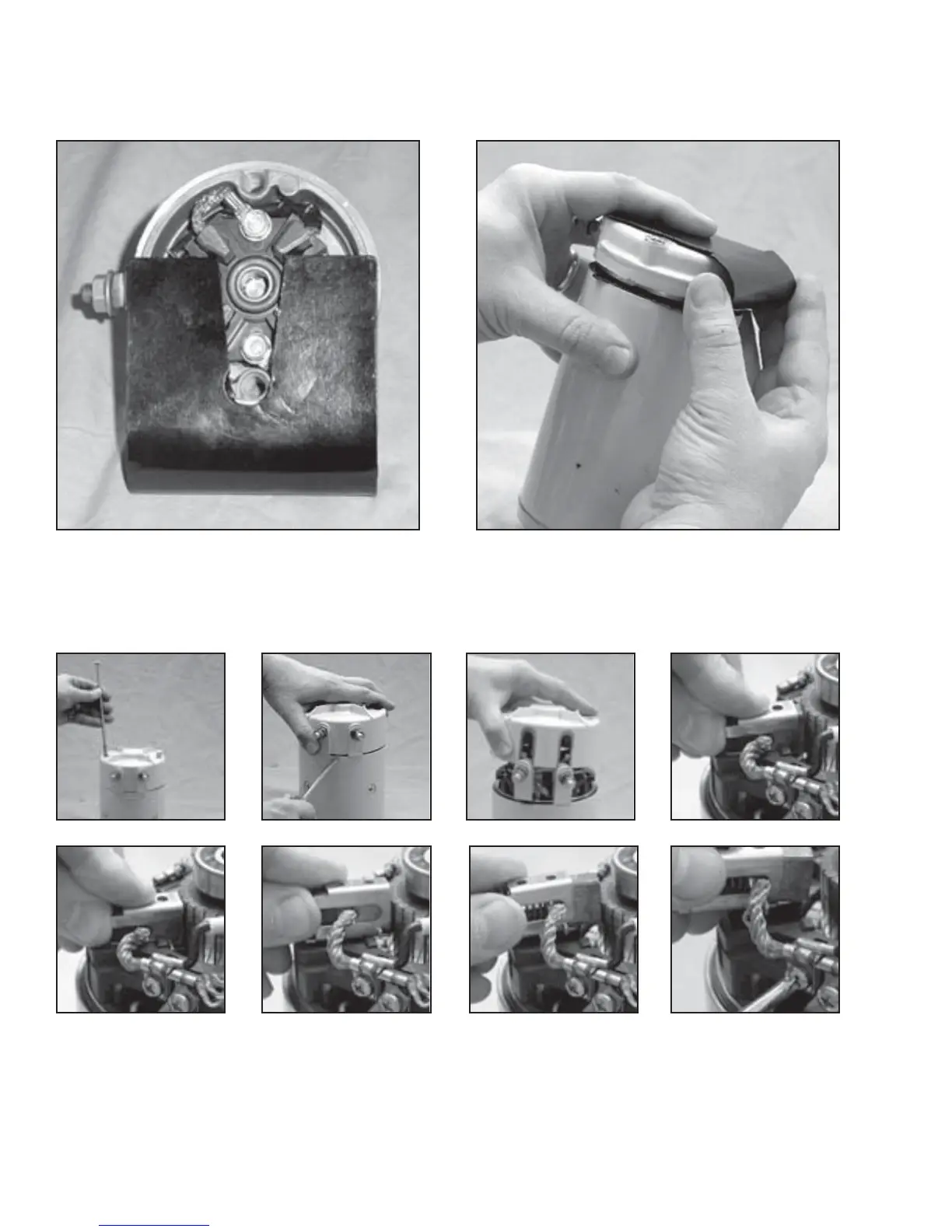

FIGURE 3-64
A special tool figure 3-69 is required to hold brushes in
motor top cap as shown.
FIGURE 3-65
Once top cap is positioned over armature shaft, carefully
slide tool out while pushing down on cap.
FIGURE 3-66
Remove motor from hydraulic unit. Remove top cap from motor housing. To replace brushes (part # 15854) start by
pushing each brush assembly towards the commutator. Remove old assembly from the insulated mounting plate,
removing retaining screws. Replace with a new brush assembly by reversing the above procedure. It is recommended
that each brush be changed in turn to avoid confusion, make sure that each brush assembly is replaced with the correct
part that has the brush cable on the the same side. Service Kits consist of 2 matching pairs of brush assemblies.
BRUSH REPLACEMENT OF AMERICAN BOSCH MOTOR
BRUSH REPLACEMENT OF ISKRA MOTOR
-50-
